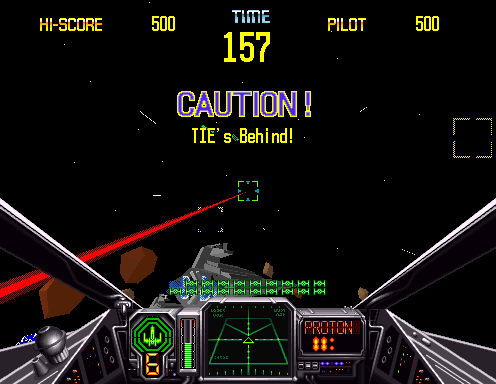

Star Wars Arcade (US) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
swa	sega/model1.cpp		no	no	no	yes	Star Wars Arcade (US)	1993	Sega

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	496	384	57.524160	16000000	656	0	496	424	0	384	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
imperfect	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
opr14742.bin	131072	446a1085	51b3f4d3a35a36087ea0ba4e26d6e7d17b6418e2	copro_tables	0	good	no
opr14743.bin	131072	e8953554	1499f8e30ac15affc66e6f04ae031bb8680d9260	copro_tables	2	good	no
opr-14744.58	131072	730ea9e0	651f1db4089a400d073b19ada299b4b08b08f372	other_data	0	good	no
opr-14745.59	131072	4c934d96	e3349ece0e47f684d61ad11bfea4a90602287350	other_data	2	good	no
opr-14746.62	131072	2a266cbd	34e047a93459406c22acf4c25089d1a4955f94ca	other_data	40000	good	no
opr-14747.63	131072	a4ad5e19	7d7ec300eeb9a8de1590011e37108688c092f329	other_data	40002	good	no
opr14748.bin	131072	4a532cb8	23280ebbcd6b2bc8a8e643a2d07a58d6598301b8	other_other_data	0	good	no
315-5571.bin	8192	1233db2a	06760409d40f3d9117fd3e7c7ab62dfd70aa2a4d	315_5571	0	good	no
315-5572.bin	8192	66785906	d94a51eced65b0073fb39625927782bf264d271a	315_5572	0	good	no
epr-16669.14	524288	52e5e7e4	0eb584299d821a61ed2c27c615356eaeb18b41c6	maincpu	200000	good	no
epr-16670.15	524288	1e7ecabd	62e8dd5d3a053426a1f3d94d15b04621d36d6a2c	maincpu	200001	good	no
epr-16668.5	524288	9e112425	fc7be83b33b586780444e3426164e1cb5125f794	maincpu	f80000	good	no
315-5711.bin	8192	c5ddb8fc	9e21d3a07ffa315e0139483b664e3fa283ef4e06	tgp_copro	0	baddump	no
epr-16470.7	131072	7da18cf7	bd432d882d217277faee120e2577357a32eb4a6e	m1audio:sndcpu	0	good	no
mpr-16486.32	2097152	7df50533	f2fb876738e37d70eb9005e5629a9ae89aa413a8	m1audio:pcm1	0	good	no
mpr-16487.33	2097152	31b28dfa	bd1ac11bf2f9161f61f8af3b9ff4c2709b7ee700	m1audio:pcm1	200000	good	no
mpr-16484.4	2097152	9d4c334d	8b4d903f14559fed425d225bb23ccfe8da23cbd3	m1audio:pcm2	0	good	no
mpr-16485.5	2097152	95aadcad	4276db655db9834692c3843eb96a3e3a89cb7252	m1audio:pcm2	200000	good	no
epr-16471.2	131072	f4ee84a4	f12b214e6f195b0e5f49ba9f41d8e54bfcea9acc	dsbz80:mpegcpu	0	good	no
mpr-16514.57	2097152	3175b0be	63649d053c8c17ce1746d16d0cc8202be20c302f	dsbz80:mpeg	0	good	no
mpr-16515.58	2097152	3114d748	9ef090623cdd2a1d06b5d1bc4b9a07ab4eff5b76	dsbz80:mpeg	200000	good	no
mpr-16476.26	2097152	d48609ae	8c8686a5c9ca4837447a7f70ed194e2f1882b66d	polygons	0	good	no
mpr-16477.27	2097152	b979b082	0c60d259093e987f3856730b57b43bde7e9562e3	polygons	2	good	no
mpr-16478.28	2097152	80c780f7	2f57c5373b02765d302bcd81e24f7b7bc4181387	polygons	400000	good	no
mpr-16479.29	2097152	e43183b3	4e62c67cdf7a6fdac0ded86d5f9e81044b9dea8d	polygons	400002	good	no
mpr-16480.30	2097152	3185547a	9871937372c2c755717802117a3ad39e1a11410e	polygons	800000	good	no
mpr-16481.31	2097152	ce8d76fe	0406f0500d19d6707515627b4143f92a9a5db769	polygons	800002	good	no
mpr-16472.39	524288	5a0d7553	ba8e08e5a0c6b7fbc10084ad7ad3edf61efb0d70	copro_data	0	good	no
mpr-16473.40	524288	876c5399	be7e40c77a385600941f11c24852cd73c71696f0	copro_data	1	good	no
mpr-16474.41	524288	5864a26f	be0c22dfff37408f6b401b1970f7fcc6fc7fbcd2	copro_data	2	good	no
mpr-16475.42	524288	b9266be9	cf195cd89c9d191b9eb8c5299f8cc154c2b4bd82	copro_data	3	good	no

chip

type	tag	name	clock
cpu	maincpu	NEC V60	16000000
cpu	tgp_copro	Fujitsu MB86233 (TGP)	40000000
cpu	ioboard:iocpu	Zilog Z80	4000000
cpu	m1audio:sndcpu	Motorola MC68000	10000000
cpu	dsbz80:mpegcpu	Zilog Z80	4000000
audio	m1audio:speaker	Speaker
audio	m1audio:ymsnd	YM3438 OPN2C	8000000
audio	m1audio:pcm1	Yamaha YMW-258-F	10000000
audio	m1audio:pcm2	Yamaha YMW-258-F	10000000
audio	dleft	Speaker
audio	dright	Speaker
audio	dsbz80	Sega Z80-based Digital Sound Board

device_ref

name
v60
nvram
generic_fifo_u32_device
generic_fifo_u32_device
timer
mb86233
segas24_tile
screen
palette
model1io
z80
93c46_16
315_5338a
msm6253
mb8421
segam1audio
m68000
speaker
ym3438
ymw258f
ymw258f
i8251
clock
i8251
clock
speaker
speaker
dsbz80_device
z80
i8251
clock

sound

channels
3

feature

type	status	overall
graphics	imperfect
sound		imperfect
controls	imperfect

input

players	coins	service	tilt
2	2	yes	no

control

type	player	buttons	reverse	minimum	maximum	sensitivity	keydelta
stick	1	3	yes	27	227	100	4
pedal	1		yes	28	200	100	16
stick	2	2	yes	27	227	100	4

port, analog

port_tag	analog_masks
:IN.0
:IN.1
:IN.2
:STICK1X	255
:STICK1Y	255
:STICK2X	255
:STICK2Y	255
:THROTTLE	255
:ioboard:buttons
:ioboard:dsw1
:ioboard:dsw2
:ioboard:dsw3

dipswitch

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	ioboard:dsw1	1

location

name	number	inverted
DSW1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	ioboard:dsw1	2

location

name	number	inverted
DSW1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	ioboard:dsw1	4

location

name	number	inverted
DSW1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	ioboard:dsw1	8

location

name	number	inverted
DSW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	ioboard:dsw1	16

location

name	number	inverted
DSW1	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	ioboard:dsw1	32

location

name	number	inverted
DSW1	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	ioboard:dsw1	64

location

name	number	inverted
DSW1	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	ioboard:dsw1	128

location

name	number	inverted
DSW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	ioboard:dsw2	1

location

name	number	inverted
DSW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	ioboard:dsw2	2

location

name	number	inverted
DSW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	ioboard:dsw2	4

location

name	number	inverted
DSW2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	ioboard:dsw2	8

location

name	number	inverted
DSW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	ioboard:dsw2	16

location

name	number	inverted
DSW2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	ioboard:dsw2	32

location

name	number	inverted
DSW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	ioboard:dsw2	64

location

name	number	inverted
DSW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	ioboard:dsw2	128

location

name	number	inverted
DSW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	ioboard:dsw3	1

location

name	number	inverted
DSW3	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	ioboard:dsw3	2

location

name	number	inverted
DSW3	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	ioboard:dsw3	4

location

name	number	inverted
DSW3	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	ioboard:dsw3	8

location

name	number	inverted
DSW3	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	ioboard:dsw3	16

location

name	number	inverted
DSW3	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	ioboard:dsw3	32

location

name	number	inverted
DSW3	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	ioboard:dsw3	64

location

name	number	inverted
DSW3	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	ioboard:dsw3	128

location

name	number	inverted
DSW3	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no
