name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
swrds_l1	pinball/s11b.cpp	genpin	no	no	yes	yes	Swords of Fury (L-1)	1988	Williams	swrds_l2	swrds_l2

snap

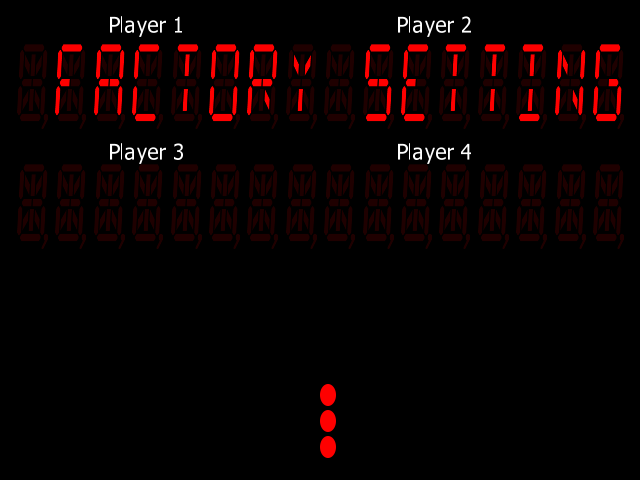

Swords of Fury (L-1) png snap

Swords of Fury (L-1) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
swrds_l1	13769	23/03/2026 16:24:15	640	480	96	96	0	Format24bppRgb	305:MAME 0.286 (mame0286)	eea6b9878687fdd10a862970dbc496c7e681e94a

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
swrd_u26.l1	16384	e7a54874	9f3486a0eed32ab0919805bed771ffd214a78967	maincpu	4000	good	no
swrd_u27.l1	32768	885dc3d6	26463efb476c0bbfc3cb49b450167c4a985672bf	maincpu	8000	good	no
swrd_u21.l1	32768	ee8b0a64	c2c52059a9a5f7c0abcfdd76cfc6d5b5451f7d1e	audiocpu	8000	good	no	swrd_u21.l1
swrd_u22.l1	32768	73dcdbb0	66f5b3804442a1742b6fb3cccf539c4df956b3f2	audiocpu	0	good	no	swrd_u22.l1
swrd_u4.l1	32768	272b509c	756d3783f664ca1c41dd1d12032330b74c3f89ea	bg:cpu	0	good	no	swrd_u4.l1
swrd_u19.l1	32768	a22f84fa	1731e86e85cca2d283512d5048c787df3970c9c5	bg:cpu	20000	good	no	swrd_u19.l1

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6808	4000000
cpu	audiocpu	Motorola MC6802	4000000
cpu	bg:cpu	Motorola MC6809E	2000000
audio	mechvol	Speaker
audio	samples	Samples
audio	dac	MC1408 DAC
audio	cvsd_filter2	Biquad Filter
audio	cvsd_filter	Biquad Filter
audio	hc55516	HC-55516
audio	bg	Williams System 11 Background Audio Board
audio	bg:dac	MC1408 DAC
audio	bg:ym2151	YM2151 OPM	3579545
audio	bg:cvsd_filter2	Biquad Filter
audio	bg:cvsd_filter	Biquad Filter
audio	bg:hc55516	HC-55516
audio	speaker	Speaker

device_ref

tag	name
:maincpu	m6808
:mainirq	ipt_merge_any_hi
:piairq	ipt_merge_any_hi
:mechvol	speaker
:samples	samples
:pia21	pia6821
:pia24	pia6821
:pia28	pia6821
:pia2c	pia6821
:pia30	pia6821
:pia34	pia6821
:nvram	nvram
:audiocpu	m6802
:audioirq	ipt_merge_any_hi
:dac	mc1408
:cvsd_filter2	filter_biquad
:cvsd_filter	filter_biquad
:hc55516	hc55516
:pias	pia6821
:bg	s11_bg
:bg:cpu	mc6809e
:bg:dac	mc1408
:bg:pia40	pia6821
:bg:ym2151	ym2151
:bg:cvsd_filter2	filter_biquad
:bg:cvsd_filter	filter_biquad
:bg:hc55516	hc55516
:speaker	speaker

sample

name
bumper
chime1
chime2
chime3
chime4
hole
knocker
sling
coinin
outhole
kickback
drop_target_reset
coil_coinlockout_engage
coil_coinlockout_release
relay_engage
relay_release
solenoid_engage
solenoid_release

sound

channels
2

input

players	coins	service	tilt
1	3	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		64		no

port, analog

port_tag	analog_masks
:DIAGS
:X0
:X1
:X2
:X3
:X4
:X5
:X6
:X7

configuration

Language

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Language	DIAGS	16

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
German	0	no
English	16	yes
