Star Wars Trilogy (CPU 4.01, display A4.00) - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
swtril41	pinball/whitestar.cpp	genpin	no	no	yes	yes	Star Wars Trilogy (CPU 4.01, display A4.00)	1997	Sega	swtril43	swtril43

snap

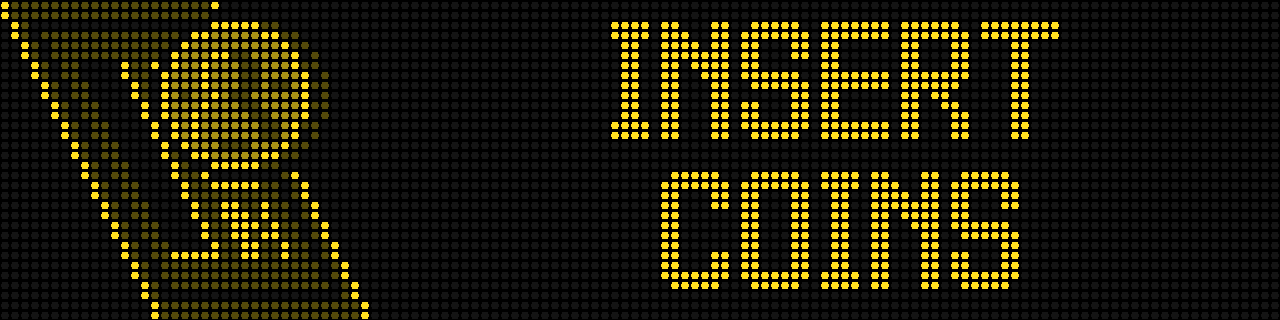

Star Wars Trilogy (CPU 4.01, display A4.00) png snap

Star Wars Trilogy (CPU 4.01, display A4.00) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
swtril41	10331	29/12/2025 11:31:46	1280	320	96	96	0	Format24bppRgb	305:MAME 0.145u7 (Apr 22 2012)	788d24de1a11a591f00470387bf1fa751dcb021e

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
decodmd:dmd	raster	0	128	32	60.000000	245760	128	0	128	32	0	32	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	yes	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
swcpu.401	131072	707dce87	45fc3ffe646e5be72af9f7f00990ee5f85338f34	maincpu	0	good	no
swsedspa.400	524288	b9bcbf71	036f53e638699de0447ecd02221f673a40f656be	decodmd	0	good	no	swsedspa.400
sw0219.u7	65536	cd7c84d9	55b0208089933e4a30f0eb87b123dd178383ed43	decobsmt:soundcpu	0	good	no	sw0219.u7
sw0211.u17	524288	6863e7f6	99f1e0170fbbb91a0eb7a796ab3bf757cb1b23ce	decobsmt:bsmt	0	good	no	sw0211.u17
sw0211.u21	524288	6be68450	d24652f74b109e47eb5d3d02e04f63c99e92c590	decobsmt:bsmt	80000	good	no	sw0211.u21
16v8d.u213	279	942d99fd	db33b16e582c6762ac6843a3613edb733cbeb499	plds	0	baddump	no	16v8d.u213

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6809E	2000000
cpu	decobsmt:soundcpu	Motorola MC6809E	2000000
cpu	decobsmt:bsmt:bsmt2000	Texas Instruments TMS320C15	24000000
cpu	decodmd:dmdcpu	Motorola MC6809E	2000000
audio	mechvol	Speaker
audio	samples	Samples
audio	speaker	Speaker
audio	decobsmt	Data East/Sega/Stern BSMT2000 Sound Board
audio	decobsmt:bsmt	BSMT2000	24000000

device_ref

tag	name
:maincpu	mc6809e
:nvram	nvram
:mechvol	speaker
:samples	samples
:speaker	speaker
:decobsmt	decobsmt
:decobsmt:soundcpu	mc6809e
:decobsmt:bsmt	bsmt2000
:decobsmt:bsmt:bsmt2000	tms320c15
:decodmd	decodmd2
:decodmd:dmdcpu	mc6809e
:decodmd:firq_timer	timer
:decodmd:dmd6845	mc6845
:decodmd:dmd	screen
