Strike Zone (Shuffle) (L-2) - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
szone_l2	pinball/wms_shuffle.cpp	genpin	no	no	yes	yes	Strike Zone (Shuffle) (L-2)	1984	Williams/United	szone_l5	szone_l5

snap

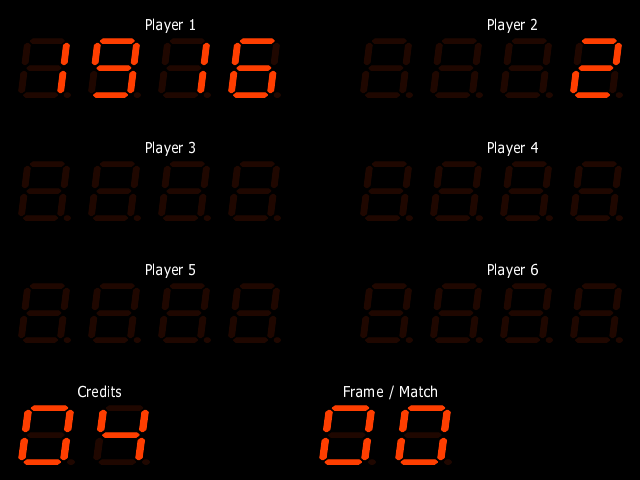

Strike Zone (Shuffle) (L-2) png snap

Strike Zone (Shuffle) (L-2) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
szone_l2	14268	22/03/2026 17:54:10	640	480	96	96	0	Format24bppRgb	305:MAME 0.286 (mame0286)	341f25dfb58bee7d62c430793db95c5164844708

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
sz_u19r2.732	4096	c0e4238b	eae60ccd5b5001671cd6d2685fd588494d052d1e	maincpu	1000	good	no
sz_u20r2.764	8192	91c08137	86da08f346f85810fceceaa7b9824ab76a68da54	maincpu	2000	good	no
szs_u49.128	16384	144c3c07	57be6f336f200079cd698b13f8fa4755cf694274	s9sound:audiocpu	4000	good	no	szs_u49.128

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6802	4000000
cpu	s9sound:cpu	Motorola MC6802	4000000
audio	mechvol	Speaker
audio	samples	Samples
audio	mono	Speaker
audio	s9sound	Williams System 9 Sound Board
audio	s9sound:dac	MC1408 DAC
audio	s9sound:hc	HC-55516

device_ref

tag	name
:maincpu	m6802
:mechvol	speaker
:samples	samples
:pia24	pia6821
:pia28	pia6821
:pia30	pia6821
:nvram	nvram
:mainirq	ipt_merge_any_hi
:4020	ripple_counter
:rclock	clock
:mono	speaker
:pia21	pia6821
:s9sound	wmss9
:s9sound:cpu	m6802
:s9sound:dac	mc1408
:s9sound:hc	hc55516
:s9sound:pia	pia6821

sample

name
bumper
chime1
chime2
chime3
chime4
hole
knocker
sling
coinin
outhole
kickback
drop_target_reset
coil_coinlockout_engage
coil_coinlockout_release
relay_engage
relay_release
solenoid_engage
solenoid_release

sound

channels
2

input

players	coins	service	tilt
2	3	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad	1	36		no
keypad	2	1		no

port, analog

port_tag	analog_masks
:DIAGS
:DS1
:DS2
:X0
:X1
:X2
:X3
:X4
:X5
:X6
:X7
:s9sound:S9

dipswitch

Data tens

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Data tens	DS1	15

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
0	15	yes
1	7	no
2	11	no
3	3	no
4	13	no
5	5	no
6	9	no
7	1	no
8	14	no
9	6	no

Data units

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Data units	DS1	240

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
0	240	yes
1	112	no
2	176	no
3	48	no
4	208	no
5	80	no
6	144	no
7	16	no
8	224	no
9	96	no

Function

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Function	DS2	255

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
0	255	yes
1	127	no
2	191	no
3	63	no
4	223	no
5	95	no
6	159	no
7	31	no
8	239	no
9	111	no
10	175	no
11	47	no
12	207	no
13	79	no
14	143	no
15	15	no
16	247	no
17	119	no
18	183	no
19	55	no
20	215	no
21	87	no
22	151	no
23	23	no
24	231	no
25	103	no
26	167	no
27	39	no
28	199	no
29	71	no
30	135	no
31	7	no
