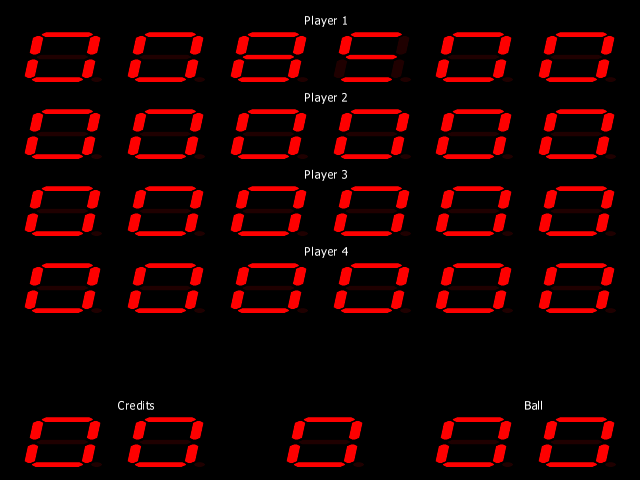

Taito Test Fixture - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
taitest	pinball/taito.cpp	genpin	no	no	yes	yes	Taito Test Fixture	198?	Taito do Brasil

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	yes	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
ttest1.bin	2048	a9729e2f	2c13bc9d6eab2101316fa795a18d5c5afac936d8	maincpu	0	good	no

chip

type	tag	name	clock
cpu	audiocpu	Motorola MC6802	1000000
cpu	maincpu	Intel 8080	2111111
audio	mechvol	Speaker
audio	samples	Samples
audio	speaker	Speaker
audio	dac	8-Bit R-2R DAC

device_ref

name
m6802
speaker
samples
speaker
dac_8bit_r2r
pia6821
i8080

sample

name
bumper
chime1
chime2
chime3
chime4
hole
knocker
sling
coinin
outhole
kickback
drop_target_reset
coil_coinlockout_engage
coil_coinlockout_release
relay_engage
relay_release
solenoid_engage
solenoid_release

sound

channels
2

feature

type	status	overall
sound	unemulated

input

players	coins	service	tilt
1	2	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
keypad		44		no

port, analog

port_tag	analog_masks
:X0
:X1
:X2
:X3
:X4
:X5
:X6
:X7

dipswitch

Service

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service	X0	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	no
Off	16	yes

Code D0

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Code D0	X6	1

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	no
Off	1	yes

Code D1

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Code D1	X6	2

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	no
Off	2	yes

Code D2

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Code D2	X6	4

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	no
Off	4	yes

Code D3

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Code D3	X6	8

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	no
Off	8	yes

Code D4

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Code D4	X6	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	no
Off	16	yes

Code D5

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Code D5	X6	32

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	no
Off	32	yes

Code D6

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Code D6	X6	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	no
Off	64	yes

Code D7

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Code D7	X6	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	no
Off	128	yes

Diagnose

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Diagnose	X7	1

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	no
Off	1	yes

Statistics

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Statistics	X7	2

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	no
Off	2	yes

Adjust

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Adjust	X7	4

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	no
Off	4	yes

Conform

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Conform	X7	8

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	no
Off	8	yes

Enter

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Enter	X7	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	no
Off	16	yes

Sem

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Sem	X7	32

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	no
Off	32	yes
