Tap a Tune - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
tapatune	misc/tapatune.cpp		no	no	no	yes	Tap a Tune	1994	Moloney Manufacturing Inc. / Creative Electronics and Software

snap

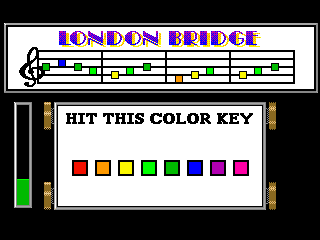

Tap a Tune png snap

Tap a Tune jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
tapatune	3556	29/12/2025 11:31:46	320	240	96	96	0	Format24bppRgb	305:MAME 0.143u1 (Jul 11 2011)	c46f6a52cf7fe28beaed21904b2acbc7cd5af20f

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	320	240	60.000000	7500000	500	0	320	250	0	240	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
rom1.u12	524288	1d3ed3f9	a42997dffcd4a3e83a5cec75d5bb0c295bd18a8d	videocpu	0	good	no
rom0.u3	524288	d76e5dec	11b5fa6019e8b891550d37667aa156b113266b9b	videocpu	1	good	no
rom3.u13	524288	798e004a	8e40ea7bf6e9a67d1c182c3b132a71d1334e1ae8	videocpu	100000	good	no
rom2.u4	524288	3f073ff7	6c34103c49c6c04dad51415037fa9a0c63d98cc2	videocpu	100001	good	no
rom5.u14	262144	5d3b8765	049a115eb28554cc3f5ca813441c42d6b834fc6f	videocpu	280000	good	no
rom4.u5	262144	2a2eda6a	ce86f0da2a41e23a842b3aa1659aad4817de333f	videocpu	280001	good	no
rom.u8	65536	f5c571d7	cb5ef3b2bce9a579b54678962082d0e2fc0f1cd9	maincpu	0	good	no
arom1.u16	524288	e51696bc	b002f8705ad1877f91a860dddb0ae16b2e73dd15	bsmt	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	6000000
cpu	bsmt:bsmt2000	Texas Instruments TMS320C15	24000000
cpu	videocpu	Motorola MC68000	12000000
audio	speaker	Speaker
audio	bsmt	BSMT2000	24000000

device_ref

tag	name
:maincpu	z80
:nvram	nvram
:ticket	ticket_dispenser
:speaker	speaker
:bsmt	bsmt2000
:bsmt:bsmt2000	tms320c15
:videocpu	m68000
:crtc	hd6845s
:screen	screen

sound

channels
1

input

players	coins	service	tilt
1	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
only_buttons		8		no

port, analog

port_tag	analog_masks
:BUTTONS
:COINS
:IN0
:SW4
:SW5
:ticket:TEST

dipswitch

Dispense

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Dispense	SW4	1

location

name	number	inverted
SW4	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Tickets	1	yes
Capsules	0	no

Award per

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Award per	SW4	2

location

name	number	inverted
SW4	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Game	2	yes
Tune	0	no

Tickets/capsules per game/tune

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Tickets/capsules per game/tune	SW4	28

location

name	number	inverted
SW4	3	no
SW4	4	no
SW4	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Disabled	28	yes
1	24	no
2	20	no
3	16	no
4	12	no
5	8	no
6	4	no
7	0	no

Tune bonus tickets/capsules

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Tune bonus tickets/capsules	SW4	96

location

name	number	inverted
SW4	6	no
SW4	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Disabled	96	yes
1	64	no
3	32	no
5	0	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	SW4	128

location

name	number	inverted
SW4	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	no
On	0	yes

Tune Timer

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Tune Timer	SW5	7

location

name	number	inverted
SW5	1	no
SW5	2	no
SW5	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
5 secs	7	no
10 secs	6	no
15 secs	5	no
20 secs	4	no
25 secs	3	yes
30 secs	2	no
35 secs	1	no
40 secs	0	no

Bad note penalty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bad note penalty	SW5	24

location

name	number	inverted
SW5	4	no
SW5	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
0 secs	24	no
1 secs	16	yes
5 secs	8	no
10 secs	0	no

Coins per game

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coins per game	SW5	32

location

name	number	inverted
SW5	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	32	yes
2	0	no

Free Play

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Free Play	SW5	64

location

name	number	inverted
SW5	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Burn in Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Burn in Mode	SW5	128

location

name	number	inverted
SW5	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no
