Tarzan Chuang Tian Guan (China, V109C, set 1) - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
tarzanc	igs/igs017.cpp		no	no	no	yes	Tarzan Chuang Tian Guan (China, V109C, set 1)	1999	IGS

snap

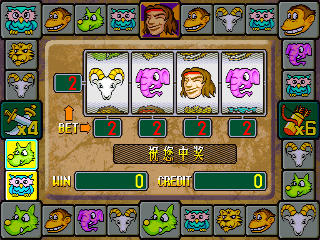

Tarzan Chuang Tian Guan (China, V109C, set 1) png snap

Tarzan Chuang Tian Guan (China, V109C, set 1) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
tarzanc	55615	29/12/2025 11:31:46	320	240	96	96	0	Format24bppRgb	305:MAME 0.272.0 (Nov 27 2024)	49913f6b524e127ab32fb41e782fa4fd827f46ff

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	512	240	60.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
u19	262144	e6c552a5	f156de9459833474c85a1f5b35917881b390d34c	maincpu	0	good	no
igs_a2104_cg_v110.u15	4194304	dcbff16f	2bf77ef4448c26124c8d8d18bb7ffe4105cfa940	igs017_igs031:sprites	0	good	no
igs_t2105_cg_v110.u5	524288	1d4be260	6374c61735144b3ff54d5e490f26adac4a10b14d	igs017_igs031:tilemaps	0	good	no
igs_s2102_sp_v102.u14	524288	90dda82d	67fbc1e8d76b85e124136e2f1df09c8b6c5a8f97	oki	0	good	no
eg.u20	733			plds	0	nodump	no
eg.u21	733			plds	2dd	nodump	no
tarzan_string.key	236	595fe40c	0b46983400d237d8bde97a72eaa99b718a03387e	igs_string	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Hitachi HD64180RP	16000000
audio	mono	Speaker
audio	oki	OKI MSM6295 ADPCM	1000000
audio	ymsnd	YM2413 OPLL	3579545

device_ref

tag	name
:igs_mux	igs_mux
:ppi8255	i8255
:screen	screen
:igs017_igs031	igs017_031
:igs017_igs031:palette	palette
:mono	speaker
:oki	okim6295
:maincpu	hd64180rp
:maincpu:asci_0	z180asci_channel_0
:maincpu:asci_1	z180asci_channel_1
:maincpu:csio	z180csio
:scantimer	timer
:nvram	nvram
:hopper	coin_hopper
:igs_string	igs_string
:igs_incdec	igs_incdec
:ymsnd	ym2413

sound

channels
1

feature

type	status	overall
protection	imperfect

input

players	coins	service	tilt
1	1	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
mahjong		20		no
gambling		11		no

port, analog

port_tag	analog_masks
:COINS
:DSW1
:DSW2
:DSW3
:KEY0
:KEY1
:KEY2
:KEY3
:KEY4
:MATRIX
:hopper:TEST

dipswitch

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW1	1

location

name	number	inverted
SW1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	no
On	0	yes

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	DSW1	14

location

name	number	inverted
SW1	2	no
SW1	3	no
SW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Coin/1 Credit	14	yes
1 Coin/2 Credits	12	no
1 Coin/4 Credits	10	no
1 Coin/5 Credits	8	no
1 Coin/10 Credits	6	no
1 Coin/20 Credits	4	no
1 Coin/50 Credits	2	no
1 Coin/100 Credits	0	no

Key-In Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Key-In Rate	DSW1	48

location

name	number	inverted
SW1	5	no
SW1	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
100	48	yes
200	32	no
500	16	no
1000	0	no

Key-out Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Key-out Rate	DSW1	192

location

name	number	inverted
SW1	7	no
SW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	192	yes
10	128	no
100	64	no
100 (2)	0	no

Credit Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Credit Mode	DSW2	1

location

name	number	inverted
SW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Coin Acceptor	1	yes
Key-In	0	no

Minimum Bet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Minimum Bet	DSW2	14

location

name	number	inverted
SW2	2	no
SW2	3	no
SW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
5	14	yes
25	12	no
50	10	no
75	8	no
100	6	no
125	4	no
125 (2)	2	no
125 (3)	0	no

Bonus Bet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bonus Bet	DSW2	48

location

name	number	inverted
SW2	5	no
SW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
75	48	yes
125	32	no
200	16	no
250	0	no

Double Up Jackpot

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Double Up Jackpot	DSW2	192

location

name	number	inverted
SW2	7	no
SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
50,000	192	yes
100,000	128	no
150,000	64	no
200,000	0	no

Controls

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Controls	DSW3	1

location

name	number	inverted
SW3	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Mahjong	1	yes
Joystick	0	no

Background Color

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Background Color	DSW3	2

location

name	number	inverted
SW3	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Black and White	2	yes
Color	0	no

Hide Credits

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Hide Credits	DSW3	4

location

name	number	inverted
SW3	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

Number Type

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Number Type	DSW3	8

location

name	number	inverted
SW3	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Numbers	8	yes
Circle Tiles	0	no

Double Up Game

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Double Up Game	DSW3	16

location

name	number	inverted
SW3	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

Payout Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Payout Mode	DSW3	32

location

name	number	inverted
SW3	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Return Coins	32	yes
Key-Out	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW3	64

location

name	number	inverted
SW3	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW3	128

location

name	number	inverted
SW3	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

clones

name	description
tarzan103m	Tarzan (V103M)
tarzan106fa	Tarzan (V106FA)
tarzana	Tarzan (V107)
tarzan201fa	Tarzan (V201FA)
tarzan201faa	Tarzan (V201FA, alt encryption)
tarzan202fa	Tarzan (V202FA)
tarzan	Tarzan Chuang Tian Guan (China, V109C, set 2)
tarzanb	Tarzan Chuang Tian Guan (China, V110)
