6130 - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
tek6130	tektronix/tekigw.cpp		no	no	no	yes	6130	1984	Tektronix

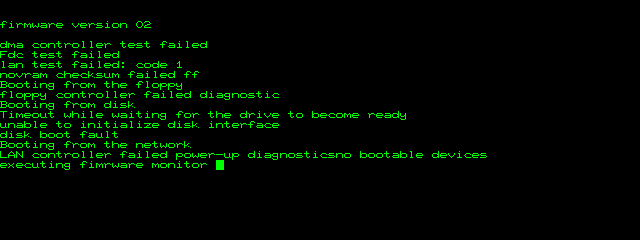

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
port0:terminal:terminal_screen	raster	0	640	240	50.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	yes	no

rom

name	size	crc	sha1	region	offset	status	optional	bios
160-2921-02.bin	16384	44688258	645ceaa6ea9ef76ba8b557dec0387fce73f669c0	kernel	0	good	no	5.107
160-2922-02.bin	16384	5d84dff3	08e74f0157a5c002397b3c8644613dc0ae8355a0	kernel	1	good	no	5.107
pwr_up__5.105__adb_lo.bin	16384	429a6a4a	5ec5a045ec14a1b546d75e9406f0ad21163298f6	kernel	0	good	no	5.105
pwr_up__5.105__adb_hi.bin	16384	1ad7a762	98472c30f1148c43f43d2131ebc9644d8ebf376a	kernel	1	good	no	5.105
l__sdpu__1.73.bin	16384	cd1be127	9c16ab7e8b195e9ae660288b4b26566581a029e5	dpu	0	good	no
h__sdpu__1.73.bin	16384	1adf3130	966f839de0b10aff3ffc6af64d94e4b19ece52c7	dpu	1	good	no
2960-01.bin	4096	5974eaec	362cdfb7be162636429d614807b9066ca8bbab28	dpu_mcu	0	good	no

chip

type	tag	name	clock
cpu	cpu	National Semiconductor NS32016	10000000
audio	port0:terminal:bell	Speaker
audio	port0:terminal:beeper	Beep	2000
audio	fdc:0:525dd:flopsndout	Speaker
audio	fdc:0:525dd:floppysound	Floppy sound	44100

device_ref

name
ns32016
ns32081
ns32082
ns32202
ram
scc8530
z80scc_channel
z80scc_channel
rs232
serial_terminal
screen
generic_keyboard
speaker
beep
rs232
mm58167
x24c44_16
am9516
i82586
wd1770
floppy_connector
floppy_525_dd
speaker
flopsnd
wd1010
harddisk_image
tms9914
ieee488
ieee488_slot

biosset

name	description	default
5.107	5.107 85/02/20 13:51:51	no
5.105	5.105 85/02/16 11:03:32	no

sound

channels
2

ramoption

name	default
1M	yes

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
floppydisk	fdc:0:525dd	floppy_5_25			floppydisk	flop
harddisk	hdc:0				harddisk	hard

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
floppydisk	fdc:0:525dd	floppy_5_25			mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk
harddisk	hdc:0				chd, hd, hdv, 2mg, hdi

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
keyboard		73		no

port, analog

port_tag	analog_masks
:config
:port0:terminal:RS232_DATABITS
:port0:terminal:RS232_PARITY
:port0:terminal:RS232_RXBAUD
:port0:terminal:RS232_STOPBITS
:port0:terminal:RS232_TXBAUD
:port0:terminal:TERM_CONF
:port0:terminal:keyboard:GENKBD_CFG
:port0:terminal:keyboard:GENKBD_MOD
:port0:terminal:keyboard:GENKBD_ROW0
:port0:terminal:keyboard:GENKBD_ROW1
:port0:terminal:keyboard:GENKBD_ROW2
:port0:terminal:keyboard:GENKBD_ROW3

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
port0	terminal	serial_terminal	yes
port0	sunkbd	sunkbd_adaptor	no
port0	dec_loopback	dec_rs232_loopback	no
port0	ie15	ie15_terminal	no
port0	null_modem	null_modem	no
port0	keyboard	serial_keyboard	no
port0	patch	rs232_patch_box	no
port0	swtpc8212	swtpc8212_terminal	no
port0	printer	serial_printer	no
port0	scorpion	scorpion_ic	no
port0	loopback	rs232_loopback	no
port0	mockingboard	mockingboardd	no
port0	msystems_mouse	rs232_mouse_hle_msystems	no
port0	nss_tvi	nss_tvinterface	no
port0	rs232_sync_io	rs232_sync_io	no
port0	pty	pseudo_terminal	no
port0	votraxtnt	serial_votraxtnt	no
port0	rs_printer	rs_serial_printer	no
port1	terminal	serial_terminal	no
port1	sunkbd	sunkbd_adaptor	no
port1	dec_loopback	dec_rs232_loopback	no
port1	ie15	ie15_terminal	no
port1	null_modem	null_modem	no
port1	keyboard	serial_keyboard	no
port1	patch	rs232_patch_box	no
port1	swtpc8212	swtpc8212_terminal	no
port1	printer	serial_printer	no
port1	scorpion	scorpion_ic	no
port1	loopback	rs232_loopback	no
port1	mockingboard	mockingboardd	no
port1	msystems_mouse	rs232_mouse_hle_msystems	no
port1	nss_tvi	nss_tvinterface	no
port1	rs232_sync_io	rs232_sync_io	no
port1	pty	pseudo_terminal	no
port1	votraxtnt	serial_votraxtnt	no
port1	rs_printer	rs_serial_printer	no
fdc:0	525dd	floppy_525_dd	yes
ieee_rem	remote488	remote488	no

configuration

Data Bits

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Data Bits	port0:terminal:RS232_DATABITS	255

setting

name	value	default
5	0	no
6	1	no
7	2	no
8	3	yes

Parity

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Parity	port0:terminal:RS232_PARITY	255

setting

name	value	default
None	0	yes
Odd	1	no
Even	2	no
Mark	3	no
Space	4	no

RX Baud

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
RX Baud	port0:terminal:RS232_RXBAUD	255

setting

name	value	default
50	14	no
75	15	no
110	0	no
134.5	16	no
150	1	no
200	17	no
300	2	no
600	3	no
1200	4	no
1800	18	no
2000	19	no
2400	5	no
3600	20	no
4800	6	no
7200	21	no
9600	7	yes
14400	8	no
19200	9	no
28800	10	no
38400	11	no
57600	12	no
111900	22	no
115200	13	no

Stop Bits

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Stop Bits	port0:terminal:RS232_STOPBITS	255

setting

name	value	default
0	0	no
1	1	yes
1.5	2	no
2	3	no

TX Baud

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
TX Baud	port0:terminal:RS232_TXBAUD	255

setting

name	value	default
50	14	no
75	15	no
110	0	no
134.5	16	no
150	1	no
200	17	no
300	2	no
600	3	no
1200	4	no
1800	18	no
2000	19	no
2400	5	no
3600	20	no
4800	6	no
7200	21	no
9600	7	yes
14400	8	no
19200	9	no
28800	10	no
38400	11	no
57600	12	no
111900	22	no
115200	13	no

Cursor

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Cursor	port0:terminal:TERM_CONF	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	1	yes

Type

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Type	port0:terminal:TERM_CONF	2

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Underline	0	no
Block	2	yes

Blinking

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Blinking	port0:terminal:TERM_CONF	4

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	4	yes

Invert

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Invert	port0:terminal:TERM_CONF	8

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	8	yes

Color

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Color	port0:terminal:TERM_CONF	48

setting

name	value	default
Green	0	yes
Amber	16	no
White	32	no

Auto CR on LF

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Auto CR on LF	port0:terminal:TERM_CONF	64

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	64	yes

Auto LF on CR

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Auto LF on CR	port0:terminal:TERM_CONF	128

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	128	no

Local echo

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Local echo	port0:terminal:TERM_CONF	256

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	256	no

Layout

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Layout	port0:terminal:keyboard:GENKBD_CFG	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
ANSI	0	yes
JIS	1	no

Typematic Delay

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Typematic Delay	port0:terminal:keyboard:GENKBD_CFG	6

setting

name	value	default
0.25s	0	no
0.5s	2	no
0.75s	4	yes
1.0s	6	no

Typematic Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Typematic Rate	port0:terminal:keyboard:GENKBD_CFG	248

setting

name	value	default
2.0cps	0	no
2.1cps	8	no
2.5cps	16	no
2.7cps	24	no
2.0cps	32	no
2.1cps	40	no
2.5cps	48	no
2.7cps	56	no
3.3cps	64	no
3.8cps	72	no
4.0cps	80	no
4.3cps	88	no
4.6cps	96	no
5.0cps	104	no
5.5cps	112	no
6.0cps	120	no
8.0cps	128	no
8.6cps	136	no
9.2cps	144	no
10.0cps	152	yes
10.9cps	160	no
12.0cps	168	no
13.3cps	176	no
15.0cps	184	no
16.0cps	192	no
17.1cps	200	no
18.5cps	208	no
20.0cps	216	no
21.8cps	224	no
24.0cps	232	no
26.7cps	240	no
30.0cps	248	no

dipswitch

Diagnostic

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Diagnostic	config	3

location

name	number	inverted
SW	8	no
SW	7	no

value

name	value	default
0	0	yes
1	1	no
2	2	no
3	3	no

Boot Device

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Boot Device	config	12

location

name	number	inverted
SW	6	no
SW	5	no

value

name	value	default
Autoboot	0	yes
Hard disk	4	no
Diskette drive	8	no
LAN port	12	no

Boot

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Boot	config	16

location

name	number	inverted
SW	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
UTek	0	yes
File	16	no

Console

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Console	config	96

location

name	number	inverted
SW	3	no
SW	2	no

value

name	value	default
Display	0	no
9600 baud RS-232-C terminal (port 0)	32	yes
1200 baud RS-232-C modem/terminal (port 1)	64	no
300 baud model/terminal (port 1)	96	no

Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Mode	config	128

location

name	number	inverted
SW	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Normal	0	yes
Service	128	no
