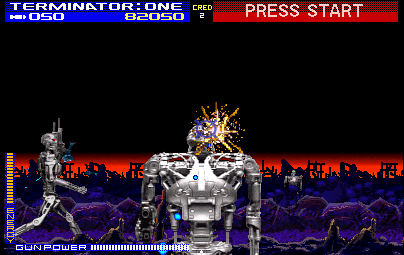

Terminator 2 - Judgment Day (rev LA4 08/03/92) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
term2	midway/midyunit.cpp		no	no	no	yes	Terminator 2 - Judgment Day (rev LA4 08/03/92)	1991	Midway

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	410	256	54.706840	8000000	506	90	500	289	20	276	yes

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
sl1_terminator_2_u3_sound_rom.u3	131072	73c3f5c4	978dd974590e77294dbe9a647aebd3d24af6397f	adpcm:cpu	10000	good	no
sl1_terminator_2_u12_sound_rom.u12	262144	e192a40d	1f7a0e282c0c8eb66cbe514128bd104433e53b7a	adpcm:oki	0	good	no
sl1_terminator_2_u13_sound_rom.u13	262144	956fa80b	02ab504627f4b25a394fa4192bb134138cbf6a4f	adpcm:oki	80000	good	no
la4_terminator_2_game_rom_u105.u105	524288	d4d8d884	3209e131b128f12af30b3c6056fd63df497f93eb	maindata	0	good	no
la4_terminator_2_game_rom_u89.u89	524288	25359415	ca8b7e1b5a363b78499f92c979a11ace6f1dceab	maindata	1	good	no
la1_terminator_2_game_rom_u111.u111	524288	916d0197	3b53d3770955b10cc6002e3d3bf0f71429667af0	gfx	0	good	no
la1_terminator_2_game_rom_u112.u112	524288	39ae1c87	a9d332dffc77c1e0dc50549825f5b403cf19c41d	gfx	80000	good	no
la1_terminator_2_game_rom_u113.u113	524288	cb5084e5	58cab00d8ebc72792f6c29899013ae6a0d2278b9	gfx	100000	good	no
la1_terminator_2_game_rom_u114.u114	524288	53c516ec	2a33639bc5bb4e7f7b3e341ddb59173260461d20	gfx	180000	good	no
la1_terminator_2_game_rom_u95.u95	524288	dd39cf73	53bb54e66e4dfbe58385915004b0ad57583a7543	gfx	200000	good	no
la1_terminator_2_game_rom_u96.u96	524288	31f4fd36	766fca7d5e5043fc9e68bd3dc15e6a7830279d88	gfx	280000	good	no
la1_terminator_2_game_rom_u97.u97	524288	7f72e775	7e2369c6b4ed5d653700b041df58355a0960193a	gfx	300000	good	no
la1_terminator_2_game_rom_u98.u98	524288	1a20ce29	9089b7f77da5d67ad46ed249d72de8b8e0e5d807	gfx	380000	good	no
la1_terminator_2_game_rom_u106.u106	524288	f08a9536	fbac314bd52f23c7a704acd3c707e75cdf204c07	gfx	400000	good	no
la1_terminator_2_game_rom_u107.u107	524288	268d4035	89a310830be9fbc91794fcccc57053d0933c42a3	gfx	480000	good	no
la1_terminator_2_game_rom_u108.u108	524288	379fdaed	408df6702c8ea8d3dce0b231955c6a60f3f5f22b	gfx	500000	good	no
la1_terminator_2_game_rom_u109.u109	524288	306a9366	b94c23c033221f7f7fddd2911b8cec9549929768	gfx	580000	good	no

chip

type	tag	name	clock
cpu	maincpu	Texas Instruments TMS34010	50000000
cpu	adpcm:cpu	Motorola MC6809E	2000000
audio	speaker	Speaker
audio	adpcm	Williams ADPCM Sound Board
audio	adpcm:ym2151	YM2151 OPM	3579545
audio	adpcm:dac	AD7524 DAC
audio	adpcm:oki	OKI MSM6295 ADPCM	1000000

device_ref

name
tms34010
nvram
palette
screen
speaker
wmsadpcm
mc6809e
ym2151
ad7524
okim6295
adc0844

sound

channels
1

input

players	coins	service	tilt
2	4	no	yes

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
stick	1	2		yes	0	255	20	10
stick	2	2		yes	0	255	20	10

port, analog

port_tag	analog_masks
:DSW
:IN0
:IN1
:STICK0_X	255
:STICK0_Y	255
:STICK1_X	255
:STICK1_Y	255
:UNK0
:UNK1

dipswitch

Credits

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Credits	DSW	7

location

name	number	inverted
DS1	8	no
DS1	7	no
DS1	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
2 Start/1 Continue	7	no
4 Start/1 Continue	6	no
2 Start/2 Continue	5	no
4 Start/2 Continue	4	no
1 Start/1 Continue	3	yes
3 Start/2 Continue	2	no
3 Start/1 Continue	1	no
3 Start/3 Continue	0	no

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	DSW	56

location

name	number	inverted
DS1	5	no
DS1	4	no
DS1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	56	yes
2	24	no
3	40	no
4	8	no
ECA	48	no
Free Play	0	no

Coinage Source

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage Source	DSW	64

location

name	number	inverted
DS1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
CMOS	0	no
Dipswitch	64	yes

Display

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Display	DSW	128

location

name	number	inverted
DS1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Normal	128	yes
Mirrored	0	no

Test Switch

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Test Switch	DSW	256

location

name	number	inverted
DS2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	256	yes
On	0	no

Video Freeze

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Video Freeze	DSW	512

location

name	number	inverted
DS2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	512	yes
On	0	no

Cabinet?

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Cabinet?	DSW	1024

location

name	number	inverted
DS2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Dedicated	1024	yes
Kit	0	no

Players

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Players	DSW	2048

location

name	number	inverted
DS2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
2 Players	2048	yes
1 Player	0	no

Counters

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Counters	DSW	4096

location

name	number	inverted
DS2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
One	4096	yes
Two	0	no

Power-Up Test

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Power-Up Test	DSW	8192

location

name	number	inverted
DS2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	8192	no

Country

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Country	DSW	49152

location

name	number	inverted
DS2	2	no
DS2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
USA	49152	yes
French	32768	no
German	16384	no
Unused	0	no

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	IN1	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no
