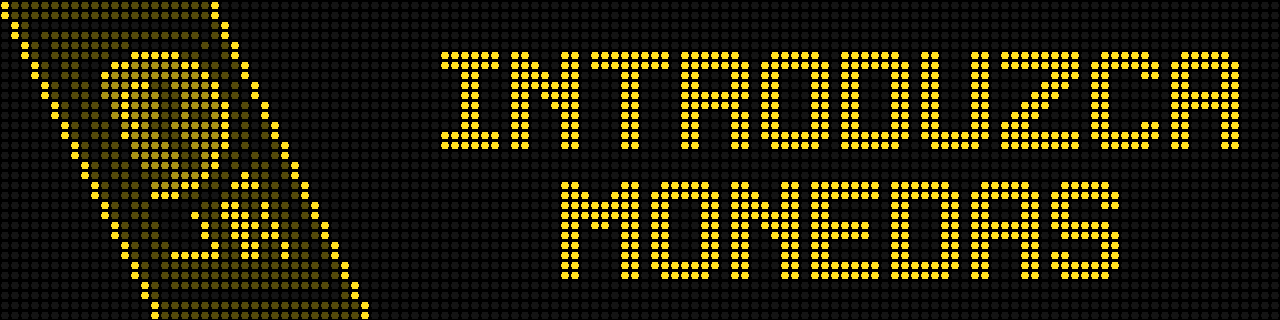

Terminator 3: Rise of the Machines (CPU 2.05, display L2.01, Spain) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
term3l_205	pinball/whitestar.cpp	genpin	no	no	yes	yes	Terminator 3: Rise of the Machines (CPU 2.05, display L2.01, Spain)	2003	Stern	term3	term3

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
decodmd:dmd	raster	0	128	32	60.000000	245760	128	0	128	32	0	32	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	yes	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
t3cpu.205	131072	219d8155	dac3c390d238872703a0ec65cb3dddc89630359c	maincpu	0	good	no
t3displ.201	524288	180b55a2	1d8161fc806804e0712ee8a07a2cac0561949f0c	decodmd	0	good	no
t3100.u7	65536	7f99e3af	4916c074e2a4c947d1a658300f9f9629da1a8bb8	decobsmt:soundcpu	0	good	no	t3100.u7
t3100.u17	1048576	f0c71b5d	e9f726a232fbd4f34b8b07069f337dbb3daf394a	decobsmt:bsmt	0	good	no	t3100.u17
t3100.u21	1048576	694331f7	e9ae8c5db2e59c0f9df923c98f6e75896e150807	decobsmt:bsmt	80000	good	no	t3100.u21
t3100.u36	1048576	9eb512e9	fa2fecf6cb0c1af3c6db244f9d94ba53d13e10fc	decobsmt:bsmt	100000	good	no	t3100.u36
t3100.u37	1048576	3efb0c19	6894295eef05891d64c7274512ba27f2b63ca3ec	decobsmt:bsmt	180000	good	no	t3100.u37
16v8d.u213	279	942d99fd	db33b16e582c6762ac6843a3613edb733cbeb499	plds	0	good	no	16v8d.u213

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6809E	2000000
cpu	decobsmt:soundcpu	Motorola MC6809E	2000000
cpu	decobsmt:bsmt:bsmt2000	Texas Instruments TMS32015	24000000
cpu	decodmd:dmdcpu	Motorola MC6809E	2000000
audio	mechvol	Speaker
audio	samples	Samples
audio	speaker	Speaker
audio	decobsmt	Data East/Sega/Stern BSMT2000 Sound Board
audio	decobsmt:bsmt	BSMT2000	24000000

device_ref

name
mc6809e
nvram
speaker
samples
speaker
decobsmt
mc6809e
bsmt2000
tms32015
decodmd2
mc6809e
timer
mc6845
screen

sample

name
bumper
chime1
chime2
chime3
chime4
hole
knocker
sling
coinin
outhole
kickback
drop_target_reset
coil_coinlockout_engage
coil_coinlockout_release
relay_engage
relay_release
solenoid_engage
solenoid_release

sound

channels
2

feature

type	status	overall
sound	unemulated

input

players	coins	service	tilt
1	3	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
keypad		66		no

port, analog

port_tag	analog_masks
:DEDICATED
:DSW0
:X0
:X1
:X2
:X3
:X4
:X5
:X6
:X7
