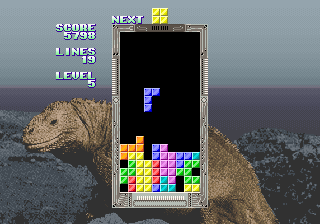

Tetris (set 2, Japan, System 16B) (bootleg of FD1094 317-0092 set) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
tetris2d	sega/segas16b.cpp		no	no	no	yes	Tetris (set 2, Japan, System 16B) (bootleg of FD1094 317-0092 set)	1988	bootleg	tetris	tetris

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	320	224	60.054389	6293700	400	0	320	262	0	224	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
bootleg_epr-12193.a7	65536	e8c59f9d	88aa9c7868b914e5cbd3fc0def5d61d5d5c37d21	maincpu	0	good	no
bootleg_epr-12192.a5	65536	8ff44f5f	a590d695c7d802ad7afe77990dd15775c03c727a	maincpu	1	good	no
epr-12165.b9	65536	62640221	c311d3847a981d0e1609f9b3d80481565d32d78c	gfx1	0	good	no
epr-12166.b10	65536	9abd183b	621b017cb34973f9227be383e26b5cd41aea9422	gfx1	10000	good	no
epr-12167.b11	65536	2495fd4e	2db94ead9223a67238a97e724668076fc43e5534	gfx1	20000	good	no
mpr-12194.b1	65536	2fb38880	0e1b601bbda78d1887951c1f7e752531c281bc83	sprites	1	good	no
mpr-12195.b5	65536	d6a02cba	d80000f92e754e89c6ca7b7273feab448fc9a061	sprites	0	good	no
epr-12168.a7	32768	bd9ba01b	fafa7dc36cc057a50ae4cdf7a35f3594292336f4	soundcpu	0	good	no
315-5298.b9	235	39b47212	432b47aee5ecbf08a8a6dc2f8379c816feb86328	plds	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	10000000
cpu	soundcpu	Zilog Z80	5000000
audio	mono	Speaker
audio	ym2151	YM2151 OPM	4000000
audio	upd	NEC uPD7759	640000
audio	netlist	Netlist Sound Device

device_ref

name
m68000
z80
nvram
sega_315_5195
gfxdecode
palette
screen
sega_sys16b_sprite
segaic16_video
speaker
ym2151
upd7759
netlist_sound
nl_stream_in
nl_stream_in
nl_stream_in
nl_stream_out

sound

channels
1

input

players	coins	service	tilt
2	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
joy	1	3	5 (half8)	no
joy	2	3	5 (half8)	no

port, analog

port_tag	analog_masks
:DSW1
:DSW2
:P1
:P2
:SERVICE
:UNUSED

dipswitch

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSW1	15

location

name	number	inverted
SW1	1	no
SW1	2	no
SW1	3	no
SW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	7	no
3 Coins/1 Credit	8	no
2 Coins/1 Credit	9	no
2 Coins/1 Credit, 5/3, 6/4	5	no
2 Coins/1 Credit, 4/3	4	no
1 Coin/1 Credit	15	yes
1 Coin/1 Credit, 5/6	3	no
1 Coin/1 Credit, 4/5	2	no
1 Coin/1 Credit, 2/3	1	no
2 Coins/3 Credits	6	no
1 Coin/2 Credits	14	no
1 Coin/3 Credits	13	no
1 Coin/4 Credits	12	no
1 Coin/5 Credits	11	no
1 Coin/6 Credits	10	no
Free Play (if Coin B too) or 1/1	0	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSW1	240

location

name	number	inverted
SW1	5	no
SW1	6	no
SW1	7	no
SW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	112	no
3 Coins/1 Credit	128	no
2 Coins/1 Credit	144	no
2 Coins/1 Credit, 5/3, 6/4	80	no
2 Coins/1 Credit, 4/3	64	no
1 Coin/1 Credit	240	yes
1 Coin/1 Credit, 5/6	48	no
1 Coin/1 Credit, 4/5	32	no
1 Coin/1 Credit, 2/3	16	no
2 Coins/3 Credits	96	no
1 Coin/2 Credits	224	no
1 Coin/3 Credits	208	no
1 Coin/4 Credits	192	no
1 Coin/5 Credits	176	no
1 Coin/6 Credits	160	no
Free Play (if Coin A too) or 1/1	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	1

location

name	number	inverted
SW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW2	2

location

name	number	inverted
SW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	no
On	0	yes

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	4

location

name	number	inverted
SW2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	8

location

name	number	inverted
SW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	yes
On	0	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW2	48

location

name	number	inverted
SW2	5	no
SW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Easy	32	no
Normal	48	yes
Hard	16	no
Hardest	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	64

location

name	number	inverted
SW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	128

location

name	number	inverted
SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no
