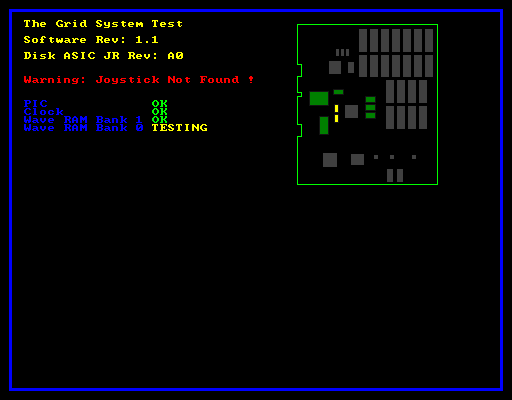

The Grid (version 1.1) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
thegrida	midway/midzeus.cpp		no	no	no	yes	The Grid (version 1.1)	2000	Midway	thegrid	thegrid

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	512	400	57.134789	16666675	666	0	512	438	0	400	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge
the_grid.u2	4194304	e6a39ee9	4ddc62f5d278ea9791205098fa5f018ab1e698b4	dcs	0	good	no	the_grid.u2
the_grid.u3	4194304	40be7585	e481081edffa07945412a6eab17b4d3e7b42cfd3	dcs	400000	good	no	the_grid.u3
the_grid.u4	4194304	7a15c203	a0a49dd08bba92402640ed2d1fb4fee112c4ab5f	dcs	800000	good	no	the_grid.u4
pic16c57.u76	8191	8234d466	5737e355d3262cd0b13191cdf9b49dd74f69dd15	pic	0	good	no	pic16c57.u76
thegrid-11.u10	1048576	87ea0e9e	618de2ca87b7a3e0225d1f7e65f8fc1356de1421	maindata	0	good	no
thegrid-11.u11	1048576	73d84b1a	8dcfcab5ff64f46f8486e6439a10d91ad26fd48a	maindata	2	good	no
thegrid-11.u12	1048576	78d16ca1	7b893ec8af2f44d8bc293861fd8622d68d41ccbe	maindata	200000	good	no
thegrid-11.u13	1048576	8e00b400	96581c5da62afc19e6d69b2352b3166665cb9918	maindata	200002	good	no
the_grid.u18	4194304	3a3460be	e719dae8a2e54584cb6a074ed42e35e3debef2f6	bankeddata	0	good	no	the_grid.u18
the_grid.u19	4194304	af262d5b	3eb3980fa81a360a70aa74e793b2bc3028f68cf2	bankeddata	2	good	no	the_grid.u19
the_grid.u20	4194304	e6ad1917	acab25e1251fd07b374badebe79f6ec1772b3589	bankeddata	800000	good	no	the_grid.u20
the_grid.u21	4194304	48c03f8e	50790bdae9f2234ffb4914c2c5c16374e3508b47	bankeddata	800002	good	no	the_grid.u21
the_grid.u22	4194304	84c3a8b6	de0dcf9daf7ada7a6952b9e29a29571b2aa9d0b2	bankeddata	1000000	good	no	the_grid.u22
the_grid.u23	4194304	f48ef409	79d74b4fe38b06a02ae0351d13d7f0a7ed0f0c87	bankeddata	1000002	good	no	the_grid.u23

chip

type	tag	name	clock
cpu	maincpu	Texas Instruments TMS320C32	60000000
cpu	dcs:dcs2	Analog Devices ADSP-2104	16000000
cpu	pic	Microchip PIC16C57	8000000
audio	speaker	Speaker
audio	dcs	DCS2 Audio 2104
audio	dcs:dac1	DMA-driven DAC
audio	dcs:dac2	DMA-driven DAC

device_ref

name
tms32032
nvram
screen
zeus2
speaker
dcs2_audio_2104
adsp2104
timer
timer
timer
timer
dmadac
dmadac
m48t35
midway_ioasic
ibm21s851
tsb12lv01a
pic16c57

sound

channels
1

feature

type	status	overall
graphics	imperfect
comms		unemulated

input

players	coins	service	tilt
2	4	yes	yes

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta
joy	1	3	8	no
stick	1			yes	0	111	100	10
trackball	1			yes	0	255	1	1
joy	2	3	8	no

port, analog

port_tag	analog_masks
:49WAYX	255
:49WAYY	255
:DIPS
:IN1
:IN2
:KEYPAD
:SYSTEM
:TRACKX	255
:TRACKY	255
:ioasic:SERIAL_DIGIT

dipswitch

Coinage Source

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage Source	DIPS	1

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Dipswitch	1	yes
CMOS	0	no

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	DIPS	62

value

name	value	default
USA-1	62	yes
USA-2	56	no
USA-10	60	no
USA-14	58	no
USA-DC1	54	no
USA-DC2	48	no
USA-DC4	50	no
USA-DC5	52	no
French-ECA1	46	no
French-ECA2	44	no
French-ECA3	42	no
French-ECA4	40	no
French-ECA5	38	no
French-ECA6	36	no
French-ECA7	34	no
French-ECA8	32	no
German-1	30	no
German-2	28	no
German-3	26	no
German-4	24	no
German-5	22	no
German-ECA1	20	no
German-ECA2	18	no
German-ECA3	16	no
UK-4	8	no
UK-5	6	no
UK-1 ECA	14	no
UK-2 ECA	12	no
UK-3 ECA	10	no
UK-6 ECA	4	no
UK-7 ECA	2	no
Free Play	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DIPS	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Game Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Game Mode	DIPS	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Normal	128	yes
Test	0	no

Show Blood

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Show Blood	DIPS	256

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Show Blood	256	yes
Do not show blood	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DIPS	65024

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	65024	yes
On	0	no

Serial Low Digit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Serial Low Digit	ioasic:SERIAL_DIGIT	15

value

name	value	default
0	0	no
1	1	no
2	2	no
3	3	no
4	4	no
5	5	no
6	6	yes
7	7	no
8	8	no
9	9	no
