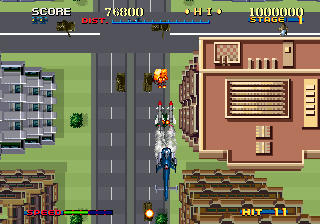

Thunder Blade (upright) (FD1094 317-0056) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
thndrbld	sega/segaxbd.cpp		no	no	no	yes	Thunder Blade (upright) (FD1094 317-0056)	1987	Sega

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
mainpcb:screen	raster	0	320	224	59.637405	6250000	400	0	320	262	0	224	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
epr-11405.ic58	131072	e057dd5a	4c032db4752dfb44dba3def5ee5377fffd94b79c	mainpcb:maincpu	0	good	no
epr-11406.ic63	131072	c6b994b8	098b2ae30c4aafea35222369d60f8e89f87639eb	mainpcb:maincpu	1	good	no
epr-11306.ic57	131072	4b95f2b4	9e0ff898a2af05c35db3551e52c7485748698c28	mainpcb:maincpu	40000	good	no
epr-11307.ic62	131072	2d6833e4	b39a744370014237121f0010d18897e63f7058cf	mainpcb:maincpu	40001	good	no
317-0056.key	8192	b40cd2c5	865e70bce4f55f6702960d6eaa780b7b1f880e41	mainpcb:maincpu:key	0	good	no
epr-11390.ic20	131072	ed988fdb	b809b0b7dabd5cb29f5387522c6dfb993d1d0271	mainpcb:subcpu	0	good	no
epr-11391.ic29	131072	12523bc1	54635d6c4cc97cf4148dcac3bb2056fc414252f7	mainpcb:subcpu	1	good	no
epr-11310.ic21	131072	5d9fa02c	0ca71e35cf9740e38a52960f7d1ef96e7e1dda94	mainpcb:subcpu	40000	good	no
epr-11311.ic30	131072	483de21b	871f0e856dcc81dcef1d9846261b3c011fa26dde	mainpcb:subcpu	40001	good	no
epr-11314.ic154	65536	d4f954a9	93ee8cf8fcf4e1d0dd58329bba9b594431193449	mainpcb:gfx1	0	good	no
epr-11315.ic153	65536	35813088	ea1ec982d1509efb26e7b6a150825a6a905efed9	mainpcb:gfx1	10000	good	no
epr-11316.ic152	65536	84290dff	c13fb6ef12a991f79a95072f953a02b5c992aa2d	mainpcb:gfx1	20000	good	no
epr-11323.ic90	131072	27e40735	284ddb88efe741fb78199ea619c9b230ee689803	mainpcb:sprites	0	good	no
epr-11322.ic94	131072	10364d74	393b19a972b5d8817ffd438f13ded73cd58ebe56	mainpcb:sprites	1	good	no
epr-11321.ic98	131072	8e738f58	9f2dceebf01e582cf60f072ae411000d8503894b	mainpcb:sprites	2	good	no
epr-11320.ic102	131072	a95c76b8	cda62f3c25b9414a523c2fc5d109031ed560069e	mainpcb:sprites	3	good	no
epr-11327.ic91	131072	deae90f1	c73c23bab949041242302cec13d653dcc71bb944	mainpcb:sprites	80000	good	no
epr-11326.ic95	131072	29198403	3ecf315a0e6b3ed5005f8bdcb2e2a884c8b176c7	mainpcb:sprites	80001	good	no
epr-11325.ic99	131072	b9e98ae9	c4932e2590b10d54fa8ded94593dc4203fccc60d	mainpcb:sprites	80002	good	no
epr-11324.ic103	131072	9742b552	922032264d469e943dfbcaaf57464efc638fcf73	mainpcb:sprites	80003	good	no
epr-11331.ic92	131072	3a2c042e	c296ff222d156d3bdcb42bef321831f502830fd6	mainpcb:sprites	100000	good	no
epr-11330.ic96	131072	aa7c70c5	b6fea17392b7821b8b3bba78002f9c1604f09edc	mainpcb:sprites	100001	good	no
epr-11329.ic100	131072	31b20257	7ce10a94bce67b2d15d7b576b0f7d47389dc8948	mainpcb:sprites	100002	good	no
epr-11328.ic104	131072	da39e89c	526549ce9112754c82743552eeebec63fe7ad968	mainpcb:sprites	100003	good	no
epr-11395.ic93	131072	90775579	15a86071a105da40ec9c0c0074e342231fc030d0	mainpcb:sprites	180000	good	no
epr-11394.ic97	131072	5f2783be	424510153a91902901f321f39738a862d6fba8e7	mainpcb:sprites	180001	good	no
epr-11393.ic101	131072	525e2e1d	6fd09f775e7e6cad8078513d1af0a8ff40fb1360	mainpcb:sprites	180002	good	no
epr-11392.ic105	131072	b4a382f7	c03a05ba521f654db1a9c5f5717b7a15e5a29d4e	mainpcb:sprites	180003	good	no
epr-11313.ic29	65536	6a56c4c3	c1b8023cb2ba4e96be052031c24b6ae424225c71	mainpcb:segaic16road	0	good	no
epr-11396.ic17	65536	d37b54a4	c230fe7241a1f13ca13506d1492f348f506c40a7	mainpcb:soundcpu	0	good	no
epr-11317.ic11	131072	d4e7ac1f	ec5d6e4949938adf56e5613801ae56ff2c3dede5	mainpcb:pcm	0	good	no
epr-11318.ic12	131072	70d3f02c	391aac2bc5673e06150de27e19c7c6359da8ca82	mainpcb:pcm	20000	good	no
epr-11319.ic13	131072	50d9242e	a106371bf680c3088ec61f07fc5c4ce467973c15	mainpcb:pcm	40000	good	no

chip

type	tag	name	clock
cpu	mainpcb:maincpu	Hitachi FD1094 Encrypted CPU	12500000
cpu	mainpcb:subcpu	Motorola MC68000	12500000
cpu	mainpcb:soundcpu	Zilog Z80	4000000
audio	mainpcb:speaker	Speaker
audio	mainpcb:ymsnd	YM2151 OPM	4000000
audio	mainpcb:pcm	Sega PCM	4000000

device_ref

name
segaxbd_pcb_fd1094
fd1094
m68000
z80
nvram
nvram
mb3773
sega_315_5248
sega_315_5248
sega_315_5249
sega_315_5249
sega_315_5250
sega_315_5250
cxd1095
cxd1095
adc0804
gfxdecode
palette
screen
sega_xboard_sprite
segaic16_video
segaic16_road
speaker
ym2151
segapcm

sound

channels
1

input

players	coins	service	tilt
1	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
stick		2		yes	1	255	100	4

port, analog

port_tag	analog_masks
:mainpcb:ADC0	255
:mainpcb:ADC1	255
:mainpcb:ADC2	255
:mainpcb:IO0PORTA
:mainpcb:IO0PORTB
:mainpcb:IO1PORTA
:mainpcb:IO1PORTB
:mainpcb:IO1PORTC
:mainpcb:IO1PORTD

dipswitch

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	mainpcb:IO1PORTC	15

location

name	number	inverted
SWA	1	no
SWA	2	no
SWA	3	no
SWA	4	no

value

name	value	default
4 Coins/1 Credit	7	no
3 Coins/1 Credit	8	no
2 Coins/1 Credit	9	no
2 Coins/1 Credit, 5/3, 6/4	5	no
2 Coins/1 Credit, 4/3	4	no
1 Coin/1 Credit	15	yes
1 Coin/1 Credit, 5/6	3	no
1 Coin/1 Credit, 4/5	2	no
1 Coin/1 Credit, 2/3	1	no
2 Coins/3 Credits	6	no
1 Coin/2 Credits	14	no
1 Coin/3 Credits	13	no
1 Coin/4 Credits	12	no
1 Coin/5 Credits	11	no
1 Coin/6 Credits	10	no
Free Play (if Coin B too) or 1/1	0	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	mainpcb:IO1PORTC	240

location

name	number	inverted
SWA	5	no
SWA	6	no
SWA	7	no
SWA	8	no

value

name	value	default
4 Coins/1 Credit	112	no
3 Coins/1 Credit	128	no
2 Coins/1 Credit	144	no
2 Coins/1 Credit, 5/3, 6/4	80	no
2 Coins/1 Credit, 4/3	64	no
1 Coin/1 Credit	240	yes
1 Coin/1 Credit, 5/6	48	no
1 Coin/1 Credit, 4/5	32	no
1 Coin/1 Credit, 2/3	16	no
2 Coins/3 Credits	96	no
1 Coin/2 Credits	224	no
1 Coin/3 Credits	208	no
1 Coin/4 Credits	192	no
1 Coin/5 Credits	176	no
1 Coin/6 Credits	160	no
Free Play (if Coin A too) or 1/1	0	no

Cabinet Type

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Cabinet Type	mainpcb:IO1PORTD	1

location

name	number	inverted
SWB	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Econ Upright	1	yes
Mini Upright	0	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	mainpcb:IO1PORTD	2

location

name	number	inverted
SWB	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	no
On	0	yes

Time

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Time	mainpcb:IO1PORTD	4

location

name	number	inverted
SWB	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
30 sec	4	yes
0 sec	0	no

Lives

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Lives	mainpcb:IO1PORTD	24

location

name	number	inverted
SWB	4	no
SWB	5	no

value

name	value	default
2	8	no
3	24	yes
4	16	no
5	0	no

Allow Continue

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Allow Continue	mainpcb:IO1PORTD	32

location

name	number	inverted
SWB	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	32	yes

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	mainpcb:IO1PORTD	192

location

name	number	inverted
SWB	7	no
SWB	8	no

value

name	value	default
Easy	64	no
Normal	192	yes
Hard	128	no
Hardest	0	no
