Time Crisis II (US, TSS3 Ver. B) - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
timecrs2	namco/namcos23.cpp		no	no	no	yes	Time Crisis II (US, TSS3 Ver. B)	1997	Namco

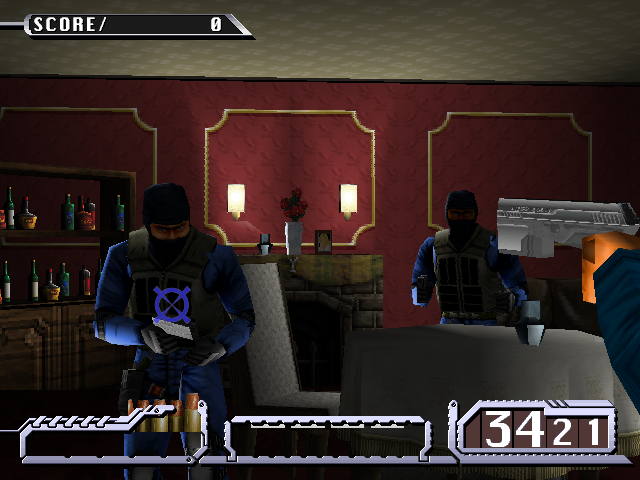

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
timecrs2	255492	29/12/2025 11:31:47	640	480	96	96	0	Format24bppRgb	305:MAME 0.168 (Nov 26 2015)	4753f69b202fa6f702f3d24ca0ba9e4ef5002ff6

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	640	480	59.904060	25600000	814	0	640	525	0	480	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
tss3verb.2	2097152	c7be691f	5e2e7a0db3d8ce6dfeb6c0d99e9fe6a9f9cab467	user1	0	good	no
tss3verb.1	2097152	6e3f232b	8007d8f31a605a5df89938d7c9f9d3d209c934be	user1	1	good	no
tss1vera.3	524288	41e41994	eabc1a307c329070bfc6486cb68169c94ff8a162	subcpu	0	good	no
tss1mtah.2j	8388608	697c26ed	72f6f69e89496ba0c6183b35c3bde71f5a3c721f	data	0	good	no
tss1mtal.2h	8388608	bfc79190	04bda00c4cc5660d27af4f3b0ee3550dea8d3805	data	1	good	no
tss1mtbh.2m	8388608	82582776	7c790d09bac660ea1c62da3ffb21ab43f2461594	data	1000000	good	no
tss1mtbl.2f	8388608	e648bea4	3803d03e72b25fbcc124d5b25066d25629b76b94	data	1000001	good	no
tss1cgll.4m	8388608	18433aaa	08539beb2e66ec4e41062621fc098b121c669546	textile	0	good	no
tss1cglm.4k	8388608	669974c2	cfebe199631e38f547b38fcd35f1645b74e8dd0a	textile	800000	good	no
tss1cgum.4j	8388608	c22739e1	8671ee047bb248033656c50befd1c35e5e478e1a	textile	1000000	good	no
tss1cguu.4f	8388608	76924e04	751065d6ce658cbbcd88f854f6937ebd2204ec68	textile	1800000	good	no
tss1ccrl.7f	4194304	3a325fe7	882735dce7aeb36f9e88a983498360f5de901e9d	textilemapl	0	good	no
tss1ccrh.7e	2097152	f998de1a	371f540f505608297c5ffcfb623b983ca8310afb	textilemaph	0	good	no
tss1pt0h.7a	4194304	cdbe0ba8	f8c6da31654c0a2a8024888ffb7fc1c783b2d629	pointrom	0	good	no
tss1pt0l.7c	4194304	896f0fb4	bdfa99eb21ce4fc8021f9d95a5558a34f9942c57	pointrom	2	good	no
tss1pt1h.5a	4194304	63647596	833412be8f61686bd7e06c2738df740e0e585d0f	pointrom	800000	good	no
tss1pt1l.5c	4194304	5a09921f	c23885708c7adf0b81c2c9346e21b869634a5b35	pointrom	800002	good	no
tss1pt2h.4a	4194304	9b06e22d	cff5ed098112a4f0a2bc8937e226f50066e605b1	pointrom	1000000	good	no
tss1pt2l.4c	4194304	4b230d79	794cee0a19993e90913f58507c53224f361e9663	pointrom	1000002	good	no
tss1wavel.2c	8388608	deaead26	72dac0c3f41d4c3c290f9eb1b50236ae3040a472	c352	0	good	no
tss1waveh.2a	8388608	5c8758b4	b85c8f6869900224ef83a2340b17f5bbb2801af9	c352	800000	good	no

chip

type	tag	name	clock
cpu	maincpu	MIPS IDT R4650 (big)	169344000
cpu	subcpu	Hitachi H8/3002	16934400
cpu	jvs:namco_tssio:iocpu	Hitachi H8/3334	14745600
audio	speaker	Speaker
audio	c352	Namco C352	25401600

device_ref

tag	name
:maincpu	r4650be
:subcpu	h83002
:subcpu:intc	h8h_intc
:subcpu:adc	h8_adc_3337
:subcpu:dma	h8h_dma
:subcpu:dma:0	h8h_dma_channel
:subcpu:dma:1	h8h_dma_channel
:subcpu:port4	h8_digital_port
:subcpu:port6	h8_digital_port
:subcpu:port7	h8_digital_port
:subcpu:port8	h8_digital_port
:subcpu:port9	h8_digital_port
:subcpu:porta	h8_digital_port
:subcpu:portb	h8_digital_port
:subcpu:timer16	h8_timer16
:subcpu:timer16:0	h8h_timer16_channel
:subcpu:timer16:1	h8h_timer16_channel
:subcpu:timer16:2	h8h_timer16_channel
:subcpu:timer16:3	h8h_timer16_channel
:subcpu:timer16:4	h8h_timer16_channel
:subcpu:sci0	h8_sci
:subcpu:sci1	h8_sci
:subcpu:watchdog	h8_watchdog
:namco_settings	namco_settings
:rtc	rtc4543
:nvram	nvram
:screen	screen
:palette	palette
:speaker	speaker
:c352	c352
:jvs	jvs_port
:jvs:namco_tssio	namco_tssio
:jvs:namco_tssio:iocpu	h83334
:jvs:namco_tssio:iocpu:intc	h8_intc
:jvs:namco_tssio:iocpu:adc	h8_adc_3337
:jvs:namco_tssio:iocpu:port1	h8_digital_port
:jvs:namco_tssio:iocpu:port2	h8_digital_port
:jvs:namco_tssio:iocpu:port3	h8_digital_port
:jvs:namco_tssio:iocpu:port4	h8_digital_port
:jvs:namco_tssio:iocpu:port5	h8_digital_port
:jvs:namco_tssio:iocpu:port6	h8_digital_port
:jvs:namco_tssio:iocpu:port7	h8_digital_port
:jvs:namco_tssio:iocpu:port8	h8_digital_port
:jvs:namco_tssio:iocpu:port9	h8_digital_port
:jvs:namco_tssio:iocpu:timer8_0	h8_timer8_channel
:jvs:namco_tssio:iocpu:timer8_1	h8_timer8_channel
:jvs:namco_tssio:iocpu:timer16	h8_timer16
:jvs:namco_tssio:iocpu:timer16:0	h8_timer16_channel
:jvs:namco_tssio:iocpu:sci0	h8_sci
:jvs:namco_tssio:iocpu:sci1	h8_sci
:jvs:namco_tssio:iocpu:watchdog	h8_watchdog
:jvs:namco_tssio:jvs	jvs_port

sound

channels
1

feature

type	status	overall
graphics	imperfect
lan	unemulated

input

players	coins	service	tilt
3	1	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta
joy	1	3	vertical2	no
lightgun	1			no	38	65535	50	10
joy	2	9	vertical2	no
only_buttons	3	2		no

port, analog

port_tag	analog_masks
:DSW
:JVS_ANALOG_INPUT1
:JVS_ANALOG_INPUT2
:JVS_ANALOG_INPUT3
:JVS_ANALOG_INPUT4
:JVS_ANALOG_INPUT5
:JVS_ANALOG_INPUT6
:JVS_ANALOG_INPUT7
:JVS_ANALOG_INPUT8
:JVS_COIN1
:JVS_PLAYER1
:JVS_ROTARY_INPUT1
:JVS_SCREEN_POSITION_INPUT_X1	4095
:JVS_SCREEN_POSITION_INPUT_Y1	4095
:JVS_SYSTEM
:P1
:P2
:jvs:namco_tssio:DSW
:jvs:namco_tssio:SW

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
jvs	namco_xmiu1	namco_xmiu1	no
jvs	namco_tssio	namco_tssio	yes
jvs	namco_amc	namco_amc	no
jvs	namco_asca1	namco_asca1	no
jvs	namco_csz1	namco_csz1	no
jvs	namco_asca3	namco_asca3	no
jvs	namco_cyberleada	namco_cyberleada	no
jvs	namco_emio102	namco_emio102	no
jvs	namco_asca5	namco_asca5	no
jvs	namco_empri101	namco_empri101	no
jvs	namco_asca3a	namco_asca3a	no
jvs	namco_fca10	namco_fca10	no
jvs	namco_fca11	namco_fca11	no
jvs	namco_cyberlead	namco_cyberlead	no
jvs	namco_fcb	namco_fcb	no
jvs:namco_tssio:jvs	namco_xmiu1	namco_xmiu1	no
jvs:namco_tssio:jvs	namco_tssio	namco_tssio	no
jvs:namco_tssio:jvs	namco_amc	namco_amc	no
jvs:namco_tssio:jvs	namco_asca1	namco_asca1	no
jvs:namco_tssio:jvs	namco_csz1	namco_csz1	no
jvs:namco_tssio:jvs	namco_asca3	namco_asca3	no
jvs:namco_tssio:jvs	namco_cyberleada	namco_cyberleada	no
jvs:namco_tssio:jvs	namco_emio102	namco_emio102	no
jvs:namco_tssio:jvs	namco_asca5	namco_asca5	no
jvs:namco_tssio:jvs	namco_empri101	namco_empri101	no
jvs:namco_tssio:jvs	namco_asca3a	namco_asca3a	no
jvs:namco_tssio:jvs	namco_fca10	namco_fca10	no
jvs:namco_tssio:jvs	namco_fca11	namco_fca11	no
jvs:namco_tssio:jvs	namco_cyberlead	namco_cyberlead	no
jvs:namco_tssio:jvs	namco_fcb	namco_fcb	no

configuration

Link ID

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Link ID	JVS_PLAYER1	16384

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Right/Blue	16384	no
Left/Red	0	yes

dipswitch

Service Mode DIP

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode DIP	DSW	1

location

name	number	inverted
DIP	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Skip POST

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Skip POST	DSW	2

location

name	number	inverted
DIP	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

Freeze?

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Freeze?	DSW	4

location

name	number	inverted
DIP	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW	8

location

name	number	inverted
DIP	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW	16

location

name	number	inverted
DIP	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW	32

location

name	number	inverted
DIP	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW	64

location

name	number	inverted
DIP	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW	128

location

name	number	inverted
DIP	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	JVS_SYSTEM	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	128	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	jvs:namco_tssio:DSW	1

location

name	number	inverted
DIP SW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	jvs:namco_tssio:DSW	2

location

name	number	inverted
DIP SW2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	jvs:namco_tssio:DSW	4

location

name	number	inverted
DIP SW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	jvs:namco_tssio:DSW	8

location

name	number	inverted
DIP SW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	yes
On	0	no

clones

name	description
timecrs2v1b	Time Crisis II (Japan, TSS1 Ver. B)
timecrs2v5a	Time Crisis II (US, TSS5 Ver. A)
timecrs2v2b	Time Crisis II (World, TSS2 Ver. B)
timecrs2v4a	Time Crisis II (World, TSS4 Ver. A)
