SR-16 - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
tisr16	handheld/hh_tms1k.cpp		no	no	no	yes	SR-16	1974	Texas Instruments

snap

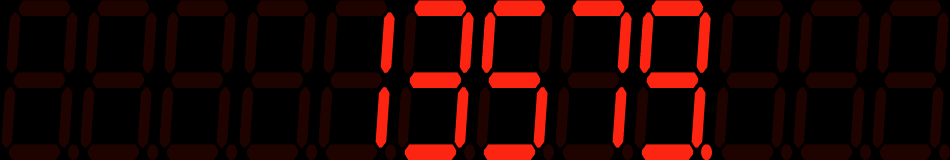

SR-16 png snap

SR-16 jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
tisr16	8046	29/12/2025 11:31:47	950	160	96	96	0	Format24bppRgb	305:MAME 0.179 (Oct 26 2016)	c6ab5c9c41c86b24a9e0593bf8f39302868dd529

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	yes	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
tms1001nl	1024	b7ce3c1d	95cdb0c6be31043f4fe06314ed41c0ca1337bc46	maincpu	0	good	no
tms1000_sr16_micro.pla	867	5b35019c	730d3b9041ed76d57fbedd73b009477fe432b386	maincpu:mpla	0	good	no
tms1000_sr16_output.pla	365	29b08739	d55f01e40a2d493d45ea422f12e63b01bcde08fb	maincpu:opla	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Texas Instruments TMS1000	350000

device_ref

tag	name
:maincpu	tms1000
:maincpu:mpla	pla
:maincpu:opla	pla
:display	pwm_display

sound

channels
0

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keyboard		31		no

port, analog

port_tag	analog_masks
:IN.0
:IN.1
:IN.10
:IN.2
:IN.3
:IN.4
:IN.5
:IN.6
:IN.7
:IN.8
:IN.9
