SR-16 II - mame (0285) machine

MAME: 0285 - Released: 2026-01-29T17:50:05 - Machines: 49616 - rom: 367884 - disk: 1392

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
tisr16ii	handheld/hh_tms1k.cpp		no	no	no	yes	SR-16 II	1975	Texas Instruments

snap

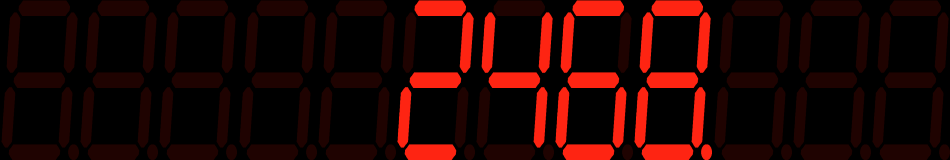

SR-16 II png snap

SR-16 II jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems
tisr16ii	8583	29/12/2025 11:31:47	950	160	96	96	0	Format24bppRgb	305:MAME 0.179 (Oct 26 2016)

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	yes	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
tms1016nl	1024	c07a7b27	34ea4d3b59871e08db74f8c5bfb7ff00d1f0adc7	maincpu	0	good	no
tms1000_sr16ii_micro.pla	867	31b43e95	6864e4c20f3affffcd3810dcefbc9484dd781547	maincpu:mpla	0	good	no
tms1000_sr16ii_output.pla	365	c45dfbd0	5d588c1abc317134b51eb08ac3953f1009d80056	maincpu:opla	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Texas Instruments TMS1000	350000

device_ref

tag	name
:maincpu	tms1000
:maincpu:mpla	pla
:maincpu:opla	pla
:display	pwm_display

sound

channels
0

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keyboard		31		no

port, analog

port_tag	analog_masks
:IN.0
:IN.1
:IN.10
:IN.2
:IN.3
:IN.4
:IN.5
:IN.6
:IN.7
:IN.8
:IN.9
