Electronic Digital Thermostat - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
tithermos	handheld/hh_tms1k.cpp		no	no	no	yes	Electronic Digital Thermostat	1979	Texas Instruments

snap

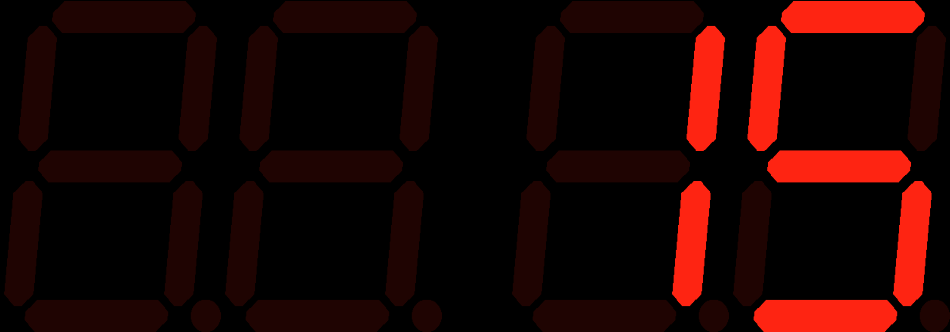

Electronic Digital Thermostat png snap

Electronic Digital Thermostat jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
tithermos	12447	29/12/2025 11:31:47	950	332	96	96	0	Format24bppRgb	305:MAME 0.212 (Jul 31 2019)	6d17e240873c03cf876d6f700ea016c1ff90ce41

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	no	no	yes	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
tmc0910b	1024	232011cf	598ae8cecd98226fb5056c99ce9f47fd23785fd7	maincpu	0	good	no
tms0970_common2_instr.pla	782	e038fc44	dfc280f6d0a5828d1bb14fcd59ac29caf2c2d981	maincpu:ipla	0	good	no
tms0970_tithermos_micro.pla	860	a3bb8ca5	006ea733440001c37a77d4ffbc4bd2a8fee212ac	maincpu:mpla	0	good	no
tms0980_tithermos_output.pla	352	eb3598fd	2372ae17fb982cae2710bf8c348bf02b767daabd	maincpu:opla	0	good	no
tms0980_common2_segment.pla	157	c03cccd8	08bc4b597686a7aa8b2c9f43b85b62747ffd455b	maincpu:spla	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Texas Instruments TMS0970	250000

device_ref

tag	name
:maincpu	tms0970
:maincpu:ipla	pla
:maincpu:mpla	pla
:maincpu:opla	pla
:maincpu:spla	pla
:ac_power	clock
:display	pwm_display

sound

channels
0

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		20		no

port, analog

port_tag	analog_masks
:IN.0
:IN.1
:IN.2
:IN.3
:IN.4
:IN.5
:IN.6
:IN.7
:IN.8

configuration

System

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
System	IN.3	6

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Heat	4	yes
Off	0	no
Cool	2	no

Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Mode	IN.7	6

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Constant	4	yes
Day/Night	0	no
Night	2	no

Fan

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Fan	IN.8	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	yes
Auto	1	no
