Topaz (Shuffle) (L-1) - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
topaz_l1	pinball/wms_shuffle.cpp	genpin	no	no	yes	yes	Topaz (Shuffle) (L-1)	1978	Williams

snap

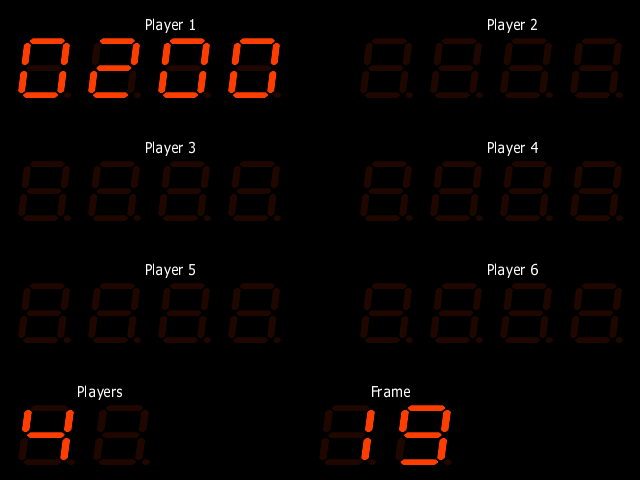

Topaz (Shuffle) (L-1) png snap

Topaz (Shuffle) (L-1) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
topaz_l1	13427	23/03/2026 18:11:16	640	480	96	96	0	Format24bppRgb	305:MAME 0.286 (mame0286)	b9c468a3cb54050697e69839448d502131766486

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
gamerom.716	2048	cb287b10	7fb6b6a26237cf85d5e02cf35271231267f90fc1	maincpu	2000	good	no
b_ic20.716	2048	c6f8e3b1	cb78d42e1265162132a1ab2320148b6857106b0e	maincpu	3000	good	no
b_ic17.716	2048	cfc2518a	5e99e40dcb7e178137db8d7d7d6da82ba87130fa	maincpu	3800	good	no
sound1.716	2048	f4190ca3	ee234fb5c894fca5876ee6dc7ea8e89e7e0aec9c	s4sound:audiocpu	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6802	3580000
cpu	s4sound:cpu	Motorola MC6808	3580000
audio	mechvol	Speaker
audio	samples	Samples
audio	mono	Speaker
audio	s4sound	Williams System 4 Sound Board
audio	s4sound:dac	MC1408 DAC

device_ref

tag	name
:maincpu	m6802
:mechvol	speaker
:samples	samples
:pia22	pia6821
:pia24	pia6821
:pia28	pia6821
:pia30	pia6821
:nvram	nvram
:mainirq	ipt_merge_any_hi
:4020	ripple_counter
:rclock	clock
:mono	speaker
:s4sound	wmss4
:s4sound:cpu	m6808
:s4sound:dac	mc1408
:s4sound:pia	pia6821

sample

name
bumper
chime1
chime2
chime3
chime4
hole
knocker
sling
coinin
outhole
kickback
drop_target_reset
coil_coinlockout_engage
coil_coinlockout_release
relay_engage
relay_release
solenoid_engage
solenoid_release

sound

channels
2

input

players	coins	service	tilt
2	3	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad	1	35		no
keypad	2	1		no

port, analog

port_tag	analog_masks
:DIAGS
:DS1
:DS2
:X0
:X1
:X2
:X3
:X4
:X5
:X6
:X7
:s4sound:S4

dipswitch

Data tens

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Data tens	DS1	15

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
0	15	yes
1	7	no
2	11	no
3	3	no
4	13	no
5	5	no
6	9	no
7	1	no
8	14	no
9	6	no

Data units

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Data units	DS1	240

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
0	240	yes
1	112	no
2	176	no
3	48	no
4	208	no
5	80	no
6	144	no
7	16	no
8	224	no
9	96	no

Function

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Function	DS2	255

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
0	255	yes
1	127	no
2	191	no
3	63	no
4	223	no
5	95	no
6	159	no
7	31	no
8	239	no
9	111	no
10	175	no
11	47	no
12	207	no
13	79	no
14	143	no
15	15	no
16	247	no
17	119	no
18	183	no
19	55	no
20	215	no
21	87	no
22	151	no
23	23	no
24	231	no
25	103	no
26	167	no
27	39	no
28	199	no
29	71	no
30	135	no
31	7	no

Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Sounds	s4sound:S4	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Set 1	0	yes
Set 2	64	no
