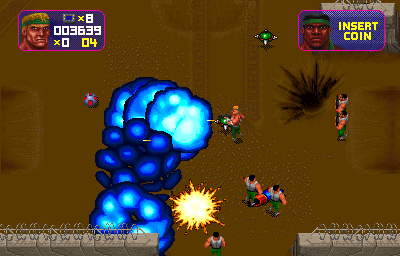

Total Carnage (rev LA1 03/10/92) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
totcarn	midway/midyunit.cpp		no	no	no	yes	Total Carnage (rev LA1 03/10/92)	1992	Midway

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	410	256	54.706840	8000000	506	90	500	289	20	276	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
sl1_total_carnage_sound_rom_u3.u3	131072	5bdb4665	c6b90b914785b8703790957cc4bb4983a332fba6	adpcm:cpu	10000	good	no
sl1_total_carnage_sound_rom_u12.u12	262144	d0000ac7	2d476c7727462623feb2f1a23fb797eaeed5ce30	adpcm:oki	0	good	no
sl1_total_carnage_sound_rom_u13.u13	262144	e48e6f0c	bf7d548b6b1901966f99c815129ea160ef36f024	adpcm:oki	80000	good	no
la1_total_carnage_game_rom_u105.u105	262144	7c651047	530c8b4e453778a81479d02913ffe7097903447f	maindata	80000	good	no
la1_total_carnage_game_rom_u89.u89	262144	6761daf3	8be881ecc5ea1121bb6cee1a34901a4d5e50dbb6	maindata	80001	good	no
la1_total_carnage_game_rom_u111.u111	262144	13f3f231	6df0dca72e170818c260d9931477103a38864a1e	gfx	0	good	no
la1_total_carnage_game_rom_u112.u112	262144	72e45007	b6f5dfb844b6ff46a3594d20e85f1f20bdbfb793	gfx	40000	good	no
la1_total_carnage_game_rom_u113.u113	262144	2c8ec753	9393179ea19cbec7ac7e4f8e912bb4f86d93e8bd	gfx	80000	good	no
la1_total_carnage_game_rom_u114.u114	262144	6210c36c	607acdf024c1d36238ed19841c3ef2c96f49038f	gfx	c0000	good	no
la1_total_carnage_game_rom_u95.u95	262144	579caeba	de7d9921a210839e1db4bf54fb96833bcb073862	gfx	200000	good	no
la1_total_carnage_game_rom_u96.u96	262144	f43f1ffe	60401092be1fed52a028dc81b7a28ade923c35ea	gfx	240000	good	no
la1_total_carnage_game_rom_u97.u97	262144	1675e50d	1479712b03fa2b67fcd2d4694f26ce1bd1959b97	gfx	280000	good	no
la1_total_carnage_game_rom_u98.u98	262144	ab06c885	09163060269fed2ebd697b71602166e906c95317	gfx	2c0000	good	no
la1_total_carnage_game_rom_u106.u106	262144	146e3863	1933e62a060eb667889b1edd5002c30a37ae00a7	gfx	400000	good	no
la1_total_carnage_game_rom_u107.u107	262144	95323320	5296206f3d84c21374968ffcacfe59eb3215ca46	gfx	440000	good	no
la1_total_carnage_game_rom_u108.u108	262144	ed152acc	372dbc4fdb581ac00a7eb5669cc1ac7afd6033f8	gfx	480000	good	no
la1_total_carnage_game_rom_u109.u109	262144	80715252	4586a259780963837ce362b526f161122d2e3cb4	gfx	4c0000	good	no

chip

type	tag	name	clock
cpu	maincpu	Texas Instruments TMS34010	48000000
cpu	adpcm:cpu	Motorola MC6809E	2000000
audio	speaker	Speaker
audio	adpcm	Williams ADPCM Sound Board
audio	adpcm:ym2151	YM2151 OPM	3579545
audio	adpcm:dac	AD7524 DAC
audio	adpcm:oki	OKI MSM6295 ADPCM	1000000

device_ref

name
tms34010
nvram
palette
screen
speaker
wmsadpcm
mc6809e
ym2151
ad7524
okim6295

sound

channels
1

input

players	coins	service	tilt
2	3	no	yes

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
doublejoy	1		8	no					8
doublejoy	2		8	no					8

port, analog

port_tag	analog_masks
:DSW
:IN0
:IN1
:IN2
:UNK0
:UNK1

dipswitch

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	DSW	63

location

name	number	inverted
DS1	8	no
DS1	7	no
DS1	6	no
DS1	5	no
DS1	4	no
DS1	3	no

value

name	value	default
USA 1	63	yes
USA 2	62	no
USA 3	61	no
German 1	60	no
German 2	59	no
German 3	58	no
France 2	57	no
France 3	56	no
France 4	55	no
Swiss 1	54	no
Italy	53	no
U.K. 1	52	no
U.K. 2	51	no
U.K. ECA	50	no
Spain 1	49	no
Australia 1	48	no
Japan 1	47	no
Japan 2	46	no
Austria 1	45	no
Belgium 1	44	no
Belgium 2	43	no
Sweden	42	no
New Zealand 1	41	no
Netherlands	40	no
Finland	39	no
Norway	38	no
Denmark 1	37	no
Denmark 2	0	no

Coinage Source

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage Source	DSW	64

location

name	number	inverted
DS1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
CMOS	64	no
Dipswitch	0	yes

Keys for Pleasure Dome

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Keys for Pleasure Dome	DSW	128

location

name	number	inverted
DS1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
220	128	yes
200	0	no

Test Switch

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Test Switch	DSW	256

location

name	number	inverted
DS2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	256	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW	512

location

name	number	inverted
DS2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	512	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW	1024

location

name	number	inverted
DS2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1024	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW	2048

location

name	number	inverted
DS2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2048	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW	4096

location

name	number	inverted
DS2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4096	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW	8192

location

name	number	inverted
DS2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8192	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW	16384

location

name	number	inverted
DS2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16384	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW	32768

location

name	number	inverted
DS2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32768	yes
On	0	no

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	IN1	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no
