TR-707 Rhythm Composer - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
tr707	roland/roland_tr707.cpp		no	no	no	yes	TR-707 Rhythm Composer	1985	Roland

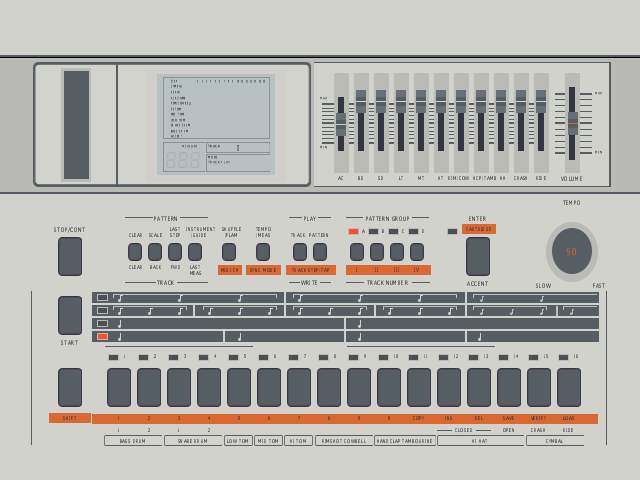

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
tr707	19313	20/01/2026 13:09:59	640	480	96	96	0	Format24bppRgb	305:MAME 0.284 (mame0284)	527a343feaba335206e2322de3c2a8491acbc1ae

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
imperfect	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
os_rom_firmware.ic13	16384	3517ea00	f5d57a79abf49131bd9832ae4e2dbced914ea523	program	0	good	no
hn61256p_c71_15179694.ic34	32768	a196489b	fd2bfe67d4d03d2b2134aa7feebe9167c44b1f8d	voices	0	good	no
hn61256p_c72_15179695.ic35	32768	b05302e5	5cc866f345906d817147ae2a61bc36d7be926511	voices	8000	good	no
hn61256p_c73_15179696.ic19	32768	b0bea07f	965e23ad71e1f95d56307fa67272725dff46ba67	cymbal1	0	good	no
hn61256p_c74_15179697.ic22	32768	9411943a	6c7c0f002ed66e4ccf182a4538d9bb239623ac43	cymbal2	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Hitachi HD6303X	4000000
audio	accent_adc_rc_network	RC-based Envelope Generator
audio	tr707_audio:mux_eg_1	RC-based Envelope Generator
audio	tr707_audio:mux_dac_1	DAC08 DAC
audio	tr707_audio:mux_vca_1	Voltage-controlled amplifier
audio	tr707_audio:mux_eg_2	RC-based Envelope Generator
audio	tr707_audio:mux_dac_2	DAC08 DAC
audio	tr707_audio:mux_vca_2	Voltage-controlled amplifier
audio	tr707_audio:mux_eg_3	RC-based Envelope Generator
audio	tr707_audio:mux_dac_3	DAC08 DAC
audio	tr707_audio:mux_vca_3	Voltage-controlled amplifier
audio	tr707_audio:mux_eg_4	RC-based Envelope Generator
audio	tr707_audio:mux_dac_4	DAC08 DAC
audio	tr707_audio:mux_vca_4	Voltage-controlled amplifier
audio	tr707_audio:mux_eg_5	RC-based Envelope Generator
audio	tr707_audio:mux_dac_5	DAC08 DAC
audio	tr707_audio:mux_vca_5	Voltage-controlled amplifier
audio	tr707_audio:mux_eg_6	RC-based Envelope Generator
audio	tr707_audio:mux_dac_6	DAC08 DAC
audio	tr707_audio:mux_vca_6	Voltage-controlled amplifier
audio	tr707_audio:mux_eg_7	RC-based Envelope Generator
audio	tr707_audio:mux_dac_7	DAC08 DAC
audio	tr707_audio:mux_vca_7	Voltage-controlled amplifier
audio	tr707_audio:mux_eg_8	RC-based Envelope Generator
audio	tr707_audio:mux_dac_8	DAC08 DAC
audio	tr707_audio:mux_vca_8	Voltage-controlled amplifier
audio	tr707_audio:hat_hpf	RC Filter
audio	tr707_audio:hat_eg	RC-based Envelope Generator
audio	tr707_audio:hat_vca	Voltage-controlled amplifier
audio	tr707_audio:cymbal_hpf_1	RC Filter
audio	tr707_audio:cymbal_dac_1	6-Bit R-2R DAC
audio	tr707_audio:cymbal_eg_1	RC-based Envelope Generator
audio	tr707_audio:cymbal_vca_1	Voltage-controlled amplifier
audio	tr707_audio:cymbal_hpf_2	RC Filter
audio	tr707_audio:cymbal_dac_2	6-Bit R-2R DAC
audio	tr707_audio:cymbal_eg_2	RC-based Envelope Generator
audio	tr707_audio:cymbal_vca_2	Voltage-controlled amplifier
audio	tr707_audio:left_mixer	Generic Audio Mixer
audio	tr707_audio:right_mixer	Generic Audio Mixer
audio	tr707_audio:voice_bpf_1	Biquad Filter
audio	tr707_audio:level_1	Volume Filter
audio	tr707_audio:voice_lpf_1	RC Filter
audio	tr707_audio:voice_bpf_2	Biquad Filter
audio	tr707_audio:level_2	Volume Filter
audio	tr707_audio:voice_lpf_2	RC Filter
audio	tr707_audio:voice_bpf_3	Biquad Filter
audio	tr707_audio:level_3	Volume Filter
audio	tr707_audio:voice_lpf_3	RC Filter
audio	tr707_audio:voice_bpf_4	Biquad Filter
audio	tr707_audio:level_4	Volume Filter
audio	tr707_audio:voice_lpf_4	RC Filter
audio	tr707_audio:voice_bpf_5	Biquad Filter
audio	tr707_audio:level_5	Volume Filter
audio	tr707_audio:voice_lpf_5	RC Filter
audio	tr707_audio:voice_bpf_6	Biquad Filter
audio	tr707_audio:level_6	Volume Filter
audio	tr707_audio:voice_lpf_6	RC Filter
audio	tr707_audio:voice_bpf_7	Biquad Filter
audio	tr707_audio:level_7	Volume Filter
audio	tr707_audio:voice_lpf_7	RC Filter
audio	tr707_audio:voice_bpf_8	Biquad Filter
audio	tr707_audio:level_8	Volume Filter
audio	tr707_audio:voice_lpf_8	RC Filter
audio	tr707_audio:voice_bpf_9	Biquad Filter
audio	tr707_audio:level_9	Volume Filter
audio	tr707_audio:voice_lpf_9	RC Filter
audio	tr707_audio:voice_bpf_10	Biquad Filter
audio	tr707_audio:level_10	Volume Filter
audio	tr707_audio:voice_lpf_10	RC Filter
audio	tr707_audio:left_dcblock	Biquad Filter
audio	tr707_audio:right_dcblock	Biquad Filter
audio	tr707_audio:left_master_level	Volume Filter
audio	tr707_audio:right_master_level	Volume Filter
audio	tr707_audio:left_out_bpf	Biquad Filter
audio	tr707_audio:right_out_bpf	Biquad Filter
audio	tr707_audio:speaker	Speaker

device_ref

tag	name
:maincpu	hd6303x
:nvram1	nvram
:nvram2	nvram
:tempo_clock	timer
:tempo_restart_timer	timer
:tempo_flipflop	7474
:accent_adc_rc_network	va_rc_eg
:accent_adc_timer	timer
:accent_adc_flipflop	7474
:mdin	midi_port
:mdin:midiin	midiin_port
:mdin:midiin:midiinimg	midiin
:mdout	midi_port
:mdout:midiout	midiout_port
:mdout:midiout:midioutimg	midiout
:cartslot	generic_cartslot
:lcdc	hd61602
:lcd_pwm	pwm_display
:led_matrix	pwm_display
:tr707_audio	tr707_audio
:tr707_audio:mac	mb63h114
:tr707_audio:mux_eg_1	va_rc_eg
:tr707_audio:mux_dac_1	dac08
:tr707_audio:mux_vca_1	va_vca
:tr707_audio:mux_eg_2	va_rc_eg
:tr707_audio:mux_dac_2	dac08
:tr707_audio:mux_vca_2	va_vca
:tr707_audio:mux_eg_3	va_rc_eg
:tr707_audio:mux_dac_3	dac08
:tr707_audio:mux_vca_3	va_vca
:tr707_audio:mux_eg_4	va_rc_eg
:tr707_audio:mux_dac_4	dac08
:tr707_audio:mux_vca_4	va_vca
:tr707_audio:mux_eg_5	va_rc_eg
:tr707_audio:mux_dac_5	dac08
:tr707_audio:mux_vca_5	va_vca
:tr707_audio:mux_eg_6	va_rc_eg
:tr707_audio:mux_dac_6	dac08
:tr707_audio:mux_vca_6	va_vca
:tr707_audio:mux_eg_7	va_rc_eg
:tr707_audio:mux_dac_7	dac08
:tr707_audio:mux_vca_7	va_vca
:tr707_audio:mux_eg_8	va_rc_eg
:tr707_audio:mux_dac_8	dac08
:tr707_audio:mux_vca_8	va_vca
:tr707_audio:hat_hpf	filter_rc
:tr707_audio:hat_eg	va_rc_eg
:tr707_audio:hat_vca	va_vca
:tr707_audio:cymbal_hpf_1	filter_rc
:tr707_audio:cymbal_dac_1	dac_6bit_r2r
:tr707_audio:cymbal_eg_1	va_rc_eg
:tr707_audio:cymbal_vca_1	va_vca
:tr707_audio:cymbal_hpf_2	filter_rc
:tr707_audio:cymbal_dac_2	dac_6bit_r2r
:tr707_audio:cymbal_eg_2	va_rc_eg
:tr707_audio:cymbal_vca_2	va_vca
:tr707_audio:left_mixer	mixer
:tr707_audio:right_mixer	mixer
:tr707_audio:voice_bpf_1	filter_biquad
:tr707_audio:level_1	filter_volume
:tr707_audio:voice_lpf_1	filter_rc
:tr707_audio:voice_bpf_2	filter_biquad
:tr707_audio:level_2	filter_volume
:tr707_audio:voice_lpf_2	filter_rc
:tr707_audio:voice_bpf_3	filter_biquad
:tr707_audio:level_3	filter_volume
:tr707_audio:voice_lpf_3	filter_rc
:tr707_audio:voice_bpf_4	filter_biquad
:tr707_audio:level_4	filter_volume
:tr707_audio:voice_lpf_4	filter_rc
:tr707_audio:voice_bpf_5	filter_biquad
:tr707_audio:level_5	filter_volume
:tr707_audio:voice_lpf_5	filter_rc
:tr707_audio:voice_bpf_6	filter_biquad
:tr707_audio:level_6	filter_volume
:tr707_audio:voice_lpf_6	filter_rc
:tr707_audio:voice_bpf_7	filter_biquad
:tr707_audio:level_7	filter_volume
:tr707_audio:voice_lpf_7	filter_rc
:tr707_audio:voice_bpf_8	filter_biquad
:tr707_audio:level_8	filter_volume
:tr707_audio:voice_lpf_8	filter_rc
:tr707_audio:voice_bpf_9	filter_biquad
:tr707_audio:level_9	filter_volume
:tr707_audio:voice_lpf_9	filter_rc
:tr707_audio:voice_bpf_10	filter_biquad
:tr707_audio:level_10	filter_volume
:tr707_audio:voice_lpf_10	filter_rc
:tr707_audio:left_dcblock	filter_biquad
:tr707_audio:right_dcblock	filter_biquad
:tr707_audio:left_master_level	filter_volume
:tr707_audio:right_master_level	filter_volume
:tr707_audio:left_out_bpf	filter_biquad
:tr707_audio:right_out_bpf	filter_biquad
:tr707_audio:speaker	speaker

adjuster

name	default
Accent	50
Crash Level	100
Ride Level	100
Bass Drum Level	100
Snare Drum Level	100
Low Tom Level	100
Mid Tom Level	100
Hi Tom Level	100
Rimshot / Cowbell Level	100
Handclap / Tambourine Level	100
Hi Hat Level	100
Tempo	50
TRIMMER: tempo (TM1)	62
TRIMMER: accent, series (TM2)	45
TRIMMER: accent, parallel (TM3)	15
Volume Level	50

sound

channels
1

feature

type	status	overall
sound	imperfect
tape	unemulated

device, instance

type	tag	name	briefname
midiin	mdin:midiin:midiinimg	midiin	min
midiout	mdout:midiout:midioutimg	midiout	mout
cartridge	cartslot	cartridge	cart

device, extension

type	tag	extension_names
midiin	mdin:midiin:midiinimg	mid, syx
midiout	mdout:midiout:midioutimg	mid
cartridge	cartslot	m64c_cart

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		32		no

port, analog

port_tag	analog_masks
:DINSYNC
:DINSYNC_CONFIG
:KEY0
:KEY1
:KEY2
:KEY3
:SLIDER_1
:SLIDER_10
:SLIDER_11
:SLIDER_2
:SLIDER_3
:SLIDER_4
:SLIDER_5
:SLIDER_6
:SLIDER_7
:SLIDER_8
:SLIDER_9
:START_STOP_IN
:TAPESYNC
:TEMPO
:TM1
:TM2
:TM3
:VOLUME
:mdin:midiin:midiinimg:CFG

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
mdin	midiin	midiin_port	yes
mdout	midiout	midiout_port	yes
cartslot

configuration

DIN sync input cable connected

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DIN sync input cable connected	DINSYNC_CONFIG	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	1	yes

MIDI file mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
MIDI file mode	mdin:midiin:midiinimg:CFG	255

setting

name	value	default
Multi	255	yes
Poly: Channel 1	0	no
Poly: Channel 2	1	no
Poly: Channel 3	2	no
Poly: Channel 4	3	no
Poly: Channel 5	4	no
Poly: Channel 6	5	no
Poly: Channel 7	6	no
Poly: Channel 8	7	no
Poly: Channel 9	8	no
Poly: Channel 10	9	no
Poly: Channel 11	10	no
Poly: Channel 12	11	no
Poly: Channel 13	12	no
Poly: Channel 14	13	no
Poly: Channel 15	14	no
Poly: Channel 16	15	no
