Tri-Sports - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
trisport	midway/mcr68.cpp		no	no	no	yes	Tri-Sports	1989	Bally Midway

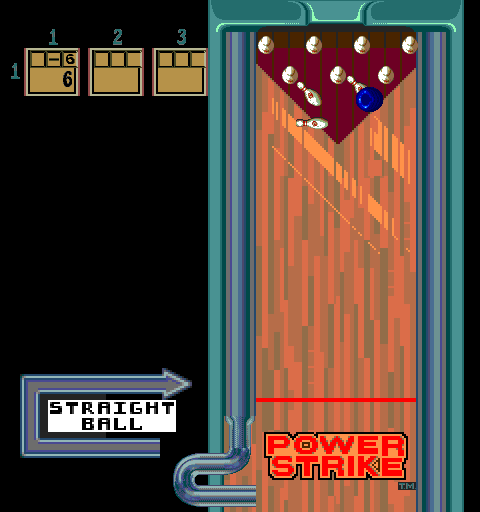

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
trisport	9566	29/12/2025 11:31:48	480	512	96	96	0	Format24bppRgb	305:MAME 0.130u4 (Apr 16 2009)	fed7cd24e65ecdea85888e7d6ce1829c00f4d671

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	270	512	480	30.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
tri_sports_a5_la3.a5	65536	fe1e9e37	583f18531583e038ca57a592b6a6c305896bf2c5	maincpu	0	good	no
tri_sports_b5_la3.b5	65536	f352ec81	446a68f231ca57540a295742d67ce9f1a8364b15	maincpu	1	good	no
tri_sports_a6_la3.a6	65536	9c6a1398	ee115d9207f3a9034b7c9eccd2ff151d9c923c9a	maincpu	20000	good	no
tri_sports_b6_la3.b6	65536	597b564c	090da3ec0c86035cc41a9caea182b8a5419c3be9	maincpu	20001	good	no
tri_sports_u4_sl1.u4	65536	0ed8c904	21292a001c4c44f87b8782c706e5c346b767cd6b	bg:cpu	0	good	no
tri_sports_u19_sl1.u19	65536	b57d7d7e	483f718f1cc4549baf5696935532d30803254a19	bg:cpu	20000	good	no
tri_sports_u20_sl1.u20	32768	3ae15c08	6b0fd09c39da08d1f67b6dd4287e8d2894522e1d	bg:cpu	40000	good	no
tri_sports_e2_la2.e2	65536	f61149a0	a43d184db23c7f194042709550e7bf36b838ee5c	gfx1	0	good	no
tri_sports_e1_la2.e1	65536	cf753497	e076093134f346e4cdb8d4a71fefef70f3fc1328	gfx1	10000	good	no
tri_sports_h15_la2.h15	131072	18a44d43	13ac27860b221b4ee950bc239ca941dadcb06832	gfx2	0	good	no
tri_sports_h17_la2.h17	131072	874cd237	32983b7fcac3b1a53da3529c5239a1131bb64d4f	gfx2	20000	good	no
tri_sports_h18_la2.h18	131072	f7637a18	21dbe2bed406908f17f5860cd2ca502b8f481f51	gfx2	40000	good	no
tri_sports_h14_la2.h14	131072	403f9401	6ff027943016d894b758dc8f189850bec1ee9360	gfx2	60000	good	no
pal20l8.g5	324			plds	0	nodump	no
pal20x10.f7	204			plds	200	nodump	no
pal20x10.e9	204			plds	300	nodump	no
pal20l8.d4	324			plds	400	nodump	no
pal16l8.d6	260			plds	600	nodump	no
pal16r4a.c11	260			plds	800	nodump	no
pal16r4.e10	260			plds	a00	nodump	no
pls153a.f14	235	48eed036	146b47ecb341b074acad0e4da2d81ff921bbaf7a	plds	c00	good	no
pls153a.f15	235	761c3b56	06c1717face55cc5b05ec45be9525a3d25419b85	plds	d00	good	no
pls153a.e19	235			plds	e00	nodump	no
pal16l8.f8	260			plds	1000	nodump	no
pal16r6a.e11	260			plds	1200	nodump	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	7723800
cpu	bg:cpu	Motorola MC6809E	2000000
audio	speaker	Speaker
audio	bg	Williams System 11C Background Audio Board
audio	bg:dac	MC1408 DAC
audio	bg:ym2151	YM2151 OPM	3579545
audio	bg:cvsd_filter2	Biquad Filter
audio	bg:cvsd_filter	Biquad Filter
audio	bg:hc55516	HC-55516

device_ref

tag	name
:maincpu	m68000
:watchdog	watchdog
:ptm	ptm6840
:screen	screen
:scantimer	timer
:gfxdecode	gfxdecode
:palette	palette
:speaker	speaker
:bg	s11c_bg
:bg:cpu	mc6809e
:bg:dac	mc1408
:bg:pia40	pia6821
:bg:ym2151	ym2151
:bg:cvsd_filter2	filter_biquad
:bg:cvsd_filter	filter_biquad
:bg:hc55516	hc55516
:nvram	nvram

sound

channels
1

input

players	coins	service	tilt
1	2	no	yes

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
trackball		2		yes	0	255	100	20

port, analog

port_tag	analog_masks
:AN1	255
:AN2	255
:DSW
:IN0
:IN1

dipswitch

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	DSW	7

location

name	number	inverted
SW1	1	no
SW1	2	no
SW1	3	no

value

name	value	default
4 Coins/1 Credit	2	no
3 Coins/1 Credit	3	no
2 Coins/1 Credit	6	no
1 Coin/1 Credit	7	yes
1 Coin/2 Credits	5	no
1 Coin/3 Credits	4	no
Free Play	1	no
Battery Options	0	no

Pool Turns

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Pool Turns	DSW	24

location

name	number	inverted
SW1	4	no
SW1	5	no

value

name	value	default
5	16	no
6	8	no
7	24	yes
8	0	no

Bowling Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bowling Difficulty	DSW	32

location

name	number	inverted
SW1	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Standard	32	yes
Advanced	0	no

Shot Timer

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Shot Timer	DSW	64

location

name	number	inverted
SW1	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Slower	0	no
Standard	64	yes

Golf Holes

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Golf Holes	DSW	128

location

name	number	inverted
SW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
3	128	yes
4	0	no

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	IN0	32

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no
