unknown Toptronic pinball game - mame (0286) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
tt_game	pinball/gts3.cpp	genpin	no	no	yes	yes	unknown Toptronic pinball game	19??	Toptronic

snap

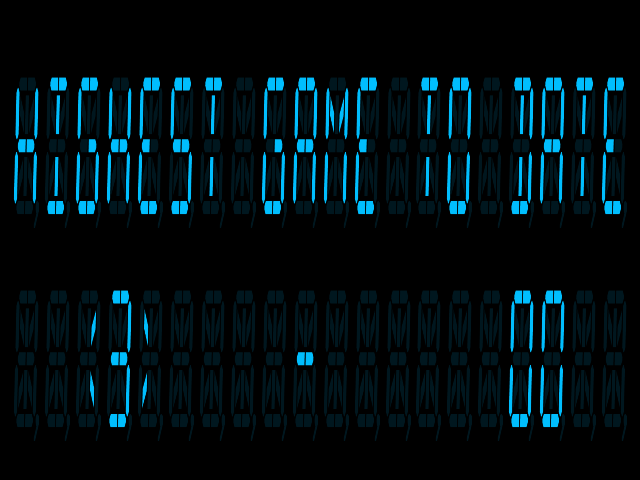

unknown Toptronic pinball game png snap

unknown Toptronic pinball game jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
tt_game	19361	23/03/2026 18:26:12	640	480	96	96	0	Format24bppRgb	305:MAME 0.286 (mame0286)	6a875a02cd3bdcf444a881f63029ffc2ee1d0df1

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	yes	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
gprom.bin	65536	e7944b75	b73f2e0004556c8aa88baef0cddcdefb5b905b8d	maincpu	0	good	no
drom1.bin	32768			p7sound:audiocpu	8000	nodump	no
arom1.bin	131072	b0983d90	72e6a71f20fd5849543ca13813f062a3fc1d7dcf	p7sound:oki	0	good	no
arom2.bin	131072	3e31ce58	a2ef72d7b2bb821d1f62dce7212e31a1df3e7791	p7sound:oki	20000	good	no
yrom1.bin	32768			p7sound:speechcpu	8000	nodump	no

chip

type	tag	name	clock
cpu	maincpu	WDC W65C02	2000000
cpu	p7sound:audiocpu	MOS Technology 6502	2000000
cpu	p7sound:speechcpu	MOS Technology 6502	2000000
audio	mechvol	Speaker
audio	samples	Samples
audio	mono	Speaker
audio	p7sound	Gottlieb Sound pin. 7
audio	p7sound:dac	AD7528 DAC
audio	p7sound:dacvol	AD7528 DAC
audio	p7sound:ay1	AY-3-8913 PSG	2000000
audio	p7sound:ay2	AY-3-8913 PSG	2000000
audio	p7sound:ym2151	YM2151 OPM	4000000
audio	p7sound:oki	OKI MSM6295 ADPCM	1000000

device_ref

tag	name
:maincpu	w65c02
:nvram	nvram
:u4	r65c22
:u5	r65c22
:irq	ipt_merge_any_hi
:mechvol	speaker
:samples	samples
:mono	speaker
:p7sound	gotsndp7
:p7sound:audiocpu	m6502
:p7sound:speechcpu	m6502
:p7sound:dac	ad7528
:p7sound:dacvol	ad7528
:p7sound:ay1	ay8913
:p7sound:ay2	ay8913
:p7sound:ym2151	ym2151
:p7sound:oki	okim6295

sample

name
bumper
chime1
chime2
chime3
chime4
hole
knocker
sling
coinin
outhole
kickback
drop_target_reset
coil_coinlockout_engage
coil_coinlockout_release
relay_engage
relay_release
solenoid_engage
solenoid_release

sound

channels
2

feature

type	status	overall
sound	unemulated

input

players	coins	service	tilt
1	3	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		63		no

port, analog

port_tag	analog_masks
:TTS
:X0
:X1
:X10
:X11
:X2
:X3
:X4
:X5
:X6
:X7
:X8
:X9
