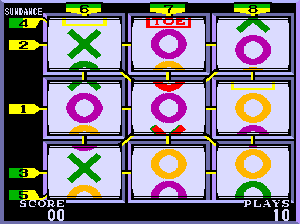

Tic Tac Toe (Sundance bootleg of New Lucky 8 Lines) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
ttactoe	igs/goldstar.cpp		no	no	no	yes	Tic Tac Toe (Sundance bootleg of New Lucky 8 Lines)	199?	bootleg (Sundance)

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	512	224	60.000000	7864320	512	0	512	256	16	240	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
tic_8.14b	32768	a3b8f6ce	e85803a0683f11f763bbcec82b0ab5b6dcc31d8f	maincpu	0	good	no
t5.7h	32768	868fd100	00b09049c34865206d324fb329cee74f35dce7ea	gfx1	0	good	no
t6.8h	32768	f39ac672	80f1b734e4321917778ce226348c31b19dc677c7	gfx1	4000	good	no
t7.9h	32768	8b23b265	3fc66ab5844d49e12e20f30deb6aa0d07cac3333	gfx1	8000	good	no
t1.1h	8192	be8b3c26	369703a91f430af91083cde2bbec210fa355c4a7	gfx2	0	good	no
t2.2h	8192	2385ce3d	49d8e3357ccfbe9e2c214276e884fff97d3da472	gfx2	2000	good	no
t3.4h	8192	e2074f7f	d2ccfd52372d37fd258d8544f0d53440b6b575f9	gfx2	4000	good	no
t4.5h	8192	da56407d	9a02c8b9d2489332ac64e8af5059bc6e7a1c9902	gfx2	6000	good	no
u4.bin	256	23e81049	78071dae70fad870e972d944642fb3a2374be5e4	proms	0	good	no
u5.bin	256	526cf9d3	eb779d70f2507d0f26d225ac8f5de8f2243599ca	proms	100	good	no
u2.bin	32	c6b41352	d7c3b5aa32e4e456c9432a13bede1db6d62eb270	proms2	0	good	no
u3.bin	256	1d668d4a	459117f78323ea264d3a29f1da2889bbabe9e4be	unkprom	0	good	no
u1.bin	32	6df3f972	0096a7f7452b70cac6c0752cb62e24b643015b5c	unkprom2	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	3000000
audio	mono	Speaker
audio	snsnd	SN76489	3000000
audio	aysnd	YM2149 SSG	1500000

device_ref

name
z80
i8255
i8255
i8255
screen
gfxdecode
palette
nvram
speaker
sn76489
ym2149
ticket_dispenser

sound

channels
1

input

players	coins	service	tilt
1	4	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
gambling		16		no

port, analog

port_tag	analog_masks
:DSW1
:DSW2
:DSW3
:DSW4
:IN0
:IN1
:IN2
:IN3
:IN4

dipswitch

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW1	1

location

name	number	inverted
DSW1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW1	2

location

name	number	inverted
DSW1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW1	4

location

name	number	inverted
DSW1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

Double Up Game Pay Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Double Up Game Pay Rate	DSW1	24

location

name	number	inverted
DSW1	4	no
DSW1	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
90%	0	no
80%	8	no
70%	16	no
60%	24	yes

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW1	32

location

name	number	inverted
DSW1	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW1	64

location

name	number	inverted
DSW1	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW1	128

location

name	number	inverted
DSW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

Main Game Pay Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Main Game Pay Rate	DSW2	3

location

name	number	inverted
DSW2	1	no
DSW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
60%	3	yes
70%	2	no
80%	1	no
90%	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW2	4

location

name	number	inverted
DSW2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW2	8

location

name	number	inverted
DSW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW2	16

location

name	number	inverted
DSW2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW2	32

location

name	number	inverted
DSW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW2	64

location

name	number	inverted
DSW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW2	128

location

name	number	inverted
DSW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW3	1

location

name	number	inverted
DSW4	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW3	2

location

name	number	inverted
DSW4	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW3	4

location

name	number	inverted
DSW4	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW3	8

location

name	number	inverted
DSW4	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	yes
On	0	no

Coin C Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin C Rate	DSW3	112

location

name	number	inverted
DSW4	5	no
DSW4	6	no
DSW4	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
10 Coins/1 Credit	112	no
9 Coins/1 Credit	16	no
6 Coins/1 Credit	32	no
5 Coins/1 Credit	48	no
3 Coins/1 Credit	64	no
2 Coins/1 Credit	80	no
1 Coin/1 Credit	96	yes

4th Coin

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
4th Coin	DSW3	128

location

name	number	inverted
DSW4	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
As Coin A	128	yes
As Hopper Line	0	no

Key In Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Key In Rate	DSW4	7

location

name	number	inverted
DSW3	1	no
DSW3	2	no
DSW3	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Coin/5 Credits	0	no
1 Coin/10 Credits	1	no
1 Coin/20 Credits	2	no
1 Coin/25 Credits	3	no
1 Coin/40 Credits	4	no
1 Coin/50 Credits	5	no
1 Coin/60 Credits	6	no
1 Coin/100 Credits	7	yes

Coin A Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A Rate	DSW4	56

location

name	number	inverted
DSW3	4	no
DSW3	5	no
DSW3	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Coin/1 Credit	56	yes
1 Coin/2 Credits	8	no
1 Coin/4 Credits	16	no
1 Coin/5 Credits	24	no
1 Coin/6 Credits	32	no
1 Coin/10 Credits	40	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW4	64

location

name	number	inverted
DSW3	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW4	128

location

name	number	inverted
DSW3	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no
