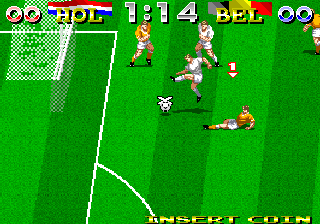

Tecmo World Cup '94 (set 1) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
twcup94	vsystem/gstriker.cpp		no	no	no	yes	Tecmo World Cup '94 (set 1)	1994	Tecmo

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	320	224	60.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
13.u37	524288	42adb463	ec7bcb684489b56f81ab851a9d8f42d54679363b	maincpu	0	good	no
12.u65	262144	f316e7fc	a2215605518e7293774735371c65abcead99bd88	audiocpu	0	good	no
twcup94_hd6473258p10	131072			mcu	0	nodump	no
11.u48	131072	37d6dcb6	679dd8b615497fff23c4638d413b5d4a724d3f2a	fix_tiles	0	good	no
u17	2097152	a5e40a61	a2cb452fb069862570870653b29b045d12caf062	scroll_tiles	0	good	no
u20	2097152	a5e40a61	a2cb452fb069862570870653b29b045d12caf062	scroll_tiles	0	good	no
u11	2097152	dd93fd45	26491815b5443fe6d8b1ef4d795c5151fd75c101	sprites	0	good	no
u12	2097152	8e3c9bd2	bfd23157c836148a3860ccea5191f656fdd98ef4	sprites	200000	good	no
u13	2097152	8db6b3a9	9422cd5d6fb57a7eaa7a13bdf4ccee1f8b57f773	sprites	400000	good	no
u14	2097152	89739c31	29cd779bfe93448fb6cbfe6f8e3661dd659c0d21	sprites	600000	good	no
u86	262144	775f45dc	1a740dd880d9f873e93dfc096fbcae1784b4f522	ymsnd:adpcmb	0	good	no
u104	1048576	df07d0af	356560e164ff222bc9004fe202f829c93244a6c9	ymsnd:adpcma	0	good	no
s2031a.u39	279	66f6020f	b44a9ad51c1987bab14fb044b3ee37d73ec96fa7	plds	0	good	no
s2032a.u64	279	e186728e	c6ad476566d48585944e7f7889667899f654619b	plds	200	good	no
s2033a.u66	279	672aa79b	2e1f0643e537d6040855478f1c5b4a9f117458fe	plds	400	good	no
s2034a.u67	279	92ebeafd	3bf5fd1f12934c3b7076dd1f31820bbb4c4b2bd2	plds	600	good	no
s2035a.u68	279	e3fe7bc9	339adcfa3128f466fb5a216f53b098e6fd9d7d2b	plds	800	good	no
s2036a.u79	279	20a4c0c5	2bef5fca2f17877f23a4c8c5c183f8895f3d18c6	plds	1000	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	16000000
cpu	audiocpu	Zilog Z80	5000000
audio	speaker	Speaker
audio	ymsnd	YM2610 OPNB	8000000

device_ref

name
m68000
z80
vs9209
mb3773
screen
gfxdecode
palette
mb60553
vs920a
vsystem_spr
speaker
generic_latch_8
ym2610

sound

channels
1

feature

type	status	overall
protection	imperfect
graphics	imperfect

input

players	coins	service	tilt
2	2	no	yes

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
joy	1	2	8	no
joy	2	2	8	no

port, analog

port_tag	analog_masks
:DSW1
:DSW2
:P1
:P2
:SYSTEM

dipswitch

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSW1	7

location

name	number	inverted
SW1	1	no
SW1	2	no
SW1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	0	no
3 Coins/1 Credit	1	no
2 Coins/1 Credit	2	no
1 Coin/1 Credit	7	yes
1 Coin/2 Credits	6	no
1 Coin/3 Credits	5	no
1 Coin/4 Credits	4	no
1 Coin/6 Credits	3	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSW1	56

location

name	number	inverted
SW1	4	no
SW1	5	no
SW1	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	0	no
3 Coins/1 Credit	8	no
2 Coins/1 Credit	16	no
1 Coin/1 Credit	56	yes
1 Coin/2 Credits	48	no
1 Coin/3 Credits	40	no
1 Coin/4 Credits	32	no
1 Coin/6 Credits	24	no

Play Time

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Play Time	DSW1	192

location

name	number	inverted
SW1	7	no
SW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
P v CPU 1:00, P v P 1:30	0	no
P v CPU 1:30, P v P 2:00	192	yes
P v CPU 2:00, P v P 2:30	64	no
P v CPU 2:30, P v P 3:00	128	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW2	3

location

name	number	inverted
SW2	1	no
SW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Easy	2	no
Normal	3	yes
Hard	1	no
Very Hard	0	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW2	4

location

name	number	inverted
SW2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	4	yes

Show Dip Configuration

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Show Dip Configuration	DSW2	8

location

name	number	inverted
SW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	yes
On	0	no

Countdown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Countdown	DSW2	16

location

name	number	inverted
SW2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
54 sec	16	yes
60 sec	0	no

Start credit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Start credit	DSW2	32

location

name	number	inverted
SW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	32	yes
2	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	64

location

name	number	inverted
SW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	DSW2	128

location

name	number	inverted
SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no
