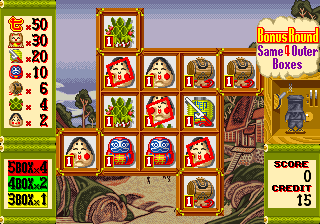

Ukiyo Box (Japan, v1.3.7) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
ukiyobox	excellent/lastbank.cpp		no	no	no	yes	Ukiyo Box (Japan, v1.3.7)	1995	Excellent System	fever13	fever13

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	320	224	60.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no	preliminary

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
5-9d33.u9	262144	6a567f55	087579e420d581439788561abddfe42fdeaaaa88	maincpu	0	good	no
4.u48	65536	33cba6b2	cf7d1c7c6215b2f83c9266f92f46d3cfc0242afc	audiocpu	0	good	no	4.u48
u11	1048576	da59b0d8	86fd3cd77aae22e103d11e697b8b4f70ae8b8197	maincpu:gfx	0	good	no	u11
es-9410.u55	262144	09b5e4d6	cf0235e9cf0577bf932beda7e4fb1b84410a3e0c	oki	0	good	no	es-9410.u55
es-9410.u60	524288	f277afa9	1b5a8abad37b6f19730f99bf97334b4eb2da4399	essnd	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Taito TC0091LVC	7159090
cpu	audiocpu	Zilog Z80	3579545
audio	mono	Speaker
audio	oki	OKI MSM6295 ADPCM	1000000
audio	msm	OKI MSM6585 ADPCM	640000

device_ref

name
tc0091lvc
palette
timer
nvram
coin_hopper
z80
screen
speaker
generic_latch_8
generic_latch_8
okim6295
es8712
hct157
msm6585

sound

channels
1

input

players	coins	service	tilt
1	3	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
gambling		10		no

port, analog

port_tag	analog_masks
:COINS
:DSW1
:DSW2
:DSW3
:DSW4
:IN0
:P1_KEY0
:P1_KEY1
:P1_KEY2
:P1_KEY3
:P1_KEY4
:P2_KEY0
:P2_KEY1
:P2_KEY2
:P2_KEY3
:P2_KEY4
:SPECIAL

dipswitch

Max Bet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Max Bet	DSW1	3

location

name	number	inverted
DSW1	1	no
DSW1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
10	3	yes
20	2	no
50	1	no
90	0	no

Win Percentage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Win Percentage	DSW1	28

location

name	number	inverted
DSW1	3	no
DSW1	4	no
DSW1	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
95%	28	yes
90%	24	no
85%	20	no
80%	16	no
75%	12	no
70%	8	no
65%	4	no
60%	0	no

Hopper Motor

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Hopper Motor	DSW1	32

location

name	number	inverted
DSW1	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	32	yes

Hopper Count

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Hopper Count	DSW1	64

location

name	number	inverted
DSW1	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Sensor SW	64	yes
Micro SW	0	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW1	128

location

name	number	inverted
DSW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	128	yes

Payout calculation

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Payout calculation	DSW2	1

location

name	number	inverted
DSW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Gambling	1	no
Amusement	0	yes

Flip Screen

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Flip Screen	DSW2	2

location

name	number	inverted
DSW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

Double-Up Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Double-Up Difficulty	DSW2	12

location

name	number	inverted
DSW2	3	no
DSW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Easy	8	no
Normal	12	yes
Hard	4	no
Very Hard	0	no

Double-Up Game

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Double-Up Game	DSW2	16

location

name	number	inverted
DSW2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	16	yes

L/R SW Reverse

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
L/R SW Reverse	DSW2	32

location

name	number	inverted
DSW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Auto Stop

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Auto Stop	DSW2	64

location

name	number	inverted
DSW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	64	yes

Auto Start

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Auto Start	DSW2	128

location

name	number	inverted
DSW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	128	yes

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSW3	15

location

name	number	inverted
DSW3	1	no
DSW3	2	no
DSW3	3	no
DSW3	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Coin/100 Credits	7	no
1 Coin/50 Credits	8	no
1 Coin/25 Credits	9	no
1 Coin/20 Credits	10	no
1 Coin/10 Credits	11	no
1 Coin/5 Credits	12	no
1 Coin/3 Credits	13	no
5 Coins/2 Credits	1	no
1 Coin/2 Credits	14	no
2 Coins/3 Credits	5	no
1 Coin/1 Credit	15	yes
2 Coins/1 Credit	6	no
3 Coins/1 Credit	4	no
4 Coins/1 Credit	3	no
5 Coins/1 Credit	2	no
10 Coins/1 Credit	0	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSW3	240

location

name	number	inverted
DSW3	5	no
DSW3	6	no
DSW3	7	no
DSW3	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Coin/100 Credits	112	no
1 Coin/50 Credits	128	no
1 Coin/25 Credits	144	no
1 Coin/20 Credits	160	no
1 Coin/10 Credits	176	no
1 Coin/5 Credits	192	no
1 Coin/3 Credits	208	no
5 Coins/2 Credits	16	no
1 Coin/2 Credits	224	no
2 Coins/3 Credits	80	no
1 Coin/1 Credit	240	yes
2 Coins/1 Credit	96	no
3 Coins/1 Credit	64	no
4 Coins/1 Credit	48	no
5 Coins/1 Credit	32	no
10 Coins/1 Credit	0	no

Coin C

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin C	DSW4	7

location

name	number	inverted
DSW4	1	no
DSW4	2	no
DSW4	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Coin/50 Credits	6	no
1 Coin/1 Credit	7	yes
2 Coins/1 Credit	5	no
3 Coins/1 Credit	4	no
5 Coins/1 Credit	3	no
6 Coins/1 Credit	2	no
9 Coins/1 Credit	1	no
10 Coins/1 Credit	0	no

Credit Limit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Credit Limit	DSW4	56

location

name	number	inverted
DSW4	4	no
DSW4	5	no
DSW4	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1000	56	yes
3000	48	no
5000	40	no
10000	32	no
20000	24	no
30000	16	no
40000	8	no
50000	0	no

Hopper Access

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Hopper Access	DSW4	64

location

name	number	inverted
DSW4	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Slow	0	no
Fast	64	yes

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW4	128

location

name	number	inverted
DSW4	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

Hopper Empty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Hopper Empty	SPECIAL	8

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	yes
On	0	no
