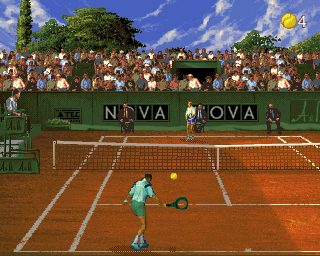

Ultimate Tennis (v 1.4, Japan) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
ultennisj	misc/artmagic.cpp		no	no	no	yes	Ultimate Tennis (v 1.4, Japan)	1993	Art & Magic (Banpresto license)	ultennis	ultennis

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	320	256	49.764608	6666666	428	0	320	313	0	256	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
a+m001d0194-13c-u102-japan.u102	262144	65cee452	49259e8faf289d6d80769f6d44e9d61d15e431c6	maincpu	0	good	no
a+m001d0194-12c-u101-japan.u101	262144	5f4b0ca0	57e9ed60cc0e53eeb4e08c4003138d3bdaec3de7	maincpu	1	good	no
a+m-001-01-a.ic133	2097152	29d9204d	0b2b77a55b8c2877c2e31b63156505584d4ee1f0	gfx	0	good	no	a+m-001-01-a.ic133
a+m001c1293-14a-u151.u151	262144	4e19ca89	ac7e17631ec653f83c4912df6f458b0e1df88096	oki	0	good	no	a+m001b1093_14a_u151.u151

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	12500000
cpu	tms	Texas Instruments TMS34010	40000000
audio	mono	Speaker
audio	oki	OKI MSM6295 ADPCM	1333333

device_ref

name
m68000
tms34010
2816
tlc34076
screen
speaker
okim6295

sound

channels
1

input

players	coins	service	tilt
2	4	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
joy	1	3	8	no
joy	2	3	8	no

port, analog

port_tag	analog_masks
:300000
:300002
:300004
:300006
:300008
:30000a

dipswitch

Button Layout

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Button Layout	300004	1

location

name	number	inverted
SWB	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Triangular	1	yes
Linear	0	no

Start Set At

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Start Set At	300004	2

location

name	number	inverted
SWB	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
0-0	0	no
4-4	2	yes

Sets Per Match

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Sets Per Match	300004	4

location

name	number	inverted
SWB	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	4	yes
3	0	no

Game Duratiob

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Game Duratiob	300004	24

location

name	number	inverted
SWB	4	no
SWB	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
5 Lost Points	24	no
6 Lost Points	8	yes
7 Lost Points	16	no
8 Lost Points	0	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	300004	32

location

name	number	inverted
SWB	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	no
On	0	yes

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	300004	192

location

name	number	inverted
SWB	1	no
SWB	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Easy	192	no
Normal	64	yes
Hard	128	no
Very Hard	0	no

Right Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Right Coinage	300006	7

location

name	number	inverted
SWA	6	no
SWA	7	no
SWA	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
6 Coins/1 Credit	2	no
5 Coins/1 Credit	6	no
4 Coins/1 Credit	1	no
3 Coins/1 Credit	5	no
2 Coins/1 Credit	3	no
1 Coin/1 Credit	7	yes
1 Coin/2 Credits	4	no
1 Coin/4 Credits	0	no

Left Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Left Coinage	300006	56

location

name	number	inverted
SWA	3	no
SWA	4	no
SWA	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	0	no
2 Coins/1 Credit	32	no
1 Coin/1 Credit	56	yes
1 Coin/2 Credits	24	no
1 Coin/3 Credits	40	no
1 Coin/4 Credits	8	no
1 Coin/5 Credits	48	no
1 Coin/6 Credits	16	no

Free Play

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Free Play	300006	64

location

name	number	inverted
SWA	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	300006	128

location

name	number	inverted
SWA	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no
