name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
usafootb	pinball/alvg.cpp	genpin	no	no	yes	yes	U.S.A. Football (R06u)	1993	Alvin G

snap

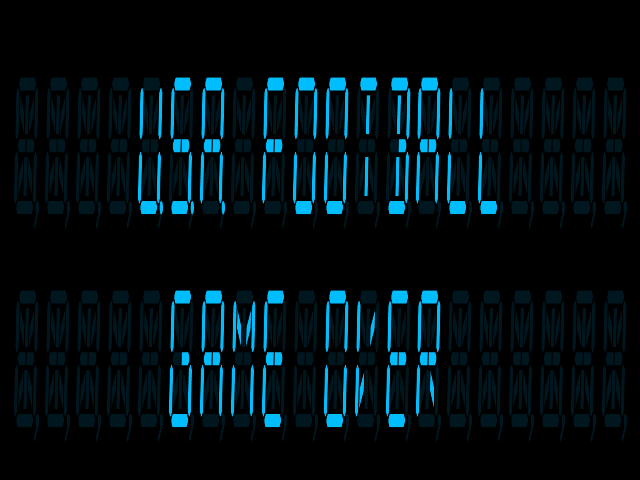

U.S.A. Football (R06u) png snap

U.S.A. Football (R06u) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
usafootb	18075	23/03/2026 18:24:21	640	480	96	96	0	Format24bppRgb	305:MAME 0.286 (mame0286)	de7a7f8e8bae3f36be0c4601549b132b9a97ab2d

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	yes	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
usa_cpu.bin	65536	53b00873	96812c4722026554a830c62eca64f09d25a0de82	maincpu	0	good	no
usa_snd.bin	65536	9d509cbc	0be629945b5102adf75e88661e0f956e32ca77da	audiocpu	0	good	no
usa_vox.bin	262144	baae0aa3	7933bffcf1509ceeea58a4449268c10c9fac554c	oki	0	good	no

chip

type	tag	name	clock
cpu	maincpu	WDC W65C02	2000000
cpu	audiocpu	Motorola MC6809	8000000
audio	mechvol	Speaker
audio	samples	Samples
audio	mono	Speaker
audio	ymsnd	YM3812 OPL2	4000000
audio	oki	OKI MSM6295 ADPCM	1000000

device_ref

tag	name
:maincpu	w65c02
:nvram	nvram
:via0	mos6522
:via1	mos6522
:ppi0	i8255
:ppi1	i8255
:ppi2	i8255
:mechvol	speaker
:samples	samples
:cpuirq	ipt_merge_any_hi
:ppi3	i8255
:audiocpu	mc6809
:vias	mos6522
:mono	speaker
:ymsnd	ym3812
:oki	okim6295

sample

name
bumper
chime1
chime2
chime3
chime4
hole
knocker
sling
coinin
outhole
kickback
drop_target_reset
coil_coinlockout_engage
coil_coinlockout_release
relay_engage
relay_release
solenoid_engage
solenoid_release

sound

channels
2

feature

type	status	overall
sound	unemulated

input

players	coins	service	tilt
1	4	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		74		no

port, analog

port_tag	analog_masks
:X0
:X1
:X10
:X11
:X12
:X2
:X3
:X4
:X5
:X6
:X7
:X8
:X9

clones

name	description
usafootba	U.S.A. Football (R01u)
