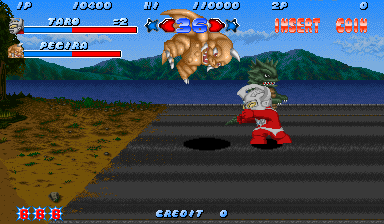

Ultra Toukon Densetsu (Japan) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
utoukond	seta/seta.cpp		no	no	no	yes	Ultra Toukon Densetsu (Japan)	1993	Banpresto

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	384	224	60.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
93uta010.3	524288	c486ef5e	36e4ef4805d543216269f1161028d8a436f72284	maincpu	0	good	no
93uta011.4	524288	978978f7	a7fd3a4ce3a7c6c9d9bdd60df29b4f427abf4f92	maincpu	1	good	no
93uta009.112	65536	67f18483	d9af58dec09c317ccab65553d53d82c8cce2bfb9	audiocpu	0	good	no
93uta04.64	1048576	9cba0538	83278918b6ad160d3e53c178b3cad252e7b0edfb	gfx1	0	good	no
93uta02.201	1048576	884fedfa	3710003bd2e55bba03e2720fcab0fe080163222d	gfx1	100000	good	no
93uta03.63	1048576	818484a5	642252abe56e26aa8376db2e25b192b11586d1e4	gfx1	200000	good	no
93uta01.200	1048576	364de841	a025bd57f60eac05c0d7b4fb69b4b4979f357e6b	gfx1	300000	good	no
93uta05.66	1048576	5e640bfb	37f30ae6ab9d7860da6ca6a343fa9adf4b3d355c	gfx2	0	good	no
93uta07.68	1048576	67bdd036	527b6a67e7a62263bee738dc82d6ff289ab54853	gfx3	0	good	no
93uta06.67	1048576	294c26e4	459ec7f8c8db4f1e3906d5db240298405bda991c	gfx3	100000	good	no
93uta08.69	1048576	3d50bbcd	e9b78d08466e1f9b42f11999bb53b6deceb81a12	x1snd	0	good	no
93ut-a12.u206	260			plds	0	nodump	no
93ut-a13.u14	260			plds	200	nodump	no
93ut-a14.u35	260			plds	400	nodump	no
93ut-a15.u36	260			plds	600	nodump	no
93ut-a16.u110	260			plds	800	nodump	no
93ut-a17.u76	260			plds	a00	nodump	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	16000000
cpu	audiocpu	Zilog Z80	4000000
audio	mono	Speaker
audio	x1snd	Seta X1-010	16000000
audio	ymsnd	YM3438 OPN2C	8000000

device_ref

name
m68000
timer
z80
x1_001
screen
x1_012
x1_012
palette
speaker
generic_latch_8
x1_010
ym3438

sound

channels
1

input

players	coins	service	tilt
2	2	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
joy	1	3	8	no
joy	2	3	8	no

port, analog

port_tag	analog_masks
:COINS
:DSW
:P1
:P2

dipswitch

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	COINS	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	COINS	32

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	COINS	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	COINS	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSW	15

location

name	number	inverted
SW2	1	no
SW2	2	no
SW2	3	no
SW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	2	no
3 Coins/1 Credit	5	no
2 Coins/1 Credit	8	no
3 Coins/2 Credits	4	no
4 Coins/3 Credits	1	no
1 Coin/1 Credit	15	yes
3 Coins/4 Credits	3	no
2 Coins/3 Credits	7	no
1 Coin/2 Credits	14	no
2 Coins/5 Credits	6	no
1 Coin/3 Credits	13	no
1 Coin/4 Credits	12	no
1 Coin/5 Credits	11	no
1 Coin/6 Credits	10	no
1 Coin/7 Credits	9	no
Free Play	0	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSW	240

location

name	number	inverted
SW2	5	no
SW2	6	no
SW2	7	no
SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	32	no
3 Coins/1 Credit	80	no
2 Coins/1 Credit	128	no
5 Coins/3 Credits	0	no
3 Coins/2 Credits	64	no
4 Coins/3 Credits	16	no
1 Coin/1 Credit	240	yes
3 Coins/4 Credits	48	no
2 Coins/3 Credits	112	no
1 Coin/2 Credits	224	no
2 Coins/5 Credits	96	no
1 Coin/3 Credits	208	no
1 Coin/4 Credits	192	no
1 Coin/5 Credits	176	no
1 Coin/6 Credits	160	no
1 Coin/7 Credits	144	no

Lives

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Lives	DSW	768

location

name	number	inverted
SW1	1	no
SW1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	0	no
2	512	no
3	768	yes
4	256	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW	3072

location

name	number	inverted
SW1	3	no
SW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Easy	2048	no
Normal	3072	yes
Hard	1024	no
Hardest	0	no

Flip Screen

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Flip Screen	DSW	4096

location

name	number	inverted
SW1	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4096	yes
On	0	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW	8192

location

name	number	inverted
SW1	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	8192	yes

Bonus Life

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bonus Life	DSW	16384

location

name	number	inverted
SW1	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
100k	16384	yes
150k	0	no

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	DSW	32768

location

name	number	inverted
SW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32768	yes
On	0	no
