VoxClock 3 - mame (0286) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
vclock3	handheld/hh_tms1k.cpp		no	no	no	yes	VoxClock 3	1984	Tandy Corporation

snap

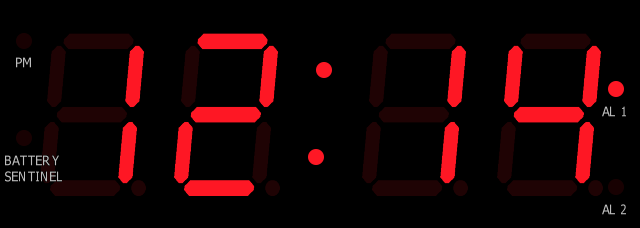

VoxClock 3 png snap

VoxClock 3 jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
vclock3	9260	29/12/2025 11:31:49	640	228	96	96	0	Format24bppRgb	305:MAME 0.254.0 (Apr 27 2023)	a53f7bf553db45ac7f03e4eaca471e46ec454815

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
mp1343.u1	2048	d8fac397	65003ec70ae3d45296c08b10aff85ca29c0f573e	maincpu	0	good	no
tms1100_common1_micro.pla	867	62445fc9	d6297f2a4bc7a870b76cc498d19dbb0ce7d69fec	maincpu:mpla	0	good	no
tms1100_vclock3_output.pla	365	e5b0e95b	6d624bfefd302fd04c02177081cea9416ba344ee	maincpu:opla	0	good	no
cm72010.u3	4096	2054847c	716592f4cd01a9edf16b1061431bd6dc934d9053	tms6100	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Texas Instruments TMS1100	375000
audio	mono	Speaker
audio	tms5100	TMS5110A	640000
audio	speaker	Filtered DAC

device_ref

tag	name
:maincpu	tms1100
:maincpu:mpla	pla
:maincpu:opla	pla
:ac_power	clock
:display	pwm_display
:mono	speaker
:tms5100	tms5110a
:tms6100	tms6100
:speaker	speaker_sound_device

sound

channels
1

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		14		no

port, analog

port_tag	analog_masks
:IN.0
:IN.1
:IN.2
:IN.3
:IN.4
:IN.5
:IN.6

configuration

AC Frequency

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
AC Frequency	IN.4	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
50 Hz	1	no
60 Hz	0	yes

Chime / Announce

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Chime / Announce	IN.4	2

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	no
On	0	yes

Recall

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Recall	IN.4	4

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	no
On	0	yes

Power Source

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Power Source	IN.6	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Battery	0	no
Mains	1	yes

Battery Status

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Battery Status	IN.6	2

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Low	2	no
Normal	0	yes
