Vector 4 - mame (0286) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
vector4	vectorgraphic/vector4.cpp		no	no	no	yes	Vector 4	1982	Vector Graphic

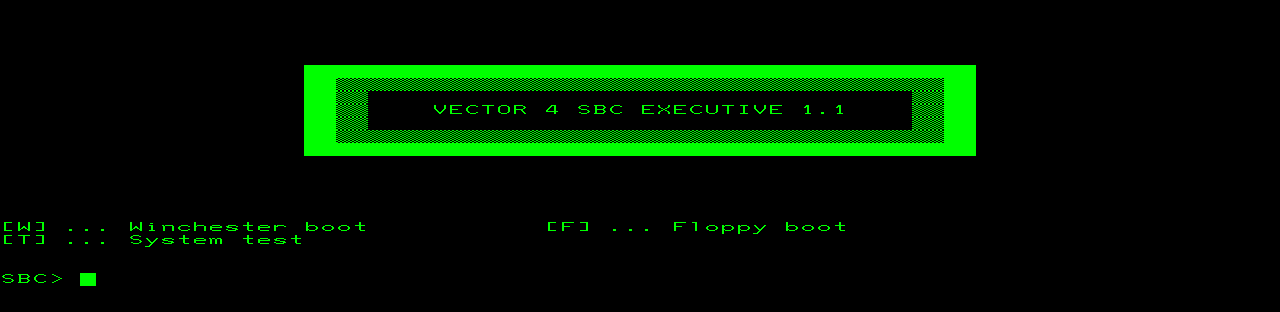

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
vector4	3574	29/12/2025 11:31:49	1280	312	96	96	0	Format24bppRgb	305:MAME 0.254.0 (Apr 27 2023)	b3cad39580d29e892271f97fee4405f30e3f0b53

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
video:screen	raster	0	1280	312	60.000000	32640000	1600	0	1280	340	0	312	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
imperfect	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	status	optional	bios
sbcv11.bin	4096	56c80656	a381bdbb6cdee0ac1dc8b1c1359361a19ba6fe46	maincpu	good	no	v11
u35_sbc_v111_4f11.bin	4096	fcfd42c6	11cd5cf0c3f2d2a30864b8a4b4be51ade03d02ea	maincpu	good	no	v111
sbcexecf.bin	4096	738e10b5	abce22abe9bac6241b1996d078647fe36b638769	maincpu	good	no	v200
cgst60l.bin	4096	e55a404c	4dafd6f588c42081212928d3c4448f10dd461a7a	chargenl	good	no
cgst60r.bin	4096	201d783c	7c2b8988c27b5fa435d31c9b7d4d9ed176c9b8a3	chargenr	good	no

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	5100000
cpu	8088cpu	Intel 8088	5100000
cpu	rs232keyboard:mcu	Intel 8035	3580000
audio	s100:1:dualmodedisk:floppy0:525:flopsndout	Speaker
audio	s100:1:dualmodedisk:floppy0:525:floppysound	Floppy sound	44100
audio	s100:1:dualmodedisk:floppy1:525:flopsndout	Speaker
audio	s100:1:dualmodedisk:floppy1:525:floppysound	Floppy sound	44100
audio	s100:1:dualmodedisk:floppy2:525:flopsndout	Speaker
audio	s100:1:dualmodedisk:floppy2:525:floppysound	Floppy sound	44100
audio	s100:1:dualmodedisk:floppy3:525:flopsndout	Speaker
audio	s100:1:dualmodedisk:floppy3:525:floppysound	Floppy sound	44100
audio	rs232keyboard:mono	Speaker
audio	rs232keyboard:beeper	Beep	786
audio	mono	Speaker
audio	sn	SN76489	2040000

device_ref

tag	name
:maincpu	z80
:8088cpu	i8088
:ram	ram
:video	vectorsbcvideo
:video:crtc	c6545_1
:video:screen	screen
:s100	s100_bus
:s100:1	s100_slot
:s100:1:dualmodedisk	vectordualmode
:s100:1:dualmodedisk:floppy0	floppy_connector
:s100:1:dualmodedisk:floppy0:525	floppy_525_qd
:s100:1:dualmodedisk:floppy0:525:flopsndout	speaker
:s100:1:dualmodedisk:floppy0:525:floppysound	flopsnd
:s100:1:dualmodedisk:floppy1	floppy_connector
:s100:1:dualmodedisk:floppy1:525	floppy_525_qd
:s100:1:dualmodedisk:floppy1:525:flopsndout	speaker
:s100:1:dualmodedisk:floppy1:525:floppysound	flopsnd
:s100:1:dualmodedisk:floppy2	floppy_connector
:s100:1:dualmodedisk:floppy2:525	floppy_525_qd
:s100:1:dualmodedisk:floppy2:525:flopsndout	speaker
:s100:1:dualmodedisk:floppy2:525:floppysound	flopsnd
:s100:1:dualmodedisk:floppy3	floppy_connector
:s100:1:dualmodedisk:floppy3:525	floppy_525_qd
:s100:1:dualmodedisk:floppy3:525:flopsndout	speaker
:s100:1:dualmodedisk:floppy3:525:floppysound	flopsnd
:s100:2	s100_slot
:s100:3	s100_slot
:pit	pit8253
:pit:counter0	pit_counter
:pit:counter1	pit_counter
:pit:counter2	pit_counter
:rs232keyboard	vector4_kbd
:rs232keyboard:mcu	i8035
:rs232keyboard:mono	speaker
:rs232keyboard:beeper	beep
:keyboard_clock	clock
:uart0	i8251
:uart1	i8251
:rs232com	rs232
:uart2	i8251
:rs232prtr	rs232
:cent_data_out	output_latch
:centprtr	centronics
:ppi	i8255
:mono	speaker
:sn	sn76489

biosset

name	description	default
v11	SBC ver 1.1	no
v111	SBC ver 1.11	no
v200	SBC ver 2.00	no

sound

channels
6

feature

type	status	overall
timing	imperfect
printer	unemulated

ramoption

name	default
256K
128K	yes

device, instance

type	tag	interface	name	briefname
floppydisk	s100:1:dualmodedisk:floppy0:525	floppy_5_25	floppydisk1	flop1
floppydisk	s100:1:dualmodedisk:floppy1:525	floppy_5_25	floppydisk2	flop2
floppydisk	s100:1:dualmodedisk:floppy2:525	floppy_5_25	floppydisk3	flop3
floppydisk	s100:1:dualmodedisk:floppy3:525	floppy_5_25	floppydisk4	flop4

device, extension

type	tag	interface	extension_names
floppydisk	s100:1:dualmodedisk:floppy0:525	floppy_5_25	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, vgi
floppydisk	s100:1:dualmodedisk:floppy1:525	floppy_5_25	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, vgi
floppydisk	s100:1:dualmodedisk:floppy2:525	floppy_5_25	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, vgi
floppydisk	s100:1:dualmodedisk:floppy3:525	floppy_5_25	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, vgi

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keyboard		91		no

port, analog

port_tag	analog_masks
:rs232keyboard:Y0
:rs232keyboard:Y1
:rs232keyboard:Y10
:rs232keyboard:Y11
:rs232keyboard:Y2
:rs232keyboard:Y3
:rs232keyboard:Y4
:rs232keyboard:Y5
:rs232keyboard:Y6
:rs232keyboard:Y7
:rs232keyboard:Y8
:rs232keyboard:Y9
:video:SBC_VIDEO_CONF

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
s100:1	dualmodedisk	vectordualmode	yes
s100:1:dualmodedisk:floppy0	525	floppy_525_qd	yes
s100:1:dualmodedisk:floppy1	525	floppy_525_qd	yes
s100:1:dualmodedisk:floppy2	525	floppy_525_qd	yes
s100:1:dualmodedisk:floppy3	525	floppy_525_qd	yes
s100:2	dualmodedisk	vectordualmode	no
s100:3	dualmodedisk	vectordualmode	no
rs232com	terminal	serial_terminal	no
rs232com	sunkbd	sunkbd_adaptor	no
rs232com	votraxtnt	serial_votraxtnt	no
rs232com	rs_printer	rs_serial_printer	no
rs232com	dec_loopback	dec_rs232_loopback	no
rs232com	h19	serial_heath_h19	no
rs232com	ie15	ie15_terminal	no
rs232com	null_modem	null_modem	no
rs232com	keyboard	serial_keyboard	no
rs232com	patch	rs232_patch_box	no
rs232com	swtpc8212	swtpc8212_terminal	no
rs232com	printer	serial_printer	no
rs232com	scorpion	scorpion_ic	no
rs232com	loopback	rs232_loopback	no
rs232com	mockingboard	mockingboardd	no
rs232com	msystems_mouse	rs232_mouse_hle_msystems	no
rs232com	nss_tvi	nss_tvinterface	no
rs232com	rs232_sync_io	rs232_sync_io	no
rs232com	pty	pseudo_terminal	no
rs232prtr	terminal	serial_terminal	no
rs232prtr	sunkbd	sunkbd_adaptor	no
rs232prtr	votraxtnt	serial_votraxtnt	no
rs232prtr	rs_printer	rs_serial_printer	no
rs232prtr	dec_loopback	dec_rs232_loopback	no
rs232prtr	h19	serial_heath_h19	no
rs232prtr	ie15	ie15_terminal	no
rs232prtr	null_modem	null_modem	no
rs232prtr	keyboard	serial_keyboard	no
rs232prtr	patch	rs232_patch_box	no
rs232prtr	swtpc8212	swtpc8212_terminal	no
rs232prtr	printer	serial_printer	no
rs232prtr	scorpion	scorpion_ic	no
rs232prtr	loopback	rs232_loopback	no
rs232prtr	mockingboard	mockingboardd	no
rs232prtr	msystems_mouse	rs232_mouse_hle_msystems	no
rs232prtr	nss_tvi	nss_tvinterface	no
rs232prtr	rs232_sync_io	rs232_sync_io	no
rs232prtr	pty	pseudo_terminal	no
centprtr	nlq401	nlq401	no
centprtr	smartboard	centronics_smartboard	no
centprtr	chessmec	centronics_chessmec	no
centprtr	samdac	centronics_samdac	no
centprtr	covox_stereo	covox_stereo	no
centprtr	adaptator	adaptator_multitap	no
centprtr	digiblst	cpcdigiblst	no
centprtr	lx800	lx800	no
centprtr	jx80	epson_jx80	no
centprtr	ap2000	ap2000	no
centprtr	ex800	ex800	no
centprtr	fx80	epson_fx80	no
centprtr	rx80	epson_rx80	no
centprtr	mz1p16	mz1p16	no
centprtr	covox	covox	no
centprtr	pl80	comx_pl80	no
centprtr	lx810l	lx810l	no
centprtr	p72	p72	no
centprtr	printer	centronics_printer	no

configuration

Color Monitor

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Color Monitor	video:SBC_VIDEO_CONF	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	1	no

Alpha Graphic Memory Block

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Alpha Graphic Memory Block	video:SBC_VIDEO_CONF	14

setting

name	value	default
0x00000-0x07FFF	0	no
0x08000-0x0FFFF	2	yes
0x10000-0x17FFF	4	no
0x18000-0x1FFFF	6	no
0x20000-0x27FFF	8	no
0x28000-0x2FFFF	10	no
0x30000-0x37FFF	12	no
0x38000-0x3FFFF	14	no
