VL70-m - mame (0286) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
vl70	yamaha/ymvl70.cpp		no	no	no	yes	VL70-m	1996	Yamaha

snap

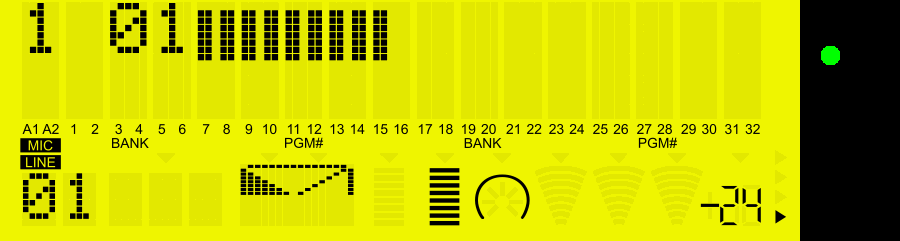

VL70-m png snap

VL70-m jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
vl70	24788	29/12/2025 11:31:49	900	241	96	96	0	Format24bppRgb	305:MAME 0.208 (Mar 27 2019)	379b4beede9eb94cb4983265627437ad2175b905

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
lcd:screen	svg	0	1280	386	60.000000	29644800	1280	0	1280	386	0	386	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
vl70m_v111_27c160.bin	2097152	efdba9f0	cfa9fb7d2a991e4752393c9677e4ddcbe10866c7	vl70cpu	0	good	no

chip

type	tag	name	clock
cpu	vl70cpu	Hitachi H8/3003	10000000
cpu	dspv	Yamaha DSPV audio simulation DSP (YSS217-F)	22579200
audio	speaker	Speaker
audio	dspv	Yamaha DSPV audio simulation DSP (YSS217-F)	22579200

device_ref

tag	name
:vl70cpu	h83003
:vl70cpu:intc	h8h_intc
:vl70cpu:adc	h8_adc_3337
:vl70cpu:dma	h8h_dma
:vl70cpu:dma:0	h8h_dma_channel
:vl70cpu:dma:1	h8h_dma_channel
:vl70cpu:dma:2	h8h_dma_channel
:vl70cpu:dma:3	h8h_dma_channel
:vl70cpu:port4	h8_digital_port
:vl70cpu:port5	h8_digital_port
:vl70cpu:port6	h8_digital_port
:vl70cpu:port7	h8_digital_port
:vl70cpu:port8	h8_digital_port
:vl70cpu:port9	h8_digital_port
:vl70cpu:porta	h8_digital_port
:vl70cpu:portb	h8_digital_port
:vl70cpu:portc	h8_digital_port
:vl70cpu:timer16	h8_timer16
:vl70cpu:timer16:0	h8h_timer16_channel
:vl70cpu:timer16:1	h8h_timer16_channel
:vl70cpu:timer16:2	h8h_timer16_channel
:vl70cpu:timer16:3	h8h_timer16_channel
:vl70cpu:timer16:4	h8h_timer16_channel
:vl70cpu:sci0	h8_sci
:vl70cpu:sci1	h8_sci
:vl70cpu:watchdog	h8_watchdog
:lcd	mulcd
:lcd:screen	screen
:speaker	speaker
:dspv	dspv
:meg	meg
:mdin_a	midi_port
:mdin_a:midiin	midiin_port
:mdin_a:midiin:midiinimg	midiin
:mdin_b	midi_port
:mdin_b:midiin	midiin_port
:mdin_b:midiin:midiinimg	midiin
:mdout	midi_port
:mdout:midiout	midiout_port
:mdout:midiout:midioutimg	midiout
