VP415 - mame (0286) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
vp415	skeleton/vp415.cpp		no	no	no	yes	VP415	1983	Philips

snap

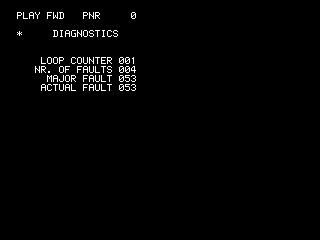

VP415 png snap

VP415 jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
vp415	1241	29/12/2025 11:31:49	320	240	96	96	0	Format24bppRgb	305:MAME 0.197 (Apr 25 2018)	f4288dfa7a6c20d8337019d4314d7e49c5eee620

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	320	240	50.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
r.3104 103 6803.6_drive.ic4	16384	02e4273e	198f7ac8f2a880f38046c9d9075ce32f3b730bd4	driverom	0	good	no
s.3104 103 6804.9_control.ic2	65536	10564765	8eb6cff7ca7cbfcb3db8b04b697cdd7e364be805	controlrom	0	good	no
d8041ahc 152.7252	1024	2972d4b2	e08086714fa5be1a67feac8f64210b21bb410dd3	ctrlmcu	0	good	no
w.3104 103 6805.3_cpu	16384	c2cf4f25	e55e1ac917958eb42244bff17a0016b74627c8fa	datacpu	0	good	no
w.3104 103 6806.3_cpu	16384	14a45ea0	fa028d01094be91e3480c9ad35d46b5546f9ff0f	datacpu	4000	good	no
w.3104 103 6807.0_cpu	16384	19c2bc87	152f8c645588be9fc0dbc840368ab33a13a04e62	descramblerom	0	good	no
w.3104 103 6808.0_cpu	16384	bdb601e0	4f769aa62b756b157ba9ac8d3ae8bd1228821ff9	syncrom	0	good	no
d8041ahc 152.7211	1024	2972d4b2	e08086714fa5be1a67feac8f64210b21bb410dd3	datamcu	0	good	no

chip

type	tag	name	clock
cpu	datacpu	Zilog Z80	4000000
cpu	datamcu	Intel 8041A	4000000
cpu	ctrlcpu	Intel 8031	11059200
cpu	ctrlmcu	Intel 8041A	4000000
cpu	drivecpu	Intel 8031	12000000

device_ref

tag	name
:datacpu	z80
:datamcu	i8041a
:ncr5385	ncr5385
:ctrlcpu	i8031
:ctrlmcu	i8041a
:drivecpu	i8031
:i8155	i8155
:i8255	i8255
:mb88303	mb88303
:saa1043	saa1043
:screen	screen

sound

channels
0

feature

type	status	overall
sound	unemulated

input

players	coins	service	tilt
1		no	no

port, analog

port_tag	analog_masks
:SWITCHES

dipswitch

BRA (unknown purpose)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
BRA (unknown purpose)	SWITCHES	4

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	4	no
Off	0	yes

BRB (unknown purpose)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
BRB (unknown purpose)	SWITCHES	8

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	8	no
Off	0	yes

DUMP (unknown purpose)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DUMP (unknown purpose)	SWITCHES	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	16	no
Off	0	yes

Remote Control IR/Euro

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Remote Control IR/Euro	SWITCHES	32

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
IR	32	no
Euro	0	yes

REPLAY (unknown purpose)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
REPLAY (unknown purpose)	SWITCHES	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	64	no
Off	0	yes

RESI (unknown purpose)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
RESI (unknown purpose)	SWITCHES	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	128	no
Off	0	yes
