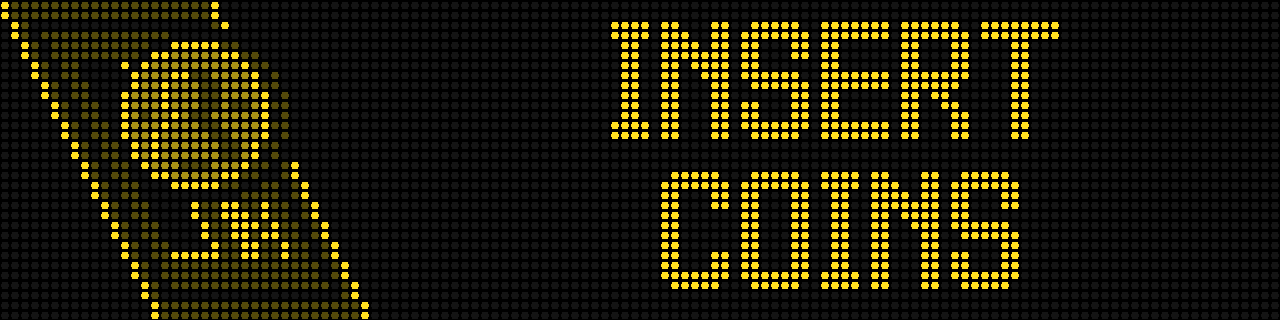

Wack-A-Doodle-Doo (redemption, CPU 1.00, display A1.01) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
wackadoo	pinball/whitestar.cpp	genpin	no	no	yes	yes	Wack-A-Doodle-Doo (redemption, CPU 1.00, display A1.01)	1998	Sega

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
decodmd:dmd	raster	0	128	32	60.000000	245760	128	0	128	32	0	32	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	yes	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
wackcpu.100	131072	995e0219	57b2352a5a96e71ff48f838fde87a158afbf3701	maincpu	0	good	no
wackdisp.bin	524288	8b46f074	38a98fff56186d1a152e2c2e321496fd24e9ad56	decodmd	0	good	no
wacku7.bin	65536	99df3022	5a38cf0816b95ea399d659d724b3259fadb42a62	decobsmt:soundcpu	0	good	no
wacku17.bin	524288	1876e659	1ff3a6d7a7b2582d0482eae024efa078d0a61dbe	decobsmt:bsmt	0	good	no
wacku21.bin	524288	a3207296	19af8ebab298a353fe42fc297b61182d8f772347	decobsmt:bsmt	80000	good	no
16v8d.u213	279	942d99fd	db33b16e582c6762ac6843a3613edb733cbeb499	plds	0	baddump	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6809E	2000000
cpu	decobsmt:soundcpu	Motorola MC6809E	2000000
cpu	decobsmt:bsmt:bsmt2000	Texas Instruments TMS32015	24000000
cpu	decodmd:dmdcpu	Motorola MC6809E	2000000
audio	mechvol	Speaker
audio	samples	Samples
audio	speaker	Speaker
audio	decobsmt	Data East/Sega/Stern BSMT2000 Sound Board
audio	decobsmt:bsmt	BSMT2000	24000000

device_ref

name
mc6809e
nvram
speaker
samples
speaker
decobsmt
mc6809e
bsmt2000
tms32015
decodmd2
mc6809e
timer
mc6845
screen

sample

name
bumper
chime1
chime2
chime3
chime4
hole
knocker
sling
coinin
outhole
kickback
drop_target_reset
coil_coinlockout_engage
coil_coinlockout_release
relay_engage
relay_release
solenoid_engage
solenoid_release

sound

channels
2

feature

type	status	overall
sound	unemulated

input

players	coins	service	tilt
1	3	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
keypad		66		no

port, analog

port_tag	analog_masks
:DEDICATED
:DSW0
:X0
:X1
:X2
:X3
:X4
:X5
:X6
:X7
