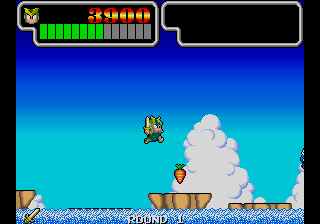

Wonder Boy III - Monster Lair (set 1, Japan, System 16A) (bootleg of FD1094 317-0084 set) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
wb31d	sega/segas16a.cpp		no	no	no	yes	Wonder Boy III - Monster Lair (set 1, Japan, System 16A) (bootleg of FD1094 317-0084 set)	1988	bootleg	wb3	wb3

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	320	224	60.000000	5376240	342	0	320	262	0	224	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
bootleg_epr12084.bin	65536	0cfe1b00	b4e50bb0d677647a71c1d3adac9f955774e3fa0e	maincpu	0	good	no
bootleg_epr12082.bin	65536	9e324162	49cbec212bec832722b4816e2186e6cb1c204b0e	maincpu	1	good	no
epr-12085.bin	65536	0962098b	150fc439dd5e773bef706f058abdb4d2ec44e355	maincpu	20000	good	no
epr-12083.bin	65536	3d631a8e	4940ff6cf380fb914876ade39ea37f42b79bf11d	maincpu	20001	good	no
epr-12086.bin	65536	45b949df	84390d16da00b775988e5f6c20950cb2304b1a74	gfx1	0	good	no
epr-12087.bin	65536	6f0396b7	0a340f2b58e5ecfe504197a8fd2111181e868a3e	gfx1	10000	good	no
epr-12088.bin	65536	ba8c0749	7d996c7a1ad249c06ef7ec9c87a83710c98005d3	gfx1	20000	good	no
epr-12090.b1	65536	aeeecfca	496124b170a725ad863c741d4e021ab947511e4c	sprites	1	good	no	epr-12090.b1
epr-12094.b5	65536	615e4927	d23f164973afa770714e284a77ddf10f18cc596b	sprites	0	good	no	epr-12094.b5
epr-12091.b2	65536	8409a243	bcbb9510a6499d8147543d6befa5a49f4ac055d9	sprites	10001	good	no	epr-12091.b2
epr-12095.b6	65536	e774ec2c	a4aa15ec7be5539a740ad02ff720458018dbc536	sprites	10000	good	no	epr-12095.b6
epr-12092.b3	65536	5c2f0d90	e0fbc0f841e4607ad232931368b16e81440a75c4	sprites	20001	good	no	epr-12092.b3
epr-12096.b7	65536	0cd59d6e	caf754a461feffafcfe7bfc6e89da76c4db257c5	sprites	20000	good	no	epr-12096.b7
epr-12093.b4	65536	4891e7bb	1be04fcabe9bfa8cf746263a5bcca67902a021a0	sprites	30001	good	no	epr-12093.b4
epr-12097.b8	65536	e645902c	497cfcf6c25cc2e042e16dbcb1963d2223def15a	sprites	30000	good	no	epr-12097.b8
epr-12089.bin	32768	8321eb0b	61cf95833c0aa38e35fc18db39d4ec74e4aaf01e	soundcpu	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	10000000
cpu	soundcpu	Zilog Z80	4000000
audio	speaker	Speaker
audio	ymsnd	YM2151 OPM	4000000

device_ref

name
m68000
z80
nvram
watchdog
i8255
screen
sega_sys16a_sprite
segaic16_video
gfxdecode
palette
speaker
generic_latch_8
ym2151

sound

channels
1

input

players	coins	service	tilt
2	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
joy	1	3	8	no
joy	2	3	8	no

port, analog

port_tag	analog_masks
:DSW1
:DSW2
:P1
:P2
:SERVICE
:UNUSED

dipswitch

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSW1	15

location

name	number	inverted
SW1	1	no
SW1	2	no
SW1	3	no
SW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	7	no
3 Coins/1 Credit	8	no
2 Coins/1 Credit	9	no
2 Coins/1 Credit, 5/3, 6/4	5	no
2 Coins/1 Credit, 4/3	4	no
1 Coin/1 Credit	15	yes
1 Coin/1 Credit, 5/6	3	no
1 Coin/1 Credit, 4/5	2	no
1 Coin/1 Credit, 2/3	1	no
2 Coins/3 Credits	6	no
1 Coin/2 Credits	14	no
1 Coin/3 Credits	13	no
1 Coin/4 Credits	12	no
1 Coin/5 Credits	11	no
1 Coin/6 Credits	10	no
Free Play (if Coin B too) or 1/1	0	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSW1	240

location

name	number	inverted
SW1	5	no
SW1	6	no
SW1	7	no
SW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	112	no
3 Coins/1 Credit	128	no
2 Coins/1 Credit	144	no
2 Coins/1 Credit, 5/3, 6/4	80	no
2 Coins/1 Credit, 4/3	64	no
1 Coin/1 Credit	240	yes
1 Coin/1 Credit, 5/6	48	no
1 Coin/1 Credit, 4/5	32	no
1 Coin/1 Credit, 2/3	16	no
2 Coins/3 Credits	96	no
1 Coin/2 Credits	224	no
1 Coin/3 Credits	208	no
1 Coin/4 Credits	192	no
1 Coin/5 Credits	176	no
1 Coin/6 Credits	160	no
Free Play (if Coin A too) or 1/1	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	1

location

name	number	inverted
SW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW2	2

location

name	number	inverted
SW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	no
On	0	yes

Lives

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Lives	DSW2	12

location

name	number	inverted
SW2	3	no
SW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
2	0	no
3	12	yes
4	8	no
5	4	no

Bonus Life

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bonus Life	DSW2	16

location

name	number	inverted
SW2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
50k/100k/180k/300k	16	yes
50k/150k/300k	0	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW2	32

location

name	number	inverted
SW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Normal	32	yes
Hard	0	no

Test Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Test Mode	DSW2	64

location

name	number	inverted
SW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	64	yes
Yes	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	128

location

name	number	inverted
SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no
