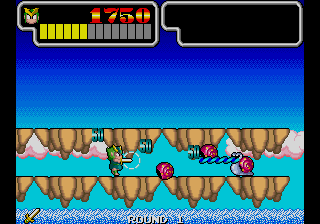

Wonder Boy III - Monster Lair (set 2, Japan, System 16B) (bootleg of FD1094 317-0085 set) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
wb32d	sega/segas16b.cpp		no	no	no	yes	Wonder Boy III - Monster Lair (set 2, Japan, System 16B) (bootleg of FD1094 317-0085 set)	1988	bootleg	wb3	wb3

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	320	224	60.054389	6293700	400	0	320	262	0	224	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
bootleg_epr-12098.a1	65536	41a46e75	6053aada74be9bf26893f73384a2a52f2bf5561e	maincpu	1	good	no
bootleg_epr-12100.a4	65536	15e3117e	ec03366ab36371e568ece13fa4ef3fd4dbf121a3	maincpu	0	good	no
epr-12099.a2	65536	3e243b45	2a079553d1b61aaf18025847570003b79c8d6edf	maincpu	20001	good	no
epr-12101.a5	65536	6146492b	93515578a6ccf770944fea86d2f3200fa08f5075	maincpu	20000	good	no
epr-12124.b9	65536	dacefb6f	789a5a99ad9419aee9da5397bcea34452ea8b4b3	gfx1	0	good	no	epr-12124.a14
epr-12125.b10	65536	9fc36df7	b39ccc687489e9781181197505fc78aa5cf7ea55	gfx1	10000	good	no	epr-12125.a15
epr-12126.b11	65536	a693fd94	38e5446f41b6793a8e4134fdd92b02b86e3589f7	gfx1	20000	good	no	epr-12126.a16
epr-12090.b1	65536	aeeecfca	496124b170a725ad863c741d4e021ab947511e4c	sprites	1	good	no	epr-12090.b1
epr-12094.b5	65536	615e4927	d23f164973afa770714e284a77ddf10f18cc596b	sprites	0	good	no	epr-12094.b5
epr-12091.b2	65536	8409a243	bcbb9510a6499d8147543d6befa5a49f4ac055d9	sprites	20001	good	no	epr-12091.b2
epr-12095.b6	65536	e774ec2c	a4aa15ec7be5539a740ad02ff720458018dbc536	sprites	20000	good	no	epr-12095.b6
epr-12092.b3	65536	5c2f0d90	e0fbc0f841e4607ad232931368b16e81440a75c4	sprites	40001	good	no	epr-12092.b3
epr-12096.b7	65536	0cd59d6e	caf754a461feffafcfe7bfc6e89da76c4db257c5	sprites	40000	good	no	epr-12096.b7
epr-12093.b4	65536	4891e7bb	1be04fcabe9bfa8cf746263a5bcca67902a021a0	sprites	60001	good	no	epr-12093.b4
epr-12097.b8	65536	e645902c	497cfcf6c25cc2e042e16dbcb1963d2223def15a	sprites	60000	good	no	epr-12097.b8
epr-12127.a7	32768	0bb901bb	c81b198df8e3b0ec568032c76addf0d1a1711194	soundcpu	0	good	no	epr-12127.a10

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	10000000
cpu	soundcpu	Zilog Z80	5000000
audio	mono	Speaker
audio	ym2151	YM2151 OPM	4000000
audio	upd	NEC uPD7759	640000
audio	netlist	Netlist Sound Device

device_ref

name
m68000
z80
nvram
sega_315_5195
gfxdecode
palette
screen
sega_sys16b_sprite
segaic16_video
speaker
ym2151
upd7759
netlist_sound
nl_stream_in
nl_stream_in
nl_stream_in
nl_stream_out

sound

channels
1

input

players	coins	service	tilt
2	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
joy	1	3	8	no
joy	2	3	8	no

port, analog

port_tag	analog_masks
:DSW1
:DSW2
:P1
:P2
:SERVICE
:UNUSED

dipswitch

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSW1	15

location

name	number	inverted
SW1	1	no
SW1	2	no
SW1	3	no
SW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	7	no
3 Coins/1 Credit	8	no
2 Coins/1 Credit	9	no
2 Coins/1 Credit, 5/3, 6/4	5	no
2 Coins/1 Credit, 4/3	4	no
1 Coin/1 Credit	15	yes
1 Coin/1 Credit, 5/6	3	no
1 Coin/1 Credit, 4/5	2	no
1 Coin/1 Credit, 2/3	1	no
2 Coins/3 Credits	6	no
1 Coin/2 Credits	14	no
1 Coin/3 Credits	13	no
1 Coin/4 Credits	12	no
1 Coin/5 Credits	11	no
1 Coin/6 Credits	10	no
Free Play (if Coin B too) or 1/1	0	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSW1	240

location

name	number	inverted
SW1	5	no
SW1	6	no
SW1	7	no
SW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	112	no
3 Coins/1 Credit	128	no
2 Coins/1 Credit	144	no
2 Coins/1 Credit, 5/3, 6/4	80	no
2 Coins/1 Credit, 4/3	64	no
1 Coin/1 Credit	240	yes
1 Coin/1 Credit, 5/6	48	no
1 Coin/1 Credit, 4/5	32	no
1 Coin/1 Credit, 2/3	16	no
2 Coins/3 Credits	96	no
1 Coin/2 Credits	224	no
1 Coin/3 Credits	208	no
1 Coin/4 Credits	192	no
1 Coin/5 Credits	176	no
1 Coin/6 Credits	160	no
Free Play (if Coin A too) or 1/1	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	1

location

name	number	inverted
SW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW2	2

location

name	number	inverted
SW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	no
On	0	yes

Lives

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Lives	DSW2	12

location

name	number	inverted
SW2	3	no
SW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
2	0	no
3	12	yes
4	8	no
5	4	no

Bonus Life

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bonus Life	DSW2	16

location

name	number	inverted
SW2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
50k/100k/180k/300k	16	yes
50k/150k/300k	0	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW2	32

location

name	number	inverted
SW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Normal	32	yes
Hard	0	no

Test Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Test Mode	DSW2	64

location

name	number	inverted
SW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	64	yes
Yes	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	128

location

name	number	inverted
SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no
