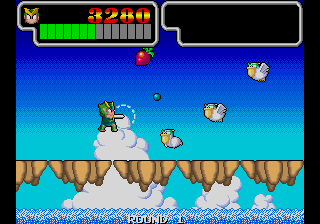

Wonder Boy III - Monster Lair (bootleg) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
wb3bbl	sega/system16.cpp		no	no	no	yes	Wonder Boy III - Monster Lair (bootleg)	1988	bootleg	wb3	wb3

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	320	224	60.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
wb3_03	65536	0019ab3b	89d49a437690fa6e0c35bb9f1450042f89504714	maincpu	0	good	no
wb3_05	65536	196e17ee	71e4345b2c3d1612a3d424c9310fad1e23c8a9f7	maincpu	1	good	no
wb3_02	65536	c87350cb	55a8cb68d70b6060dd9a55e281e216ce3917ea5b	maincpu	20000	good	no
wb3_04	65536	565d5035	e28a132f1a4ce9466945e231c54502178748af98	maincpu	20001	good	no
wb3_14	65536	d3f20bca	0a87f709f8e2a913473512ede408e2cbc535443f	tiles	0	good	no
wb3_15	65536	96ff9d52	791a9da4860e0d42fba98f80a3c6725ad8c73e33	tiles	10000	good	no
wb3_16	65536	afaf0d31	d4309329a0a543250788146b63b27ff058c02fc3	tiles	20000	good	no
epr12090.b1	65536	aeeecfca	496124b170a725ad863c741d4e021ab947511e4c	sprites	1	good	no	epr-12090.b1
epr12094.b5	65536	615e4927	d23f164973afa770714e284a77ddf10f18cc596b	sprites	0	good	no	epr-12094.b5
epr12091.b2	65536	8409a243	bcbb9510a6499d8147543d6befa5a49f4ac055d9	sprites	20001	good	no	epr-12091.b2
epr12095.b6	65536	e774ec2c	a4aa15ec7be5539a740ad02ff720458018dbc536	sprites	20000	good	no	epr-12095.b6
epr12092.b3	65536	5c2f0d90	e0fbc0f841e4607ad232931368b16e81440a75c4	sprites	40001	good	no	epr-12092.b3
epr12096.b7	65536	0cd59d6e	caf754a461feffafcfe7bfc6e89da76c4db257c5	sprites	40000	good	no	epr-12096.b7
epr12093.b4	65536	4891e7bb	1be04fcabe9bfa8cf746263a5bcca67902a021a0	sprites	60001	good	no	epr-12093.b4
epr12097.b8	65536	e645902c	497cfcf6c25cc2e042e16dbcb1963d2223def15a	sprites	60000	good	no	epr-12097.b8
epr12127.a10	32768	0bb901bb	c81b198df8e3b0ec568032c76addf0d1a1711194	soundcpu	0	good	no	epr-12127.a10

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	10000000
cpu	soundcpu	Zilog Z80	4000000
audio	speaker	Speaker
audio	ymsnd	YM2151 OPM	4000000

device_ref

name
m68000
screen
gfxdecode
palette
generic_latch_8
bootleg_sys16a_sprite
z80
speaker
ym2151

sound

channels
1

feature

type	status	overall
graphics	imperfect

input

players	coins	service	tilt
2	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
joy	1	3	8	no
joy	2	3	8	no

port, analog

port_tag	analog_masks
:DSW1
:DSW2
:P1
:P2
:SERVICE

dipswitch

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSW1	15

location

name	number	inverted
SW1	1	no
SW1	2	no
SW1	3	no
SW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	7	no
3 Coins/1 Credit	8	no
2 Coins/1 Credit	9	no
2 Coins/1 Credit 5/3 6/4	5	no
2 Coins/1 Credit 4/3	4	no
1 Coin/1 Credit	15	yes
1 Coin/1 Credit 2/3	1	no
1 Coin/1 Credit 4/5	2	no
1 Coin/1 Credit 5/6	3	no
2 Coins/3 Credits	6	no
1 Coin/2 Credits	14	no
1 Coin/3 Credits	13	no
1 Coin/4 Credits	12	no
1 Coin/5 Credits	11	no
1 Coin/6 Credits	10	no
Free Play (if Coin B too) or 1/1	0	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSW1	240

location

name	number	inverted
SW1	5	no
SW1	6	no
SW1	7	no
SW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	112	no
3 Coins/1 Credit	128	no
2 Coins/1 Credit	144	no
2 Coins/1 Credit 5/3 6/4	80	no
2 Coins/1 Credit 4/3	64	no
1 Coin/1 Credit	240	yes
1 Coin/1 Credit 2/3	16	no
1 Coin/1 Credit 4/5	32	no
1 Coin/1 Credit 5/6	48	no
2 Coins/3 Credits	96	no
1 Coin/2 Credits	224	no
1 Coin/3 Credits	208	no
1 Coin/4 Credits	192	no
1 Coin/5 Credits	176	no
1 Coin/6 Credits	160	no
Free Play (if Coin A too) or 1/1	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	1

location

name	number	inverted
SW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW2	2

location

name	number	inverted
SW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	no
On	0	yes

Lives

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Lives	DSW2	12

location

name	number	inverted
SW2	3	no
SW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
2	0	no
3	12	yes
4	8	no
5	4	no

Bonus Life

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bonus Life	DSW2	16

location

name	number	inverted
SW2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
50k/100k/180k/300k	16	yes
50k/150k/300k	0	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW2	32

location

name	number	inverted
SW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Normal	32	yes
Hard	0	no

Test Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Test Mode	DSW2	64

location

name	number	inverted
SW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	64	yes
Yes	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	128

location

name	number	inverted
SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no
