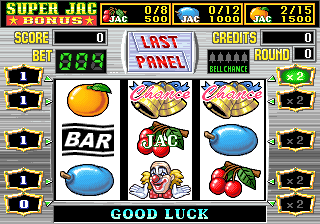

Wonder Circus (Japan, v1.1.1) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
wcircus	excellent/lastbank.cpp		no	no	no	yes	Wonder Circus (Japan, v1.1.1)	199?	Cobra

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	320	224	60.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
imperfect	good	supported	no	no	no	no	preliminary

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
6.u9	262144	6cb29023	e1a980f789d4c66ddd80e819d0a94991a5ad1f2b	maincpu	0	good	no
3.u48	65536	ec8a0ccc	84ffb5c9614764500f41cff8f0d6d5ad9f0d8084	audiocpu	0	good	no
27c802.u11	1048576	fefee118	21c81e4a7d5ac86e1ebb452647a1908fd4ee9600	maincpu:gfx	0	good	no
5.u55	262144	390911e9	10ed6fca1a0d183f47c231503a3077faab0d593e	oki	0	good	no
7.u60	524288	d018ed97	02eb6559805f81f371d39b9c0660cd6d9d392656	essnd	0	good	no
gal16v8b.u45	279	02e1f2e9	25ae98facfed2796bfc1ad33cce73c5074edd135	plds	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Taito TC0091LVC	7159090
cpu	audiocpu	Zilog Z80	3579545
audio	mono	Speaker
audio	oki	OKI MSM6295 ADPCM	1000000
audio	msm	OKI MSM6585 ADPCM	640000

device_ref

name
tc0091lvc
palette
timer
nvram
coin_hopper
z80
screen
speaker
generic_latch_8
generic_latch_8
okim6295
es8712
hct157
msm6585

sound

channels
1

feature

type	status	overall
sound	imperfect

input

players	coins	service	tilt
1	3	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
gambling		10		no

port, analog

port_tag	analog_masks
:COINS
:DSW1
:DSW2
:DSW3
:DSW4
:IN0
:P1_KEY0
:P1_KEY1
:P1_KEY2
:P1_KEY3
:P1_KEY4
:P2_KEY0
:P2_KEY1
:P2_KEY2
:P2_KEY3
:P2_KEY4
:SPECIAL

dipswitch

Max Bet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Max Bet	DSW1	3

location

name	number	inverted
DSW1	1	no
DSW1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
5	3	yes
10	2	no
50	1	no
100	0	no

Min Bet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Min Bet	DSW1	12

location

name	number	inverted
DSW1	3	no
DSW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	12	yes
5	8	no
10	4	no
20	0	no

Double Up Game

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Double Up Game	DSW1	16

location

name	number	inverted
DSW1	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

Payout Rate Type

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Payout Rate Type	DSW1	32

location

name	number	inverted
DSW1	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Credit In / Out	0	no
Game In / Out	32	yes

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW1	64

location

name	number	inverted
DSW1	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW1	128

location

name	number	inverted
DSW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

Credit Limit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Credit Limit	DSW2	7

location

name	number	inverted
DSW2	1	no
DSW2	2	no
DSW2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1000	7	yes
2000	6	no
3000	5	no
5000	4	no
10000	3	no
20000	2	no
30000	1	no
50000	0	no

Win Percentage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Win Percentage	DSW2	56

location

name	number	inverted
DSW2	4	no
DSW2	5	no
DSW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
55	0	no
60	8	no
65	16	no
70	24	no
75	32	no
80	40	no
85	48	no
90	56	yes

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW2	64

location

name	number	inverted
DSW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	no
On	0	yes

Flip Screen

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Flip Screen	DSW2	128

location

name	number	inverted
DSW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

Hopper Motor

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Hopper Motor	DSW3	1

location

name	number	inverted
DSW3	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Hopper Switch

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Hopper Switch	DSW3	2

location

name	number	inverted
DSW3	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Micro	2	yes
Sensor	0	no

Coin A / Coin C

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A / Coin C	DSW3	28

location

name	number	inverted
DSW3	3	no
DSW3	4	no
DSW3	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
5 Coins/1 Credit	0	no
3 Coins/1 Credit	4	no
2 Coins/1 Credit	8	no
1 Coin/1 Credit	28	yes
1 Coin/5 Credits	24	no
1 Coin / 10 Credits	20	no
1 Coin / 50 Credits	16	no
1 Coin / 100 Credits	12	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSW3	224

location

name	number	inverted
DSW3	6	no
DSW3	7	no
DSW3	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
5 Coins/1 Credit	0	no
3 Coins/1 Credit	32	no
2 Coins/1 Credit	64	no
1 Coin/1 Credit	224	yes
1 Coin/5 Credits	192	no
1 Coin / 10 Credits	160	no
1 Coin / 50 Credits	128	no
1 Coin / 100 Credits	96	no

Key In

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Key In	DSW4	3

location

name	number	inverted
DSW4	1	no
DSW4	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
50 Credits	3	yes
100 Credits	2	no
500 Credits	1	no
1000 Credits	0	no

Pay Out

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Pay Out	DSW4	28

location

name	number	inverted
DSW4	3	no
DSW4	4	no
DSW4	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
5 Coins/1 Credit	0	no
3 Coins/1 Credit	4	no
2 Coins/1 Credit	8	no
1 Coin/1 Credit	28	yes
1 Coin/5 Credits	24	no
1 Coin / 10 Credits	20	no
1 Coin / 50 Credits	16	no
1 Coin / 100 Credits	12	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW4	32

location

name	number	inverted
DSW4	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Left / Center / Right Stop Buttons

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Left / Center / Right Stop Buttons	DSW4	192

location

name	number	inverted
DSW4	7	no
DSW4	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Take / Small / Big	192	yes
W-Up / Small / Big	128	no
Small / Big / Take	64	no
Small / Big / W-Up	0	no

Hopper Empty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Hopper Empty	SPECIAL	8

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	yes
On	0	no
