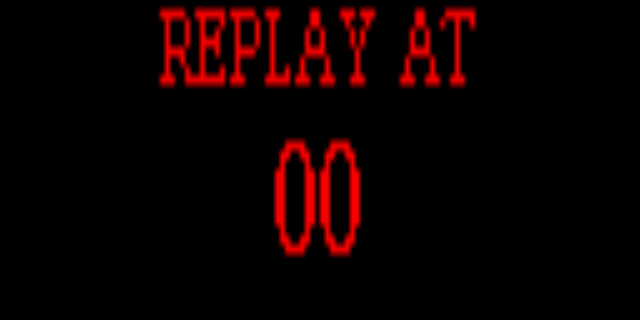

World Challenge Soccer (rev.1, set 2) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
wcsoccer1a	pinball/gts3a.cpp	genpin	no	no	yes	yes	World Challenge Soccer (rev.1, set 2)	1994	Gottlieb	wcsoccer	wcsoccer

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	lcd	0	128	64	60.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	yes	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
gprom.bin	65536	6382c32e	e212f4a9a77d1cf089acb226a8079ac4cae8a96d	maincpu	0	good	no	gprom.bin
dsprom2.bin	524288	4c8ea71d	ce751b84e2033e4de2f2c57490867ecafd423aaa	dmdcpu	0	good	no
drom1.bin	32768	18d5edf3	7d0d46506cf9d4b96b9b93139e3c65643e120c28	p7sound:audiocpu	8000	good	no	drom1.bin
arom1.bin	262144	ece4eebf	78f882668967194bd547ace5d22083faeb29ef5e	p7sound:oki	0	good	no	arom1.bin
arom2.bin	262144	4e466500	78c4b41a174d82a7e0e7775713c76e679c8a7e89	p7sound:oki	80000	good	no	arom2.bin
yrom1.bin	32768	8b2795b0	b838d4e410c815421099c65b0d3b22227dae17c6	p7sound:speechcpu	8000	good	no	yrom1.bin

chip

type	tag	name	clock
cpu	maincpu	WDC W65C02	2000000
cpu	dmdcpu	WDC W65C02	1789772
cpu	p7sound:audiocpu	MOS Technology 6502	2000000
cpu	p7sound:speechcpu	MOS Technology 6502	2000000
audio	mechvol	Speaker
audio	samples	Samples
audio	mono	Speaker
audio	p7sound	Gottlieb Sound pin. 7
audio	p7sound:dac	AD7528 DAC
audio	p7sound:dacvol	AD7528 DAC
audio	p7sound:ay1	AY-3-8913 PSG	2000000
audio	p7sound:ay2	AY-3-8913 PSG	2000000
audio	p7sound:ym2151	YM2151 OPM	4000000
audio	p7sound:oki	OKI MSM6295 ADPCM	1000000

device_ref

name
w65c02
nvram
w65c02
screen
palette
mc6845
r65c22
r65c22
ipt_merge_any_hi
speaker
samples
speaker
gotsndp7
m6502
m6502
ad7528
ad7528
ay8913
ay8913
ym2151
okim6295

sample

name
bumper
chime1
chime2
chime3
chime4
hole
knocker
sling
coinin
outhole
kickback
drop_target_reset
coil_coinlockout_engage
coil_coinlockout_release
relay_engage
relay_release
solenoid_engage
solenoid_release

sound

channels
2

feature

type	status	overall
sound	unemulated

input

players	coins	service	tilt
1	4	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
keypad		93		no

port, analog

port_tag	analog_masks
:TTS
:X0
:X1
:X10
:X11
:X2
:X3
:X4
:X5
:X6
:X7
:X8
:X9
