Whirlwind (LG-2) - mame (0286) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
whirl_lg2	pinball/s11b.cpp	genpin	no	no	yes	yes	Whirlwind (LG-2)	1990	Williams	whirl_l3	whirl_l3

snap

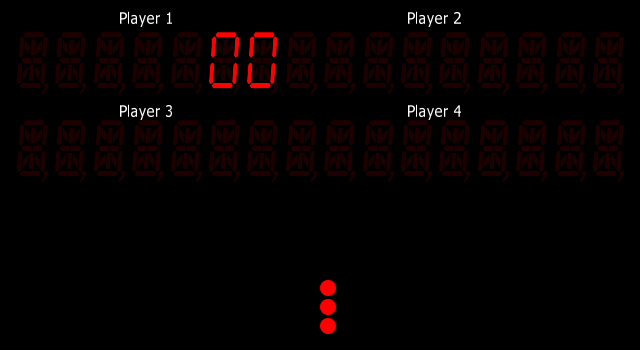

Whirlwind (LG-2) png snap

Whirlwind (LG-2) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
whirl_lg2	8417	29/12/2025 11:31:49	640	350	96	96	0	Format24bppRgb	305:MAME 0.262.0 (Jan 31 2024)	06933ec6e414a8153e4d526cce9167c2fabae2c1

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
whir_u26.l3	16384	066b8fec	017ca12ef5ebd9bb70690b0e096064be5144a512	maincpu	4000	good	no	whir_u26.l3
whirlwind_u27_lg2.bin	32768	49f03cd9	ee7837861678f86d3903842e1895de358383b6b2	maincpu	8000	good	no
whir_u21.l1	32768	fa3da322	732107eace9eecdb97eff4abb4420a2febef7425	audiocpu	8000	good	no	whir_u21.l1
whir_u22.l1	32768	fcaf8c4e	8e8cab1923a56bcef4671dce28aef1e39303c04a	audiocpu	0	good	no	whir_u22.l1
whir_u4.l1	32768	29952d84	26479a341b0552c5f9d9bf9dd013855e51a7b857	bg:cpu	0	good	no	whir_u4.l1
whir_u19.l1	32768	c63f6fe9	947bbccb5eeae414770254d42d0a95425e2dca8c	bg:cpu	20000	good	no	whir_u19.l1
whir_u20.l1	32768	713007af	3ac88bb905ccf8e227bbf3c102c74e3d2446cc88	bg:cpu	40000	good	no	whir_u20.l1

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6808	4000000
cpu	audiocpu	Motorola MC6802	4000000
cpu	bg:cpu	Motorola MC6809E	2000000
audio	mechvol	Speaker
audio	samples	Samples
audio	dac	MC1408 DAC
audio	cvsd_filter2	Biquad Filter
audio	cvsd_filter	Biquad Filter
audio	hc55516	HC-55516
audio	bg	Williams System 11 Background Audio Board
audio	bg:dac	MC1408 DAC
audio	bg:ym2151	YM2151 OPM	3579545
audio	bg:cvsd_filter2	Biquad Filter
audio	bg:cvsd_filter	Biquad Filter
audio	bg:hc55516	HC-55516
audio	speaker	Speaker

device_ref

tag	name
:maincpu	m6808
:mainirq	ipt_merge_any_hi
:piairq	ipt_merge_any_hi
:mechvol	speaker
:samples	samples
:pia21	pia6821
:pia24	pia6821
:pia28	pia6821
:pia2c	pia6821
:pia30	pia6821
:pia34	pia6821
:nvram	nvram
:audiocpu	m6802
:audioirq	ipt_merge_any_hi
:dac	mc1408
:cvsd_filter2	filter_biquad
:cvsd_filter	filter_biquad
:hc55516	hc55516
:pias	pia6821
:bg	s11_bg
:bg:cpu	mc6809e
:bg:dac	mc1408
:bg:pia40	pia6821
:bg:ym2151	ym2151
:bg:cvsd_filter2	filter_biquad
:bg:cvsd_filter	filter_biquad
:bg:hc55516	hc55516
:speaker	speaker

sample

name
bumper
chime1
chime2
chime3
chime4
hole
knocker
sling
coinin
outhole
kickback
drop_target_reset
coil_coinlockout_engage
coil_coinlockout_release
relay_engage
relay_release
solenoid_engage
solenoid_release

sound

channels
2

input

players	coins	service	tilt
1	3	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		64		no

port, analog

port_tag	analog_masks
:DIAGS
:X0
:X1
:X2
:X3
:X4
:X5
:X6
:X7

configuration

Language

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Language	DIAGS	16

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
German	0	no
English	16	yes
