Wiz-A-Tron - mame (0286) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
wizatron	handheld/hh_tms1k.cpp		no	no	no	yes	Wiz-A-Tron	1977	Texas Instruments

snap

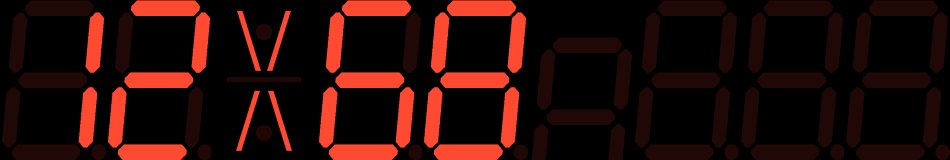

Wiz-A-Tron png snap

Wiz-A-Tron jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
wizatron	13217	29/12/2025 11:31:49	950	160	96	96	0	Format24bppRgb	305:MAME 0.179 (Oct 26 2016)	53f6aeed128d6958f6f06d659983f963be007737

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	yes	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
tmc0907nl_za0379_bsp	1024	5a6af094	b1f27e1f13f4db3b052dd50fb08dbf9c4d8db26e	maincpu	0	good	no
tms0970_common1_instr.pla	782	05306ef8	60a0a3c49ce330bce0c27f15f81d61461d0432ce	maincpu:ipla	0	good	no
tms0970_common2_micro.pla	860	7f50ab2e	bff3be9af0e322986f6e545b567c97d70e135c93	maincpu:mpla	0	good	no
tms0980_wizatron_output.pla	352	c0ee5c04	e9fadcef688309adbe6c1c0545aac6883ce4a1ac	maincpu:opla	0	good	no
tms0980_common2_segment.pla	157	c03cccd8	08bc4b597686a7aa8b2c9f43b85b62747ffd455b	maincpu:spla	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Texas Instruments TMS0970	250000

device_ref

tag	name
:maincpu	tms0970
:maincpu:ipla	pla
:maincpu:mpla	pla
:maincpu:opla	pla
:maincpu:spla	pla
:display	pwm_display

sound

channels
0

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		16		no

port, analog

port_tag	analog_masks
:IN.0
:IN.1
:IN.2
:IN.3
:IN.4
