WK-1800 - mame (0286) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
wk1800	casio/wk1800.cpp		no	no	no	yes	WK-1800	2000	Casio

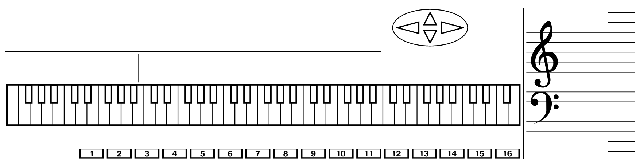

snap

WK-1800 png snap

WK-1800 jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
wk1800	7307	29/12/2025 11:31:49	640	164	96	96	0	Format24bppRgb	305:MAMEUI 0.277.0 (2025-04-30)	47729ac8d5990e2948b13d4f8d4b5b60958a0800

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	svg	0	1755	450	60.000000	47385000	1755	0	1755	450	0	450	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
imperfect	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
hd6433048sa89f.lsi9	131072	bd5bfab3	2731b5ab1cb288553bfee9b856264a5d1eb0ef1a	maincpu	0	good	no
lhmn5kpn.lsi2	4194304	f75d21f0	e08937ce2fa152db85fa96cef53f81351e690666	gt155	0	good	no
lhmn5kpp.lsi1	4194304	f6cc5048	9f48730a5bd3582f6fe08cb937848907d11aa804	gt155	400000	good	no
wk1800.svg	585110	5fab0b26	6181b9eb950cd30474efb37b8cd660cba4b0b914	screen	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Hitachi H8/3048	16000000
audio	speaker	Speaker
audio	gt155	Casio GT155	24576000

device_ref

tag	name
:maincpu	h83048
:maincpu:intc	h8h_intc
:maincpu:adc	h8_adc_3337
:maincpu:dma	h8h_dma
:maincpu:dma:0	h8h_dma_channel
:maincpu:dma:1	h8h_dma_channel
:maincpu:port1	h8_digital_port
:maincpu:port2	h8_digital_port
:maincpu:port3	h8_digital_port
:maincpu:port4	h8_digital_port
:maincpu:port5	h8_digital_port
:maincpu:port6	h8_digital_port
:maincpu:port7	h8_digital_port
:maincpu:port8	h8_digital_port
:maincpu:port9	h8_digital_port
:maincpu:porta	h8_digital_port
:maincpu:portb	h8_digital_port
:maincpu:timer16	h8_timer16
:maincpu:timer16:0	h8h_timer16_channel
:maincpu:timer16:1	h8h_timer16_channel
:maincpu:timer16:2	h8h_timer16_channel
:maincpu:timer16:3	h8h_timer16_channel
:maincpu:timer16:4	h8h_timer16_channel
:maincpu:sci0	h8_sci
:maincpu:sci1	h8_sci
:maincpu:watchdog	h8_watchdog
:nvram	nvram
:kbd	gt913_kbd_hle
:mdin	midi_port
:mdin:midiin	midiin_port
:mdin:midiin:midiinimg	midiin
:mdout	midi_port
:mdout:midiout	midiout_port
:mdout:midiout:midioutimg	midiout
:lcdc	hd44780
:screen	screen
:speaker	speaker
:gt155	gt155

sound

channels
1

feature

type	status	overall
sound		imperfect
disk	unemulated

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
midiin	mdin:midiin:midiinimg				midiin	min
midiout	mdout:midiout:midioutimg				midiout	mout

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
midiin	mdin:midiin:midiinimg				mid, syx
midiout	mdout:midiout:midioutimg				mid

input

players	coins	service	tilt
2		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
positional	1			no	0	255	100	10
paddle	1			no	0	1023	100	10
keypad	1	68		no
positional	2			no	0	1023	100	10

port, analog

port_tag	analog_masks
:AN1	1023
:AN3	1023
:KC0
:KC1
:KC2
:KC3
:KC4
:KC5
:KC6
:KC7
:P6
:P7
:P8
:P9
:PA
:PB
:SWITCH
:kbd:FI0
:kbd:FI1
:kbd:FI10
:kbd:FI2
:kbd:FI3
:kbd:FI4
:kbd:FI5
:kbd:FI6
:kbd:FI7
:kbd:FI8
:kbd:FI9
:kbd:KI0
:kbd:KI1
:kbd:KI2
:kbd:VELOCITY	255
:mdin:midiin:midiinimg:CFG

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
mdin	midiin	midiin_port	yes
mdout	midiout	midiout_port	yes

configuration

Power Source

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Power Source	P7	4

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
AC Adapter	0	yes
Battery	4	no

MIDI file mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
MIDI file mode	mdin:midiin:midiinimg:CFG	255

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Multi	255	yes
Poly: Channel 1	0	no
Poly: Channel 2	1	no
Poly: Channel 3	2	no
Poly: Channel 4	3	no
Poly: Channel 5	4	no
Poly: Channel 6	5	no
Poly: Channel 7	6	no
Poly: Channel 8	7	no
Poly: Channel 9	8	no
Poly: Channel 10	9	no
Poly: Channel 11	10	no
Poly: Channel 12	11	no
Poly: Channel 13	12	no
Poly: Channel 14	13	no
Poly: Channel 15	14	no
Poly: Channel 16	15	no

clones

name	description
wk1600	WK-1600
