name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
wotw	cinematronics/cinemat.cpp		no	no	no	yes	War of the Worlds	1981	Cinematronics

snap

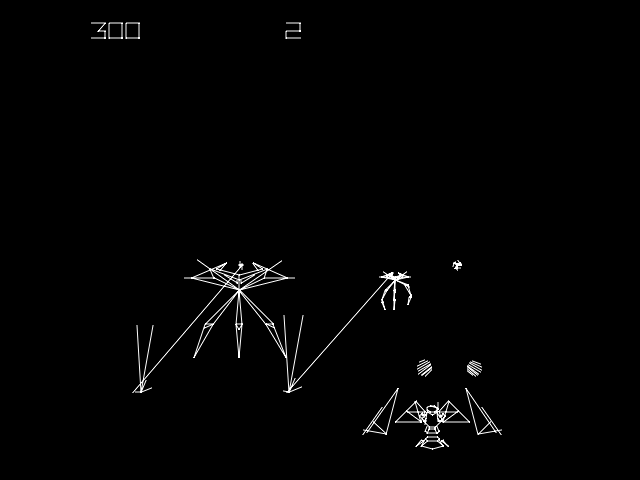

War of the Worlds png snap

War of the Worlds jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
wotw	14798	29/12/2025 11:31:50	640	480	96	96	0	Format24bppRgb	305:MAME 0.137u4 (May 5 2010)	96af602ee037f74d055b9e12fa4ec35fa31ce0ba

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	vector	180			38.000107								yes

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
wow_le.t7	4096	b16440f9	9656a26814736f8ff73575063b5ebbb2e8aa7dd0	maincpu	0	good	no
wow_lo.p7	4096	bfdf4a5a	db4eceb68e17020d0a597ba105ec3b91ce48b7c1	maincpu	1	good	no
wow_ue.u7	4096	9b5cea48	c2bc002e550a0d36e713d07f6aefa79c70b8e284	maincpu	2000	good	no
wow_uo.r7	4096	c9d3c866	57a47bf06838fe562981321249fe5ae585316f22	maincpu	2001	good	no
prom.f14	256	9edbf536	036ad8a231284e05f44b1106d38fc0c7e041b6e8	proms	0	good	no
prom.e14	32	29dbfb87	d8c40ab010b2ea30f29b2c443819e2b69f376c04	proms	100	good	no
prom.d14	32	9a05afbf	5d806a42424942ba5ef0b70a1d629315b37f931b	proms	120	good	no
prom.c14	32	07492cda	32df9148797c23f70db47b840139c40e046dd710	proms	140	good	no
prom.j14	32	a481ca71	ce145d61686f600cc16b77febfd5c783bf8c13b0	proms	160	good	no
prom.e8	32	791ec9e1	6f7fcce4aa3be9020595235568381588adaab88e	proms	180	good	no

chip

type	tag	name	clock
cpu	maincpu	Cinematronics CPU	4980750
audio	mono	Speaker
audio	soundboard	War of the Worlds Sound Board
audio	soundboard:sound_nl	Netlist Sound Device

device_ref

tag	name
:maincpu	ccpu
:outlatch	ls259
:vector	vector_device
:screen	screen
:mono	speaker
:soundboard	wotw_audio
:soundboard:sound_nl	netlist_sound
:soundboard:sound_nl:out_0	nl_logic_in
:soundboard:sound_nl:out_1	nl_logic_in
:soundboard:sound_nl:out_2	nl_logic_in
:soundboard:sound_nl:out_3	nl_logic_in
:soundboard:sound_nl:out_4	nl_logic_in
:soundboard:sound_nl:out_7	nl_logic_in
:soundboard:sound_nl:cout0	nl_stream_out

sound

channels
1

input

players	coins	service	tilt
1	1	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
joy		2	2	no

port, analog

port_tag	analog_masks
:INPUTS
:SWITCHES

dipswitch

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	SWITCHES	1

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Lives

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Lives	SWITCHES	2

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
3	0	yes
5	2	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	SWITCHES	4

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	SWITCHES	8

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Coin/1 Credit	8	yes
3 Coins/4 Credits	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	SWITCHES	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

Free Play

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Free Play	SWITCHES	32

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	SWITCHES	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

clones

name	description
wotwc	War of the Worlds (color)
