X-Files (CPU 2.04, display A2.01) - mame (0286) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
xfiles2	pinball/whitestar.cpp	genpin	no	no	yes	yes	X-Files (CPU 2.04, display A2.01)	1997	Sega	xfilesp	xfilesp

snap

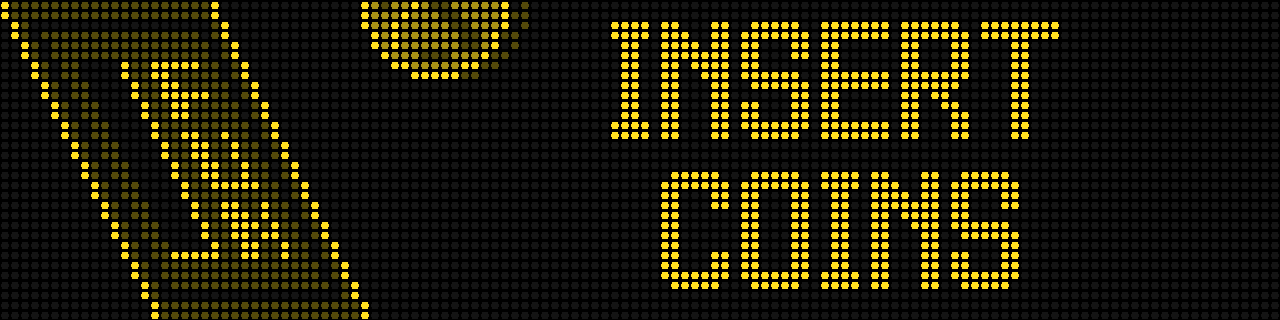

X-Files (CPU 2.04, display A2.01) png snap

X-Files (CPU 2.04, display A2.01) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
xfiles2	10671	29/12/2025 11:31:50	1280	320	96	96	0	Format24bppRgb	305:MAME 0.145u7 (Apr 22 2012)	55c897cfc3679541a63d6f0922861f8b7e1a83e9

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
decodmd:dmd	raster	0	128	32	60.000000	245760	128	0	128	32	0	32	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	yes	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
xfcpu.204	131072	a4913128	1fe348725e13fd5dc56b6b2dbd173d0b49953483	maincpu	0	good	no
xfildspa.201	524288	bb015f24	ca539d978ef0b8244227ea0c60087da5e7f0ee9e	decodmd	0	good	no
xfsndu7.512	65536	01d65239	9e680de940a15ef85a5615b789c58cd5973ff11b	decobsmt:soundcpu	0	good	no	xfsndu7.512
xfsndu17.c40	524288	40bfc835	2d6ac82acbbf9645bcb84fab7f285f2373e516a8	decobsmt:bsmt	0	good	no	xfsndu17.c40
xfsndu21.c40	524288	b56a5ca6	5fa23a8bb57e45aca159882226e603d9a6be078b	decobsmt:bsmt	80000	good	no	xfsndu21.c40
16v8d.u213	279	942d99fd	db33b16e582c6762ac6843a3613edb733cbeb499	plds	0	baddump	no	16v8d.u213

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6809E	2000000
cpu	decobsmt:soundcpu	Motorola MC6809E	2000000
cpu	decobsmt:bsmt:bsmt2000	Texas Instruments TMS320C15	24000000
cpu	decodmd:dmdcpu	Motorola MC6809E	2000000
audio	mechvol	Speaker
audio	samples	Samples
audio	speaker	Speaker
audio	decobsmt	Data East/Sega/Stern BSMT2000 Sound Board
audio	decobsmt:bsmt	BSMT2000	24000000

device_ref

tag	name
:maincpu	mc6809e
:nvram	nvram
:mechvol	speaker
:samples	samples
:speaker	speaker
:decobsmt	decobsmt
:decobsmt:soundcpu	mc6809e
:decobsmt:bsmt	bsmt2000
:decobsmt:bsmt:bsmt2000	tms320c15
:decodmd	decodmd2
:decodmd:dmdcpu	mc6809e
:decodmd:firq_timer	timer
:decodmd:dmd6845	mc6845
:decodmd:dmd	screen

sample

name
bumper
chime1
chime2
chime3
chime4
hole
knocker
sling
coinin
outhole
kickback
drop_target_reset
coil_coinlockout_engage
coil_coinlockout_release
relay_engage
relay_release
solenoid_engage
solenoid_release

sound

channels
2

feature

type	status	overall
sound	unemulated

input

players	coins	service	tilt
1	3	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		66		no

port, analog

port_tag	analog_masks
:DEDICATED
:DSW0
:X0
:X1
:X2
:X3
:X4
:X5
:X6
:X7
