XL 25 - mame (0286) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
xl25	handheld/hh_tms1k.cpp		no	no	no	yes	XL 25	1983	Vulcan Electronics

snap

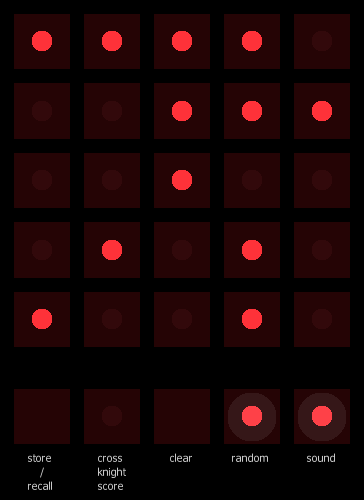

XL 25 png snap

XL 25 jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
xl25	6495	29/12/2025 11:31:50	364	500	96	96	0	Format24bppRgb	305:MAME 0.193 (Dec 27 2017)	3766783312923170fa2d7d940b5ed9be3425fdc4

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
mp4486a	1024	bd84b515	377fcc68a517260acd51eb9746cd62914a75d739	maincpu	0	good	no
tms1000c_xl25_micro.pla	922	8823e7f2	676b0eace9d8730f2caa9087e8c51e540c7fabf8	maincpu:mpla	0	good	no
tms1000c_xl25_output.pla	558	06ecc6e0	e0fa1b9388948197b4de2edd3cd02fbde1dbabbb	maincpu:opla	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Texas Instruments TMS1000C	300000
audio	mono	Speaker
audio	speaker	Filtered DAC

device_ref

tag	name
:maincpu	tms1000c
:maincpu:mpla	pla
:maincpu:opla	pla
:display	pwm_display
:mono	speaker
:speaker	speaker_sound_device

sound

channels
1

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		30		no

port, analog

port_tag	analog_masks
:IN.0
:IN.1
:IN.2
:IN.3
:IN.4
:IN.5
:IN.6
:IN.7
:IN.8
:IN.9
