X the Ball - mame (0286) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
xtheball	rare/xtheball.cpp		no	no	no	yes	X the Ball	1991	Rare

snap

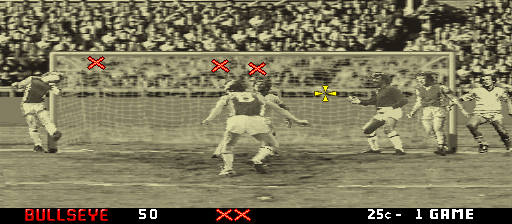

X the Ball png snap

X the Ball jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
xtheball	60536	29/12/2025 11:31:50	512	224	96	96	0	Format24bppRgb	305:MAME 0.130u4 (Apr 16 2009)	40bae1e949f58805d5154a4b8df12d71fab524fb

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	512	224	60.797665	10000000	640	114	626	257	24	248	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
aces18-lo.ic13	32768	c0e80004	d79c2e7301857148674fffad349c7a2a98fa1ee2	user1	0	good	no
aces18-hi.ic19	32768	5a682f92	ed77c02cbdcff9eac32760cee67e3a784efacac7	user1	1	good	no
xtb-ic6.bin	262144	a3cc01b8	49d42bb17c314609f371df7d7ace57e54fdf6335	user2	0	good	no
xtb-ic7.bin	262144	8dfa6c1b	a32940b3f9501a44e1d1ef1628f8a64b32aa2183	user2	1	good	no
xtb-1l.ic8	524288	df52c00f	9a89d780ad394b55ce9540a5743bbe571543288f	user2	100000	good	no
xtb-1h.ic9	524288	9ce7785b	9a002ba492cdc35391df2b55dfe90c55b7d48ad1	user2	100001	good	no
xtb-2l.ic10	524288	e2545a19	c2fe5adf7a174cec6aad63baa1b92761ef21d5a4	user2	200000	good	no
xtb-2h.ic11	524288	50c27558	ecfb7d918868d35a8cde45f7d04fdfc3ffc06328	user2	200001	good	no

chip

type	tag	name	clock
cpu	maincpu	Texas Instruments TMS34010	40000000
audio	speaker	Speaker
audio	dac	ZN428E-8 DAC

device_ref

tag	name
:maincpu	tms34010
:nvram	nvram
:latch1	hc259
:latch2	hc259
:latch3	hc259
:ticket	ticket_dispenser
:watchdog	watchdog
:tlc34076	tlc34076
:screen	screen
:speaker	speaker
:dac	zn428e

sound

channels
1

input

players	coins	service	tilt
1	3	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
trackball		1		yes	0	255	100	10

port, analog

port_tag	analog_masks
:ANALOGX	255
:ANALOGY	255
:BUTTON1
:COIN1
:COIN3
:DSW
:SERVICE
:SERVICE1
:SERVICE2
:ticket:TEST

dipswitch

Target Tickets

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Target Tickets	DSW	1792

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
3	0	yes
4	256	no
5	512	no
6	768	no
7	1024	no
8	1280	no
9	1536	no
10	1792	no

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	DSW	2048

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Coin/1 Credit	0	yes
1 Coin/2 Credits	2048	no

Automatic 1 Ticket

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Automatic 1 Ticket	DSW	4096

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	4096	yes

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW	8192

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	8192	yes

Game Tune

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Game Tune	DSW	16384

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	16384	yes

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW	32768

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	32768	yes
