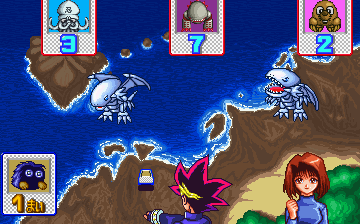

Yu-Gi-Oh Monster Capsule - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
ymcapsul	konami/konmedal68k.cpp		no	no	no	yes	Yu-Gi-Oh Monster Capsule	1999	Konami

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	360	224	59.620000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
imperfect	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
834-a05-2n.bin	524288	34773912	0e3832f51effa5495562796da4dea1e79dcd0ad3	maincpu	0	good	no
834-a06-14n.bin	524288	444b0172	b305457e11a4382855bc37e39a6d23f74a646bd4	k056832	0	good	no
834-a07-17n.bin	524288	e5a9533e	7ad7b1603dbb2e31acae469a97a8b2a5d80b3026	k056832	80000	good	no
834-a01-2f.bin	524288	d9be9af9	d2877e1c62f6b5ee1a24026560bba66c97daa065	ymz	0	good	no
834-a02-4f.bin	524288	47b6ab29	5bff269fca6f664db8749d036f649a480af2588e	ymz	80000	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	8467200
audio	speaker	Speaker
audio	ymz	Yamaha YMZ280B PCMD8	16934400

device_ref

name
m68000
timer
nvram
coin_hopper
screen
palette
k056832
k055555
speaker
ymz280b

sound

channels
1

feature

type	status	overall
graphics	imperfect

input

players	coins	service	tilt
1	3	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
only_buttons		1		no

port, analog

port_tag	analog_masks
:DSW
:IN0
:IN1
:OUT

dipswitch

Coin Slot 1

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Slot 1	DSW	7

location

name	number	inverted
SW1	1	no
SW1	2	no
SW1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
5 Coins/2 Credits	0	no
4 Coins/3 Credits	1	no
2 Coins/3 Credits	2	no
5 Coins/1 Credit	3	no
4 Coins/1 Credit	4	no
3 Coins/1 Credit	5	no
2 Coins/1 Credit	6	no
1 Coin/1 Credit	7	yes

Coin Slot 2

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Slot 2	DSW	120

location

name	number	inverted
SW1	4	no
SW1	5	no
SW1	6	no
SW1	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
16 Medals	0	yes
15 Medals	8	no
14 Medals	16	no
13 Medals	24	no
12 Medals	32	no
11 Medals	40	no
10 Medals	48	no
9 Medals	56	no
8 Medals	64	no
7 Medals	72	no
6 Medals	80	no
5 Medals	88	no
4 Medals	96	no
3 Medals	104	no
2 Medals	112	no

Free Play

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Free Play	DSW	128

location

name	number	inverted
SW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	no
Off	128	yes

Standard of Payout

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Standard of Payout	DSW	3840

location

name	number	inverted
SW2	1	no
SW2	2	no
SW2	3	no
SW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
90%	0	yes
85%	256	no
80%	512	no
75%	768	no
70%	1024	no
65%	1280	no
60%	1536	no
55%	1792	no
50%	2048	no
45%	2304	no
40%	2560	no
35%	2816	no
30%	3072	no
25%	3328	no
20%	3584	no
15%	3840	no

Play Timer

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Play Timer	DSW	12288

location

name	number	inverted
SW2	5	no
SW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
30 sec	0	yes
24 sec	4096	no
18 sec	8192	no
12 sec	12288	no

Backup Memory

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Backup Memory	DSW	16384

location

name	number	inverted
SW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Keep	16384	no
Clear	0	yes

Demo Sound

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sound	DSW	32768

location

name	number	inverted
SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32768	no
On	0	yes
