Z-100 - mame (0286) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
z100	heathzenith/z100.cpp		no	no	no	yes	Z-100	1982	Zenith Data Systems

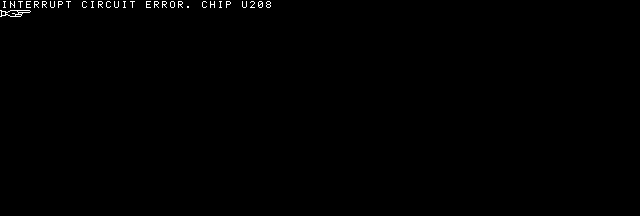

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
z100	927	29/12/2025 11:31:50	640	216	96	96	0	Format24bppRgb	305:MAME 0.203 (Oct 31 2018)	7cd9d1b005ca25124d1859a85fc493b923347abb

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	640	216	59.975520	14112000	912	0	640	258	0	216	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	status	optional
intel-d27128-1.bin	16384	b21f0392	69e492891cceb143a685315efe0752981a2d8143	ipl	good	no
444-109.u204	1024	45181029	0e89649364d25cf2d8669d2a293ee162e274cb64	kbdc	good	no
444-101.u179	256	c952be82	0edf9265d302f8478a310858eb6a9352f0cda17b	iodec	good	no
444-104.u111	256	46edd69d	5d4bafeaa4593e419bf94dba9e44c8b2be58727b	memdec	good	no
444-105.u226	32	98b084e9	d968b9a1b1d2ba3ed40036c2192c9960a6c15e99	status	good	no
444-102.u371	256	4558f540	55c9bad87b111537a6d386a6eb405169fb47304c	vramsel	good	no
444-103.u369	256	854cef15	836b244dac0085bcfe8006fde0c5f19982969236	viosel	good	no
444-127.u370	256	4163da5b	217673d679d5b12ab9e8b5fd302585b58a44aca1	vrmm	good	no

chip

type	tag	name	clock
cpu	maincpu	Intel 8088	5000000
cpu	sec_cpu	Intel 8085A	5000000
cpu	kbdc	Intel 8041A	6000000
audio	mono	Speaker
audio	beeper	Beep	1023
audio	z207_fdc:0:dd:flopsndout	Speaker
audio	z207_fdc:0:dd:floppysound	Floppy sound	44100
audio	z207_fdc:1:dd:flopsndout	Speaker
audio	z207_fdc:1:dd:floppysound	Floppy sound	44100

device_ref

tag	name
:maincpu	i8088
:sec_cpu	i8085a
:kbdc	i8041a
:keyclick	ttl74123
:keybeep	ttl74123
:mono	speaker
:beeper	beep
:screen	screen
:palette	palette
:crtc	mc6845
:pic8259_master	pic8259
:pic8259_slave	pic8259
:pit	pit8253
:pit:counter0	pit_counter
:pit:counter1	pit_counter
:pit:counter2	pit_counter
:pia0	pia6821
:pia1	pia6821
:centronics	centronics
:keydspyint	ipt_merge_any_hi
:z207_fdc	fd1797
:z207_fdc:0	floppy_connector
:z207_fdc:0:dd	floppy_525_dd
:z207_fdc:0:dd:flopsndout	speaker
:z207_fdc:0:dd:floppysound	flopsnd
:z207_fdc:1	floppy_connector
:z207_fdc:1:dd	floppy_525_dd
:z207_fdc:1:dd:flopsndout	speaker
:z207_fdc:1:dd:floppysound	flopsnd
:z207_fdc:2	floppy_connector
:z207_fdc:3	floppy_connector
:epci0	scn2661b
:epci1	scn2661b
:epci0int	ipt_merge_any_hi
:epci1int	ipt_merge_any_hi

sound

channels
3

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
floppydisk	z207_fdc:0:dd	floppy_5_25			floppydisk1	flop1
floppydisk	z207_fdc:1:dd	floppy_5_25			floppydisk2	flop2

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
floppydisk	z207_fdc:0:dd	floppy_5_25			mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk
floppydisk	z207_fdc:1:dd	floppy_5_25			mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keyboard		95		no

port, analog

port_tag	analog_masks
:COL0
:COL1
:COL10
:COL11
:COL12
:COL13
:COL14
:COL15
:COL2
:COL3
:COL4
:COL5
:COL6
:COL7
:COL8
:COL9
:CONFIG
:CTRL
:S101
:VRAM

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
centronics	nlq401	nlq401	no
centronics	smartboard	centronics_smartboard	no
centronics	chessmec	centronics_chessmec	no
centronics	samdac	centronics_samdac	no
centronics	covox_stereo	covox_stereo	no
centronics	adaptator	adaptator_multitap	no
centronics	digiblst	cpcdigiblst	no
centronics	lx800	lx800	no
centronics	jx80	epson_jx80	no
centronics	ap2000	ap2000	no
centronics	ex800	ex800	no
centronics	fx80	epson_fx80	no
centronics	rx80	epson_rx80	no
centronics	mz1p16	mz1p16	no
centronics	covox	covox	no
centronics	pl80	comx_pl80	no
centronics	lx810l	lx810l	no
centronics	p72	p72	no
centronics	printer	centronics_printer	no
z207_fdc:0	dd	floppy_525_dd	yes
z207_fdc:1	dd	floppy_525_dd	yes
z207_fdc:2	dd	floppy_525_dd	no
z207_fdc:3	dd	floppy_525_dd	no

configuration

Video Board

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Video Board	CONFIG	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Monochrome	0	no
Color	1	yes

dipswitch

Default boot device

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Default boot device	S101	7

value

name	value	default
5 1/4" floppy disk drive (internal)	0	yes
8" floppy disk drive(external)	1	no
5" Winchester disk (internal)	2	no
3 - undefined	3	no
4 - undefined	4	no
5 - undefined	5	no
6 - undefined	6	no
7 - undefined	7	no

Auto-boot

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Auto-boot	S101	8

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	8	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	S101	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	16	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	S101	32

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	32	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	S101	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

Video vertical scan frequency

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Video vertical scan frequency	S101	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
NTSC 60 Hz	0	yes
PAL 50 Hz	128	no

Video Memory

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Video Memory	VRAM	1

location

name	number	inverted
J307	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
32K	0	no
64K	1	yes
