Zircon II - mame (0286) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
zircon2	novag/zircon2.cpp		no	no	no	yes	Zircon II	1995	Novag Industries / Intelligent Heuristic Programming

snap

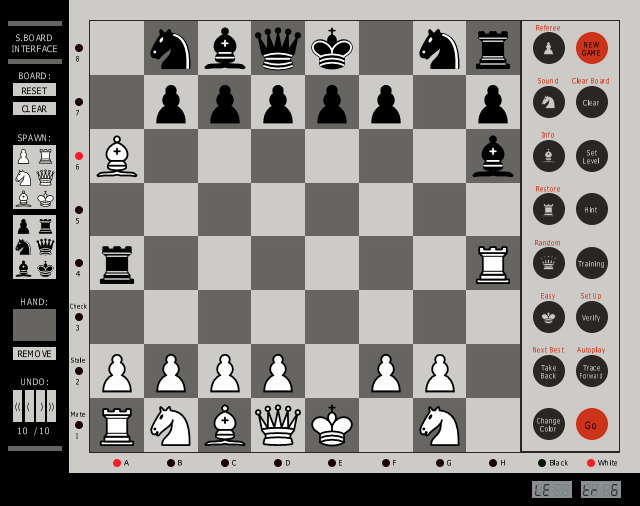

Zircon II png snap

Zircon II jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
zircon2	52893	29/12/2025 11:31:50	640	506	96	96	0	Format24bppRgb	305:MAME 0.268.1 (Aug 1 2024)	9c07a3b3e4bbef2192735fc79d937953ec547f22

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
novag_9403-010057-6433258b84f	32768	bb0e817d	328b3e01b4bb52400bcd5111ce674308b65f5b86	maincpu	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Hitachi H8/325	26601712
audio	speaker	Speaker
audio	dac	2-Bit Ones Complement DAC

device_ref

tag	name
:maincpu	h8325
:maincpu:intc	h8325_intc
:maincpu:port1	h8_digital_port
:maincpu:port2	h8_digital_port
:maincpu:port3	h8_digital_port
:maincpu:port4	h8_digital_port
:maincpu:port5	h8_digital_port
:maincpu:port6	h8_digital_port
:maincpu:port7	h8_digital_port
:maincpu:timer8_0	h8_timer8_channel
:maincpu:timer8_1	h8_timer8_channel
:maincpu:timer16	h8_timer16
:maincpu:timer16:0	h8325_timer16_channel
:maincpu:sci0	h8_sci
:maincpu:sci1	h8_sci
:board	sensorboard
:lcd_pwm	pwm_display
:led_pwm	pwm_display
:speaker	speaker
:dac	dac_2bit_oc

sound

channels
1

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		16		no

port, analog

port_tag	analog_masks
:IN.0
:IN.1
:POWER
:board:BS_CHECK
:board:CONF
:board:RANK.1
:board:RANK.10
:board:RANK.11
:board:RANK.12
:board:RANK.13
:board:RANK.2
:board:RANK.3
:board:RANK.4
:board:RANK.5
:board:RANK.6
:board:RANK.7
:board:RANK.8
:board:RANK.9
:board:SPAWN
:board:SS_CHECK
:board:UI
:board:UI_CHECK

configuration

Remember Position

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Remember Position	board:CONF	3	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	1	no
Yes	2	no
Auto	0	yes

Show Pieces

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Show Pieces	board:CONF	4	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	4	no
Yes	0	yes
