BIC A5105 - mame (0286) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
a5105	robotron/a5105.cpp		no	no	no	yes	BIC A5105	1989	VEB Robotron

snap

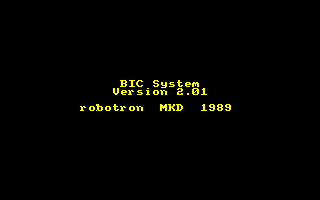

BIC A5105 png snap

BIC A5105 jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
a5105	767	29/12/2025 11:31:15	320	200	96	96	0	Format24bppRgb	305:MAME 0.196 (Mar 28 2018)	1ad03c48db6e0549ffd8cfccbc781acbd2334994

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	320	200	50.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
k1505_00.rom	32768	0ed5f556	5c33139db9f59e50da5c76729752f8e653ae34ae	maincpu	0	good	no
k1505_80.rom	8192	350e4958	7e5b587c59676e8549561117ea0b70234f439a94	maincpu	8000	good	no
k5651_40.rom	8192	f4ad4739	9a7bbe6f0d180dd513c7854f441cee986c8d9765	k5651	0	good	no
k5651_60.rom	8192	c77dde3f	7c16226be6c4c71013e8008fba9d2e9c5640b6a7	k5651	2000	good	no

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	3750000
audio	mono	Speaker
audio	beeper	Beep	500
audio	cassette	Cassette
audio	upd765a:0:525qd:flopsndout	Speaker
audio	upd765a:0:525qd:floppysound	Floppy sound	44100
audio	upd765a:1:525qd:flopsndout	Speaker
audio	upd765a:1:525qd:floppysound	Floppy sound	44100
audio	upd765a:2:525qd:flopsndout	Speaker
audio	upd765a:2:525qd:floppysound	Floppy sound	44100
audio	upd765a:3:525qd:flopsndout	Speaker
audio	upd765a:3:525qd:floppysound	Floppy sound	44100

device_ref

tag	name
:maincpu	z80
:screen	screen
:gfxdecode	gfxdecode
:palette	palette
:mono	speaker
:beeper	beep
:upd7220	upd7220
:z80ctc	z80ctc
:z80ctc:ch0	z80ctc_channel
:z80ctc:ch1	z80ctc_channel
:z80ctc:ch2	z80ctc_channel
:z80ctc:ch3	z80ctc_channel
:z80pio	z80pio
:cassette	cassette_image
:upd765a	upd765a
:upd765a:0	floppy_connector
:upd765a:0:525qd	floppy_525_qd
:upd765a:0:525qd:flopsndout	speaker
:upd765a:0:525qd:floppysound	flopsnd
:upd765a:1	floppy_connector
:upd765a:1:525qd	floppy_525_qd
:upd765a:1:525qd:flopsndout	speaker
:upd765a:1:525qd:floppysound	flopsnd
:upd765a:2	floppy_connector
:upd765a:2:525qd	floppy_525_qd
:upd765a:2:525qd:flopsndout	speaker
:upd765a:2:525qd:floppysound	flopsnd
:upd765a:3	floppy_connector
:upd765a:3:525qd	floppy_525_qd
:upd765a:3:525qd:flopsndout	speaker
:upd765a:3:525qd:floppysound	flopsnd
:ram	ram

sound

channels
5

feature

type	status	overall
sound	unemulated

ramoption

name	default
64K	yes

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
cassette	cassette				cassette	cass
floppydisk	upd765a:0:525qd	floppy_5_25			floppydisk1	flop1
floppydisk	upd765a:1:525qd	floppy_5_25			floppydisk2	flop2
floppydisk	upd765a:2:525qd	floppy_5_25			floppydisk3	flop3
floppydisk	upd765a:3:525qd	floppy_5_25			floppydisk4	flop4

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
cassette	cassette				wav, flac
floppydisk	upd765a:0:525qd	floppy_5_25			mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, img
floppydisk	upd765a:1:525qd	floppy_5_25			mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, img
floppydisk	upd765a:2:525qd	floppy_5_25			mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, img
floppydisk	upd765a:3:525qd	floppy_5_25			mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, img

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keyboard		87		no

port, analog

port_tag	analog_masks
:KEY0
:KEY1
:KEY2
:KEY3
:KEY4
:KEY5
:KEY6
:KEY7
:KEY8
:KEY9
:KEYA
:UNUSED

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
upd765a:0	525qd	floppy_525_qd	yes
upd765a:1	525qd	floppy_525_qd	yes
upd765a:2	525qd	floppy_525_qd	yes
upd765a:3	525qd	floppy_525_qd	yes
