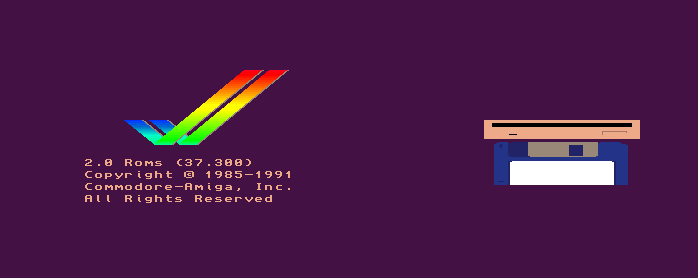

Amiga 600 (PAL) - mame (0277) machine

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	romof	cloneof
a600	amiga/amiga.cpp		no	no	no	yes	Amiga 600 (PAL)	1992	Commodore

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	724	567	50.000282	28375160	908	184	908	625	58	625	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	status	optional	bios
390979-01.u6	524288	c3bdb240	c5839f5cb98a7a8947065c3ed2f14f5f42e334a1	kickstart	good	no	kick204
391388-01.u6	524288	83028fb5	87508de834dc7eb47359cede72d2e3c8a2e5d8db	kickstart	good	no	kick205-299
391304-01.u6	524288	64466c2a	f72d89148dac39c696e30b10859ebc859226637b	kickstart	good	no	kick205-300
391304-02.u6	524288	43b0df7b	02843c4253bbd29aba535b0aa3bd9a85034ecde4	kickstart	good	no	kick205-350
kick40063.u6	524288	fc24ae0d	3b7f1493b27e212830f989f26ca76c02049f09ca	kickstart	good	no	kick31
logica2.u6	524288	8484f426	ba10d16166b2e2d6177c979c99edf8462b21651e	kickstart	good	no	logica2
391079-01.u13	2048			keyboard	nodump	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	7093790
cpu	cia_0	MOS 8520 CIA	709379
cpu	cia_1	MOS 8520 CIA	709379
cpu	kbd:a600_us:mcu	MOS Technology 6500/1	3000000
audio	lspeaker	Speaker
audio	rspeaker	Speaker
audio	paula	MOS 8364 "Paula"	3546895
audio	fdc:0:35dd:flopsndout	Speaker
audio	fdc:0:35dd:floppysound	Floppy sound	44100

softwarelist

tag	name	status
wb_list	amiga_workbench	original
hardware_list	amiga_hardware	original
apps_list	amiga_apps	original
flop_list	amiga_flop	original
ocs_list	amigaocs_flop	original
demos_list	amiga_demos	original
amigacd_list	amiga_cd	original
photocd_list	photo_cd	compatible
ecs_list	amigaecs_flop	original
hdd_list	amiga_hdd	original

device_ref

name
m68000
screen
palette
mos8520
mos8520
speaker
speaker
paula_8364
paula_fdc
floppy_connector
floppy_35_dd
speaker
flopsnd
floppy_connector
floppy_connector
floppy_connector
agnus_copper
rs232
centronics
centronics_printer
printer_image
input_buffer
output_latch
software_list
software_list
software_list
software_list
software_list
software_list
software_list
software_list
amiga_kbd
a600kbd_us
m6500_1
ipt_merge_any_lo
address_map_bank
address_map_bank
gayle
ata_interface
ata_slot
idehd
harddisk_image
ata_slot
pccard
software_list
software_list

biosset

name	description	default
kick204	Kickstart 2.04 (37.175)	no
kick205-299	Kickstart 2.05 (37.299)	no
kick205-300	Kickstart 2.05 (37.300)	no
kick205-350	Kickstart 2.05 (37.350)	yes
kick31	Kickstart 3.1 (40.63)	no
logica2	Logica Diagnostic 2.0	no

sound

channels
3

feature

type	status	overall
graphics	imperfect

device, instance

type	tag	interface	name	briefname
floppydisk	fdc:0:35dd	floppy_3_5	floppydisk	flop
printout	centronics:printer:printer		printout	prin
harddisk	ata:0:hdd:image	ide_hdd,hdd	harddisk	hard

device, extension

type	tag	interface	extension_names
floppydisk	fdc:0:35dd	floppy_3_5	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, adf, ipf
printout	centronics:printer:printer		prn
harddisk	ata:0:hdd:image	ide_hdd,hdd	chd, hd, hdv, 2mg, hdi

input

players	coins	service	tilt
2		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta
joy	1	3	8	no
mouse	1			no	0	255	100	5
keyboard	1	76		no
joy	2	3	8	no
mouse	2			no	0	255	100	5

port, analog

port_tag	analog_masks
:cia_0_port_a
:input
:joy_0_dat
:joy_1_dat
:kbd:a600_us:COLS
:kbd:a600_us:META
:kbd:a600_us:ROW0
:kbd:a600_us:ROW1
:kbd:a600_us:ROW10
:kbd:a600_us:ROW11
:kbd:a600_us:ROW12
:kbd:a600_us:ROW13
:kbd:a600_us:ROW14
:kbd:a600_us:ROW2
:kbd:a600_us:ROW3
:kbd:a600_us:ROW4
:kbd:a600_us:ROW5
:kbd:a600_us:ROW6
:kbd:a600_us:ROW7
:kbd:a600_us:ROW8
:kbd:a600_us:ROW9
:p1_joy
:p1_mouse_x	255
:p1_mouse_y	255
:p2_joy
:p2_mouse_x	255
:p2_mouse_y	255
:potgo

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
fdc:0	35dd	floppy_35_dd	yes
fdc:1	35dd	floppy_35_dd	no
fdc:2	35dd	floppy_35_dd	no
fdc:3	35dd	floppy_35_dd	no
rs232	terminal	serial_terminal	no
rs232	sunkbd	sunkbd_adaptor	no
rs232	dec_loopback	dec_rs232_loopback	no
rs232	ie15	ie15_terminal	no
rs232	null_modem	null_modem	no
rs232	keyboard	serial_keyboard	no
rs232	patch	rs232_patch_box	no
rs232	swtpc8212	swtpc8212_terminal	no
rs232	printer	serial_printer	no
rs232	scorpion	scorpion_ic	no
rs232	loopback	rs232_loopback	no
rs232	mockingboard	mockingboardd	no
rs232	msystems_mouse	rs232_mouse_hle_msystems	no
rs232	nss_tvi	nss_tvinterface	no
rs232	rs232_sync_io	rs232_sync_io	no
rs232	pty	pseudo_terminal	no
rs232	rs_printer	rs_serial_printer	no
centronics	nlq401	nlq401	no
centronics	smartboard	centronics_smartboard	no
centronics	chessmec	centronics_chessmec	no
centronics	samdac	centronics_samdac	no
centronics	covox_stereo	covox_stereo	no
centronics	adaptator	adaptator_multitap	no
centronics	digiblst	cpcdigiblst	no
centronics	lx800	lx800	no
centronics	jx80	epson_jx80	no
centronics	ap2000	ap2000	no
centronics	ex800	ex800	no
centronics	fx80	epson_fx80	no
centronics	rx80	epson_rx80	no
centronics	covox	covox	no
centronics	pl80	comx_pl80	no
centronics	lx810l	lx810l	no
centronics	p72	p72	no
centronics	printer	centronics_printer	yes
kbd	a600_gb	a600kbd_gb	no
kbd	a600_no	a600kbd_no	no
kbd	a600_dk	a600kbd_dk	no
kbd	a600_it	a600kbd_it	no
kbd	a600_se	a600kbd_se	no
kbd	a600_fr	a600kbd_fr	no
kbd	a600_es	a600kbd_es	no
kbd	a600_de	a600kbd_de	no
kbd	a600_ch	a600kbd_ch	no
kbd	a600_us	a600kbd_us	yes
ata:0	px320a	px320a	no
ata:0	zip100	zip100_ide	no
ata:0	cr589	cr589	no
ata:0	cp2024	cp2024	no
ata:0	xm3301	xm3301	no
ata:0	cf	atacf	no
ata:0	cdrom	cdrom	no
ata:0	hdd	idehd	yes
ata:1	px320a	px320a	no
ata:1	zip100	zip100_ide	no
ata:1	cr589	cr589	no
ata:1	cp2024	cp2024	no
ata:1	xm3301	xm3301	no
ata:1	cf	atacf	no
ata:1	cdrom	cdrom	no
ata:1	hdd	idehd	no
pcmcia	sram_4m	centennial_sl04m_15_11194	no
pcmcia	sram_2m	centennial_sl02m_15_11194	no
pcmcia	sram_1m	centennial_sl01m_15_11194	no
pcmcia	melcard_1m	mitsubishi_mf31m1_lycat01	no

configuration

Game Port 0 Device

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Game Port 0 Device	input	16

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Mouse	0	yes
Joystick	16	no

Game Port 1 Device

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Game Port 1 Device	input	32

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Mouse	0	no
Joystick	32	yes
